22320 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000501 - 280999999) (2008) LOADER TOWER, FUEL PUMP AND DRIVE ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

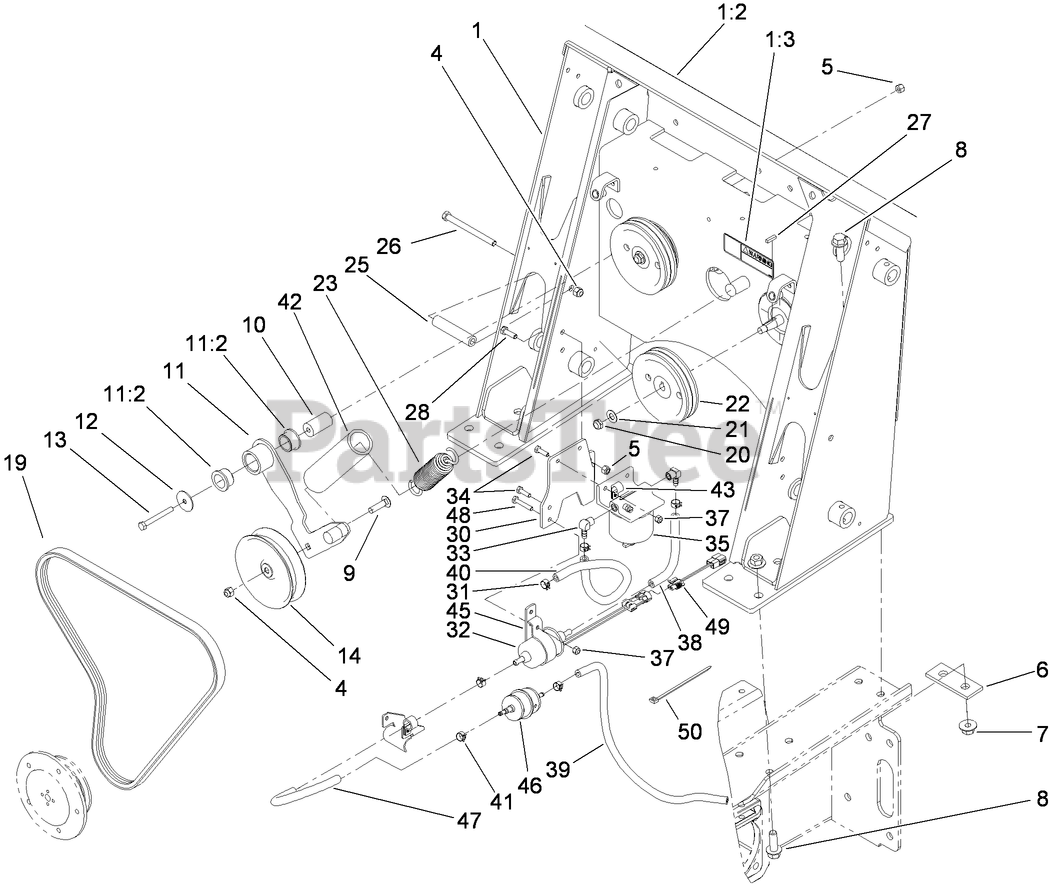

LOADER TOWER, FUEL PUMP AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 115-0763

LOADER TOWER ASM

$

$

Not available

1:2

Toro 112-2469

DECAL-PANEL, CONTROL

$123.99

$

Usually ships in 3-6 days

0

1:3

Toro 80-8040

DECAL-WARNING

$16.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 100-6123-01

PLATE-STIFFENER

$77.99

$

Usually ships in 3-6 days

0

7

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

8

Toro 100-6116

SCREW-HHF

$9.49

$

In Stock, only 1 left!

0

9

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

10

Toro 104-5739

SPACER-MOUNTING

$25.99

$

Usually ships in 3-6 days

0

11

Toro 112-2411

IDLER ARM ASM
(Superseded to 112-2588)

$287.99

$

Usually ships in 3-6 days

0

11:2

Toro 256-132

BUSHING-FLANGE

$8.99

$

In Stock, Qty 5

0

12

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

13

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

14

Toro 95-3707

PULLEY-IDLER

$172.99

$

In Stock, only 1 left!

0

19

Toro 108-6262

V-BELT

$144.99

$

Usually ships in 3-6 days

0

20

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

22

Toro 106-5710-03

PULLEY
(Superseded to 106-5710)

$117.99

$

In Stock, only 2 left!

0

23

Toro 105-0383

SPRING-EXTENSION

$97.99

$

In Stock, only 1 left!

0

25

Toro 100-1271

TUBE-SPACER

$24.99

$

Usually ships in 3-6 days

0

26

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

27

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

28

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 117-1319-01

BRACKET-PUMP, FUEL

$

$

Not available

31

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

32

Toro 110-8806

PUMP-FUEL
(Superseded to 144-4020)

$204.99

$

In Stock, only 1 left!

0

33

Toro 353-781

FITTING-ELBOW

$29.99

$

Usually ships in 3-6 days

0

34

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 63-7650

SEPARATOR-FILTER / WATER

$186.99

$

Usually ships in 3-6 days

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

38

Toro 112-2386

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

39

Toro 110-4103

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

40

Toro 110-4110

HOSE-LP

$9.99

$

Usually ships in 3-6 days

0

41

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

42

Toro 112-2409

RETAINER-SPRING

$25.99

$

Usually ships in 3-6 days

0

43

Toro 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

45

Toro 110-8817

BRACKET-PUMP, FUEL

$26.99

$

Usually ships in 3-6 days

0

46

Toro 112-7836

FILTER-INLINE

$14.99

$

In Stock, Qty 16

0

47

Toro 110-4107

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

48

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

49

Toro 110-8808

HARNESS-WIRE

$39.99

$

Usually ships in 3-6 days

0

50

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
