22320 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000501 - 280999999) (2008) INJECTION PUMP AND GOVERNOR ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

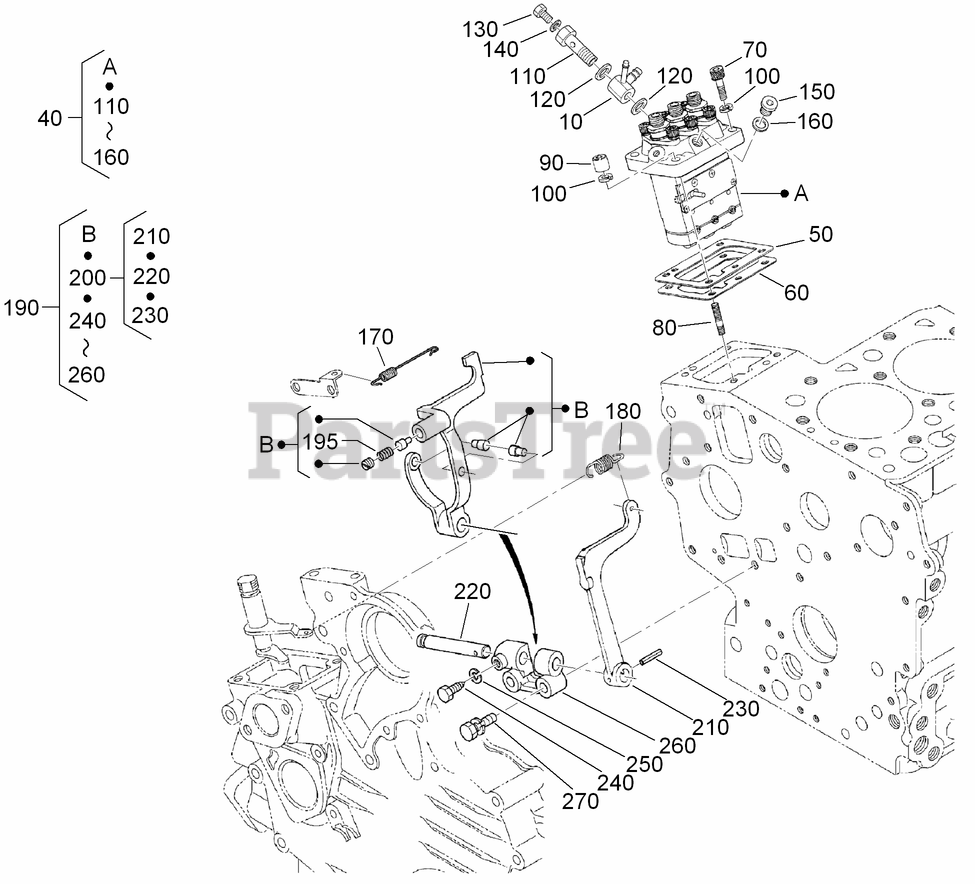

INJECTION PUMP AND GOVERNOR ASSEMBLY Parts Diagram

  • Title
10

$39.99

$

Usually ships in 3-6 days

0

40

Toro 110-3765

INJECTION PUMP ASM

$5481.99

$

Usually ships in 3-6 days

0

50

Toro 115-3045

SHIM-INJECTION (0.175MM)

$15.99

$

In Stock, only 1 left!

0

50

Toro 98-9456

SHIM-INJECTION (0.20MM)

$10.99

$

In Stock, only 1 left!

0

50

Toro 98-9457

SHIM-INJECTION (0.25MM)

$12.99

$

In Stock, only 1 left!

0

60

Toro 115-3046

SHIM-INJECTION (0.35MM)

$16.99

$

Usually ships in 3-6 days

0

60

Toro 98-9458

SHIM-INJECTION (0.30MM)

$18.99

$

In Stock, only 1 left!

0

70

Toro 98-9361

BOLT-HSH

$1.49

$

Usually ships in 3-6 days

0

80

$1.99

$

Usually ships in 3-6 days

0

90

Toro 98-9440

NUT-CAP

$28.99

$

Usually ships in 3-6 days

0

100

Toro 98-7699

WASHER-SPRING

$0.99

$

Usually ships in 3-6 days

0

110

Toro 100-1896

SCREW-HOLLOW

$44.99

$

Usually ships in 3-6 days

0

120

Toro 98-9445

GASKET

$2.99

$

In Stock, only 3 left!

0

130

Toro 98-9430

SCREW

$26.99

$

Usually ships in 3-6 days

0

140

Toro 98-9446

GASKET

$3.99

$

Usually ships in 3-6 days

0

150

$19.99

$

Usually ships in 3-6 days

0

160

Toro 98-9451

GASKET

$2.99

$

Usually ships in 3-6 days

0

170

Toro 110-3766

SPRING-START

$29.99

$

In Stock, Qty 5

0

180

Toro 110-3767

SPRING-GOVERNOR

$14.99

$

In Stock, only 1 left!

0

190

Toro 112-2506

FORK LEVER ASM

$539.99

$

Usually ships in 3-6 days

0

195

Toro 117-0313

SPRING

$30.99

$

Usually ships in 3-6 days

0

200

Toro 100-1905

FORK LEVER ASM

$33.99

$

Usually ships in 3-6 days

0

210

Toro 100-1907

LEVER-FORK

$30.99

$

Usually ships in 3-6 days

0

220

Toro 100-1908

SHAFT-LEVER, FORK

$25.99

$

Usually ships in 3-6 days

0

230

Toro 100-1751

PIN-SPRING

$2.49

$

Usually ships in 3-6 days

0

240

$13.99

$

Usually ships in 3-6 days

0

250

Toro 100-2204

WASHER-SPRING
(Superseded to 127-0408)

$0.99

$

Usually ships in 3-6 days

0

260

Toro 100-1909

HOLDER-LEVER, FORK

$14.99

$

Usually ships in 3-6 days

0

270

$2.49

$

Usually ships in 3-6 days

0
