22320 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000301 - 280000500) (2008) PRINCIPAL HYDRAULIC ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

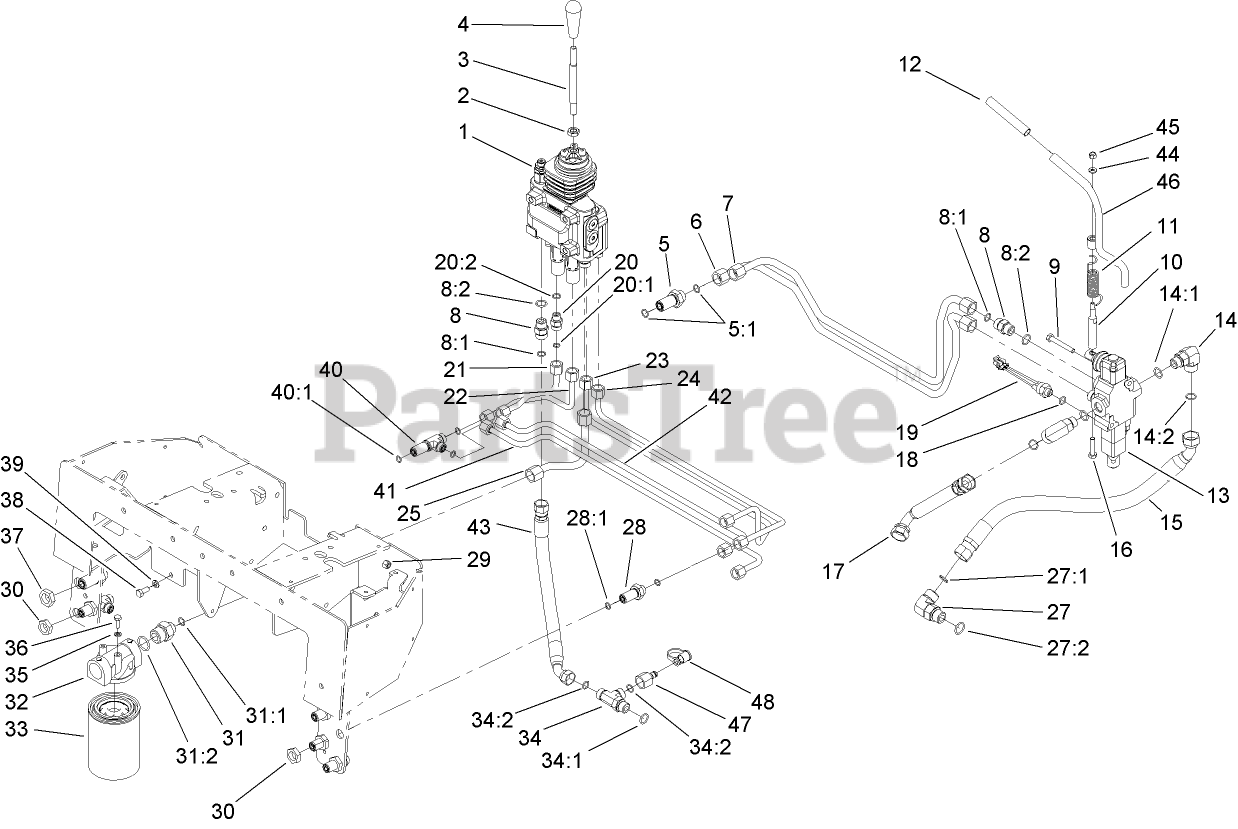

PRINCIPAL HYDRAULIC ASSEMBLY Parts Diagram

  • Title
1

Toro 106-9307

2 SPOOL VALVE ASM
(Superseded to 144-7354)

$2297.99

$

Usually ships in 3-6 days

0

2

$0.99

$

Usually ships in 3-6 days

0

3

Toro 108-4675

SHAFT-HANDLE, LOADER

$74.99

$

Usually ships in 3-6 days

0

4

$13.99

$

Usually ships in 3-6 days

0

5

Toro 340-161

FITTING-BULKHEAD

$117.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

6

Toro 106-9310

TUBE-HYD

$152.99

$

Usually ships in 3-6 days

0

7

Toro 106-9311

TUBE-HYD

$149.99

$

Usually ships in 3-6 days

0

8

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

8:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

8:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

9

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-2827

SPACER-HIFLO

$164.99

$

Usually ships in 3-6 days

0

11

Toro 112-2738

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

12

Toro 112-2605

GRIP-RUBBER

$6.99

$

Usually ships in 3-6 days

0

13

Toro 104-2831

1 SPOOL VALVE ASM

$1748.99

$

Usually ships in 3-6 days

0

14

Toro 340-153

Fitting-Elbow, 90 DEG

$105.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

14:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

15

Toro 112-2561

HYD HOSE ASM

$173.99

$

Usually ships in 3-6 days

0

16

Toro 48-7740

SCREW
(Superseded to 33114-035)

$5.49

$

In Stock, only 1 left!

0

17

Toro 112-2443

HYD HOSE ASM

$320.99

$

Usually ships in 3-6 days

0

18

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

19

Toro 72-4310

SWITCH-BALL

$102.99

$

Usually ships in 3-6 days

0

20

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

20:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

20:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

21

Toro 106-9315

TUBE-HYD

$101.99

$

Usually ships in 3-6 days

0

22

Toro 106-9313

TUBE-HYD

$111.99

$

Usually ships in 3-6 days

0

23

Toro 106-9312

TUBE-HYD

$136.99

$

Usually ships in 3-6 days

0

24

Toro 106-9314

TUBE-HYD

$126.99

$

In Stock, only 1 left!

0

25

Toro 106-9385

TUBE-HYD

$103.99

$

In Stock, only 1 left!

0

27

Toro 340-17

FITTING-ELBOW-90

$61.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

27:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

28

Toro 340-71

FITTING-STRAIGHT, BULKHEAD

$22.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 340-70

NUT-LOCK

$2.99

$

In Stock, only 1 left!

0

31

Toro 100-4240

FITTING-STR

$22.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

31:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

32

Toro 92-5821

HEAD-FILTER

$199.99

$

Usually ships in 3-6 days

0

33

Toro 86-3010

FILTER-OIL

$23.99

$

In Stock, Qty 11

0

34

Toro 340-109

FITTING-TEE

$72.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

34:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

35

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

38

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 340-68

FITTING-TEE, BULKHEAD

$52.99

$

In Stock, only 2 left!

0

40:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

41

Toro 106-9316

TUBE-HYD

$133.99

$

Usually ships in 3-6 days

0

42

Toro 106-9317

TUBE-HYD

$127.99

$

Usually ships in 3-6 days

0

43

Toro 112-2560

HYD HOSE ASM

$124.99

$

Usually ships in 3-6 days

0

44

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

45

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

46

Toro 112-2739

LEVER-AUXILIARY

$52.99

$

Usually ships in 3-6 days

0

47

Toro 100-5616

FITTING

$82.99

$

Usually ships in 3-6 days

0

48

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0
