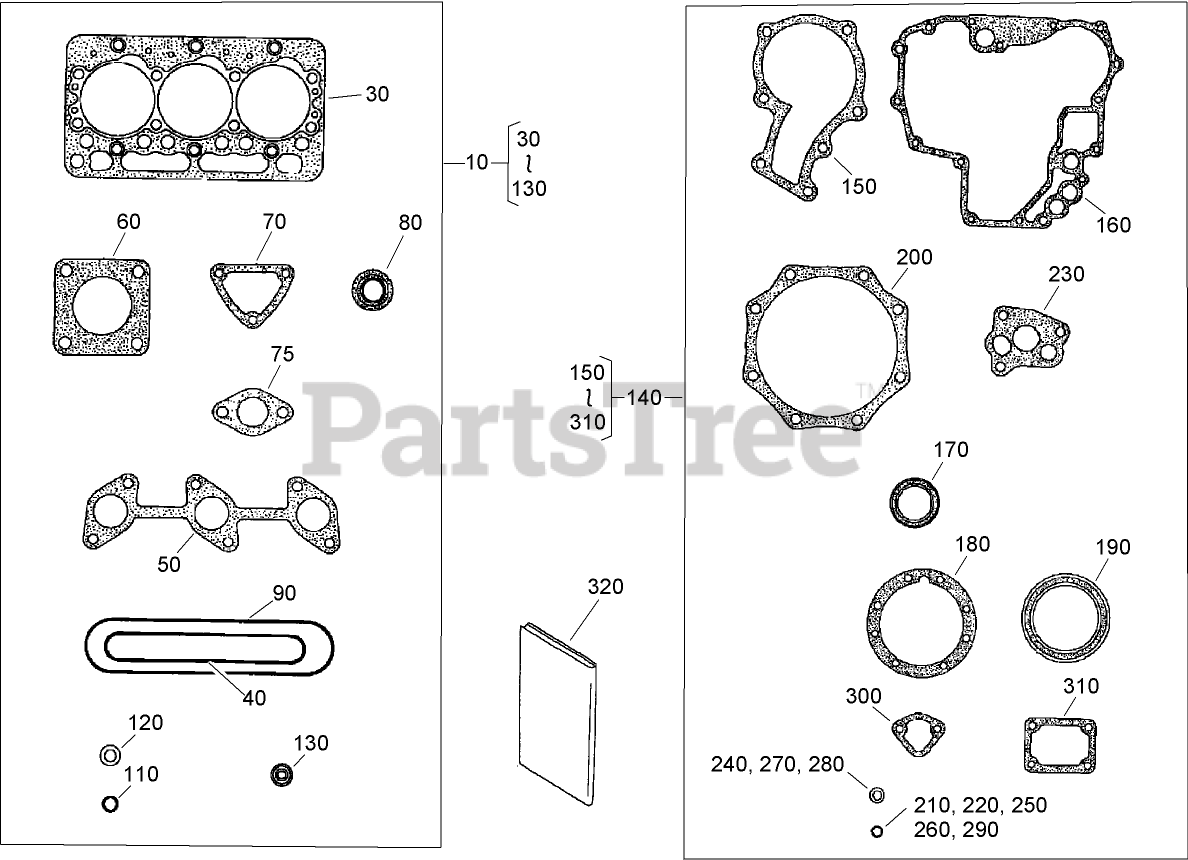

22319 (TX 525) - Toro Dingo Compact Utility Loader (SN: 270000401 - 270999999) (2007) GASKET KITS AND OPERATOR MANUAL Parts Diagram

Dingo Compact Utility Loader

GASKET KITS AND OPERATOR MANUAL Parts Diagram

  • Title

10

Toro 112-2518

UPPER GASKET KIT

$395.99

$

Usually ships in 3-6 days

0

30

Toro 112-2520

GASKET-HEAD, CYLINDER

$179.99

$

Usually ships in 3-6 days

0

40

Toro 110-3838

GASKET-MANIFOLD, INTAKE

$14.99

$

Usually ships in 3-6 days

0

50

Toro 110-3840

GASKET-MANIFOLD, EXHAUST

$8.99

$

Usually ships in 3-6 days

0

60

Toro 100-1984

GASKET-MUFFLER
(Superseded to 99-8343)

$17.99

$

In Stock, Qty 7

0

70

Toro 110-3820

GASKET-FLANGE, WATER

$3.99

$

Usually ships in 3-6 days

0

75

Toro 105-3748

GASKET-THERMOSTAT

$6.49

$

In Stock, Qty 12

0

80

Toro 100-1797

SEAL-STEM, VALVE

$10.99

$

Usually ships in 3-6 days

0

90

Toro 112-2521

GASKET-COVER, HEAD

$17.99

$

Usually ships in 3-6 days

0

110

Toro 98-7430

O-RING

$3.49

$

Usually ships in 3-6 days

0

120

Toro 98-7676

GASKET

$4.49

$

In Stock, Qty 5

0

130

Toro 98-7677

SEAL-HEAT

$14.99

$

In Stock, Qty 5

0

140

Toro 110-3847

LOWER GASKET KIT

$430.99

$

Usually ships in 3-6 days

0

150

Toro 100-1976

GASKET-PUMP, WATER
(Superseded to 117-8846)

$17.99

$

In Stock, only 1 left!

0

160

Toro 110-3709

GASKET-GEARCASE

$232.99

$

Usually ships in 3-6 days

0

170

Toro 100-1971

SEAL-OIL
(Superseded to 120-7852)

$58.99

$

In Stock, only 2 left!

0

180

Toro 112-2812

GASKET-CASE, BEARING

$

$

Not available

190

Toro 110-3724

SEAL-OIL

$68.99

$

Usually ships in 3-6 days

0

200

Toro 100-1876

GASKET-COVER, CASE

$18.99

$

Usually ships in 3-6 days

0

210

Toro 100-2206

O-RING

$8.99

$

Usually ships in 3-6 days

0

220

Toro 100-2209

O-RING

$12.99

$

Usually ships in 3-6 days

0

230

Toro 100-2003

GASKET-PUMP, OIL

$8.49

$

Usually ships in 3-6 days

0

240

Toro 98-7654

GASKET

$14.99

$

Usually ships in 3-6 days

0

250

Toro 100-2208

O-RING

$4.49

$

Usually ships in 3-6 days

0

260

Toro 100-2207

O-RING

$4.49

$

Usually ships in 3-6 days

0

270

Toro 98-7654

GASKET

$14.99

$

Usually ships in 3-6 days

0

280

Toro 112-2519

GASKET
(Superseded to 110-9715)

$6.99

$

Usually ships in 3-6 days

0

290

Toro 105-3776

O-RING

$9.49

$

Usually ships in 3-6 days

0

300

Toro 98-9636

GASKET-PUMP, FUEL

$4.49

$

Usually ships in 3-6 days

0

310

Toro 100-1962

GASKET-PLATE, CONTROL

$9.49

$

In Stock, only 1 left!

0

320

Toro 112-2522

MANUAL-OPERATOR

$

$

Currently unavailable
