22319 (TX 525) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270000400) (2007) VALVE AND ROCKER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

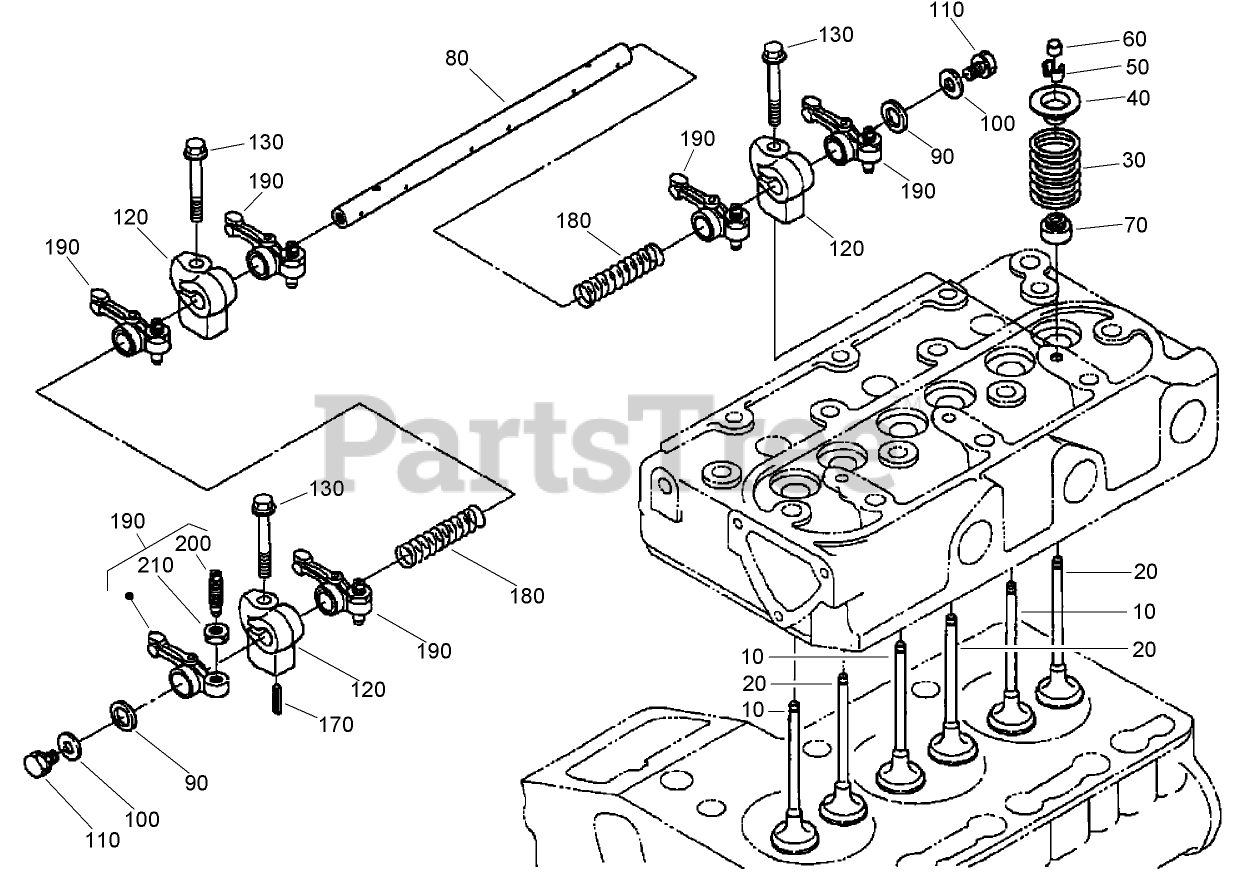

VALVE AND ROCKER ARM ASSEMBLY Parts Diagram

  • Title

10

Toro 112-2514

VALVE-INLET

$64.99

$

Usually ships in 3-6 days

0

20

Toro 112-2515

VALVE-EXHAUST

$46.99

$

Usually ships in 3-6 days

0

30

Toro 100-1823

SPRING-VALVE

$9.49

$

Usually ships in 3-6 days

0

40

Toro 100-1825

RETAINER-SPRING, VALVE

$12.99

$

Usually ships in 3-6 days

0

50

Toro 100-1826

COLLET-SPRING, VALVE
(Superseded to 120-3136)

$17.99

$

Usually ships in 3-6 days

0

60

Toro 100-2155

CAP-VALVE

$13.99

$

Usually ships in 3-6 days

0

70

Toro 100-1797

SEAL-STEM, VALVE

$9.99

$

Usually ships in 3-6 days

0

80

Toro 110-3831

SHAFT-ARM, ROCKER

$102.99

$

Usually ships in 3-6 days

0

90

Toro 100-2044

WASHER

$8.99

$

Usually ships in 3-6 days

0

100

Toro 110-3832

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

110

Toro 100-1762

BOLT

$2.99

$

Usually ships in 3-6 days

0

120

Toro 110-3833

BRACKET-ARM, ROCKER

$40.99

$

Usually ships in 3-6 days

0

130

Toro 110-3834

BOLT-FLANGE

$4.99

$

Usually ships in 3-6 days

0

170

Toro 98-7602

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

180

Toro 110-3835

SPRING

$5.99

$

Usually ships in 3-6 days

0

190

Toro 100-1884

ROCKER ARM ASM

$51.99

$

Usually ships in 3-6 days

0

200

Toro 100-1885

SCREW-ADJUSTING

$8.99

$

Usually ships in 3-6 days

0

210

Toro 100-1827

NUT

$2.49

$

Usually ships in 3-6 days

0
