22319 (TX 525) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270000400) (2007) RADIATOR AND AIR CLEANER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

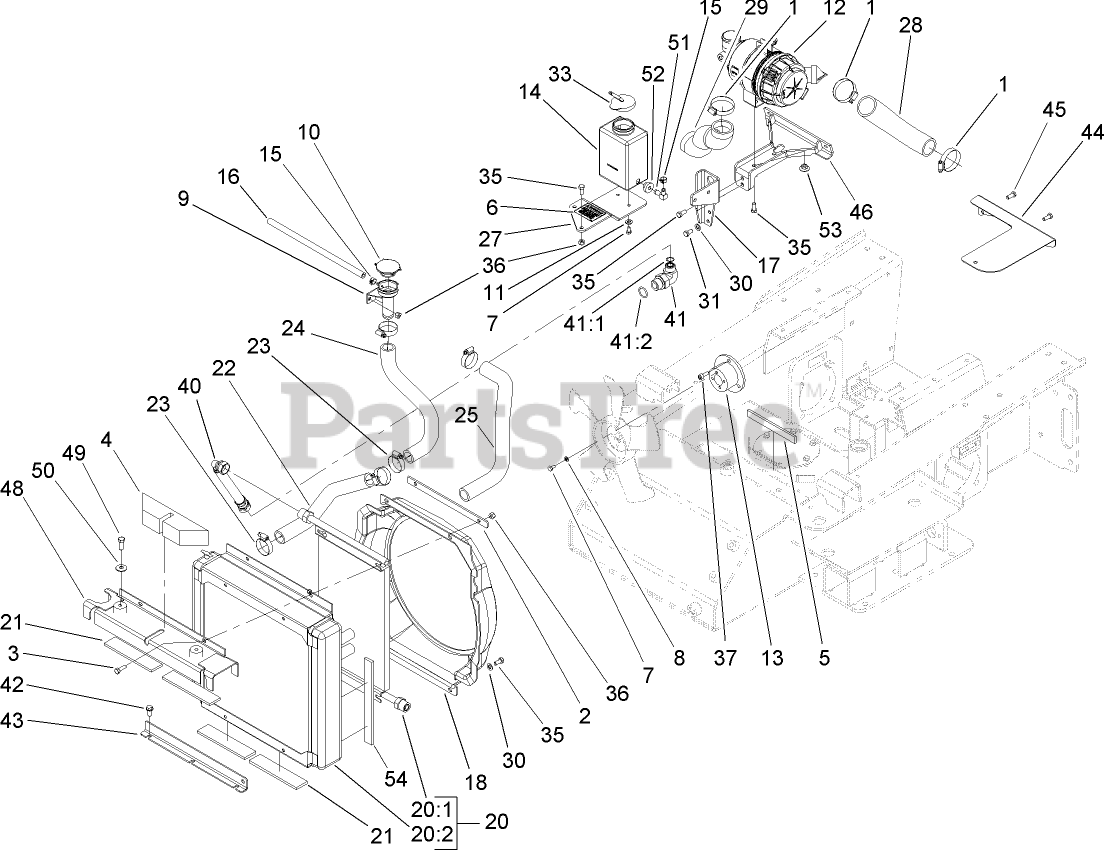

RADIATOR AND AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

2

Toro 108-6395-03

PLATE-BACKING

$18.99

$

Usually ships in 3-6 days

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 108-6372

SEAL-FOAM

$62.99

$

Usually ships in 3-6 days

0

5

Toro 112-2466

PAD-RUBBER

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-2472

DECAL-RADIATOR, FILL

$

$

Not available

7

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 108-6312

TUBE-FILLER, RADIATOR
(Superseded to 139-0772)

$66.99

$

In Stock, only 1 left!

0

10

Toro 93-5957

CAP-RADIATOR

$21.99

$

In Stock, only 3 left!

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 99-3160

AIR CLEANER ASM

$341.99

$

Usually ships in 3-6 days

0

13

Toro 108-6207-03

SPACER-FAN, MOUNT
(Superseded to 112-2576-03)

$141.99

$

In Stock, only 1 left!

0

14

Toro 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

15

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

16

Toro 110-4110

HOSE-LP

$9.99

$

Usually ships in 3-6 days

0

17

Toro 107-3645-03

MOUNT-FILTER, AIR

$91.99

$

Usually ships in 3-6 days

0

18

Toro 108-6347

SHROUD-FAN

$306.99

$

Usually ships in 3-6 days

0

20

Toro 106-9596

RADIATOR AND OIL COOLER ASM

$

$

Not available

20:1

Toro 106-9597

COOLER-OIL, HYD
(Superseded to 139-0775)

$737.99

$

Usually ships in 3-6 days

0

20:2

Toro 106-9595

RADIATOR
(Superseded to 139-0774)

$2172.99

$

Usually ships in 3-6 days

0

21

Toro 112-2401

PAD-RUBBER

$9.99

$

Usually ships in 3-6 days

0

22

Toro 108-6309

HOSE-RADIATOR

$59.99

$

Usually ships in 3-6 days

0

23

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

24

Toro 108-6310

HOSE-RADIATOR

$64.99

$

Usually ships in 3-6 days

0

25

Toro 112-2459

HOSE-RADIATOR

$59.99

$

Usually ships in 3-6 days

0

27

Toro 112-2458-03

BRACKET-TANK, OVERFLOW

$55.99

$

Usually ships in 3-6 days

0

28

Toro 108-6336

HOSE-AIR, INLET

$59.99

$

Usually ships in 3-6 days

0

29

Toro 112-2431

HOSE-AIR

$68.99

$

Usually ships in 3-6 days

0

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

33

Toro 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 3 left!

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 108-6343

SCREW-CAP, HSH

$6.49

$

Usually ships in 3-6 days

0

40

Toro 112-2442

HYD HOSE ASM

$297.99

$

Usually ships in 3-6 days

0

41

Toro 340-139

FITTING-ELBOW 90

$170.99

$

Usually ships in 3-6 days

0

41:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

41:2

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

42

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

43

Toro 108-6397-03

MOUNT-RADIATOR

$44.99

$

Usually ships in 3-6 days

0

44

Toro 108-6362

PLATE-BAFFLE, STARTER

$84.99

$

Usually ships in 3-6 days

0

45

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

46

Toro 108-6390-03

BRACKET ASM

$234.99

$

Usually ships in 3-6 days

0

48

Toro 112-2440-03

BRACKET-RADIATOR

$239.99

$

Usually ships in 3-6 days

0

49

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

50

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

51

Toro 1-643259

FITTING-ELBOW
(Superseded to 46-6550)

$41.99

$

Usually ships in 3-6 days

0

52

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

53

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

54

Toro 112-2529

FOAM-SEAL

$8.99

$

Usually ships in 3-6 days

0
