22318 (323) - Toro Dingo Compact Utility Loader (SN: 405710000 - 409342968) Four Spool Valve and Lever Assembly Parts Diagram

Dingo Compact Utility Loader

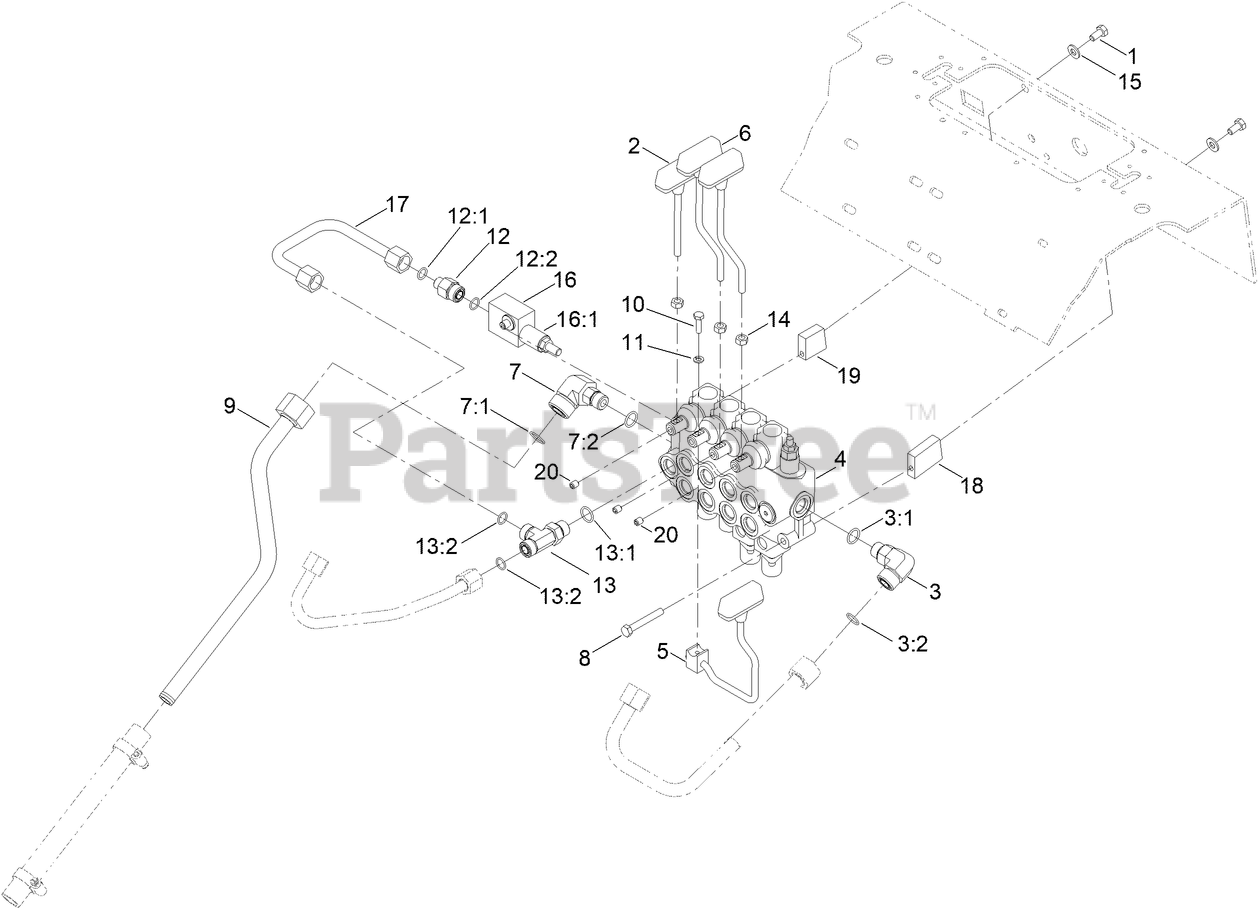

Four Spool Valve and Lever Assembly Parts Diagram

  • Title
1

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 105-7881

LEVER-CYLINDER

$81.99

$

Usually ships in 3-6 days

0

3

Toro 340-153

FITTING-ELBOW, 90 DEG

$105.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

3:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

4

Toro 105-8377

HYD FOUR SPOOL VALVE ASM

$5358.99

$

Usually ships in 3-6 days

0

5

Toro 106-8165

LEVER-CONTROL

$187.99

$

Usually ships in 3-6 days

0

6

Toro 104-5733

LEVER-DRIVE

$104.99

$

Usually ships in 3-6 days

0

7

Toro 92-5696

FITTING-ELBOW, 90 DEG

$151.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

7:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

8

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-8177

TUBE-TANK, HYD

$123.99

$

Usually ships in 3-6 days

0

10

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 340-5

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

12:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

13

Toro 340-109

FITTING-TEE

$72.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

13:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

14

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

15

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

16

Toro 105-7882

RELIEF VALVE ASM

$576.99

$

Usually ships in 3-6 days

0

16:1

Toro 105-8358

CARTRIDGE-VALVE, RELIEF

Note: Not illustrated

$261.99

$

Usually ships in 3-6 days

0

16:2

Toro 105-8357

SEAL KIT

Note: Not illustrated

$104.99

$

Usually ships in 3-6 days

0

17

Toro 108-4717

TUBE-HYD

$105.99

$

Usually ships in 3-6 days

0

18

Toro 108-4728

SPACER V

$79.99

$

Usually ships in 3-6 days

0

19

Toro 105-7870

SPACER-UPPER V

$69.99

$

Usually ships in 3-6 days

0

20

Toro 105-4068

SCREW-SET, HSH

$15.99

$

Usually ships in 3-6 days

0
