22318 (323) - Toro Dingo Compact Utility Loader (SN: 404320000 - 405709999) Thigh Support Assembly Parts Diagram

Dingo Compact Utility Loader

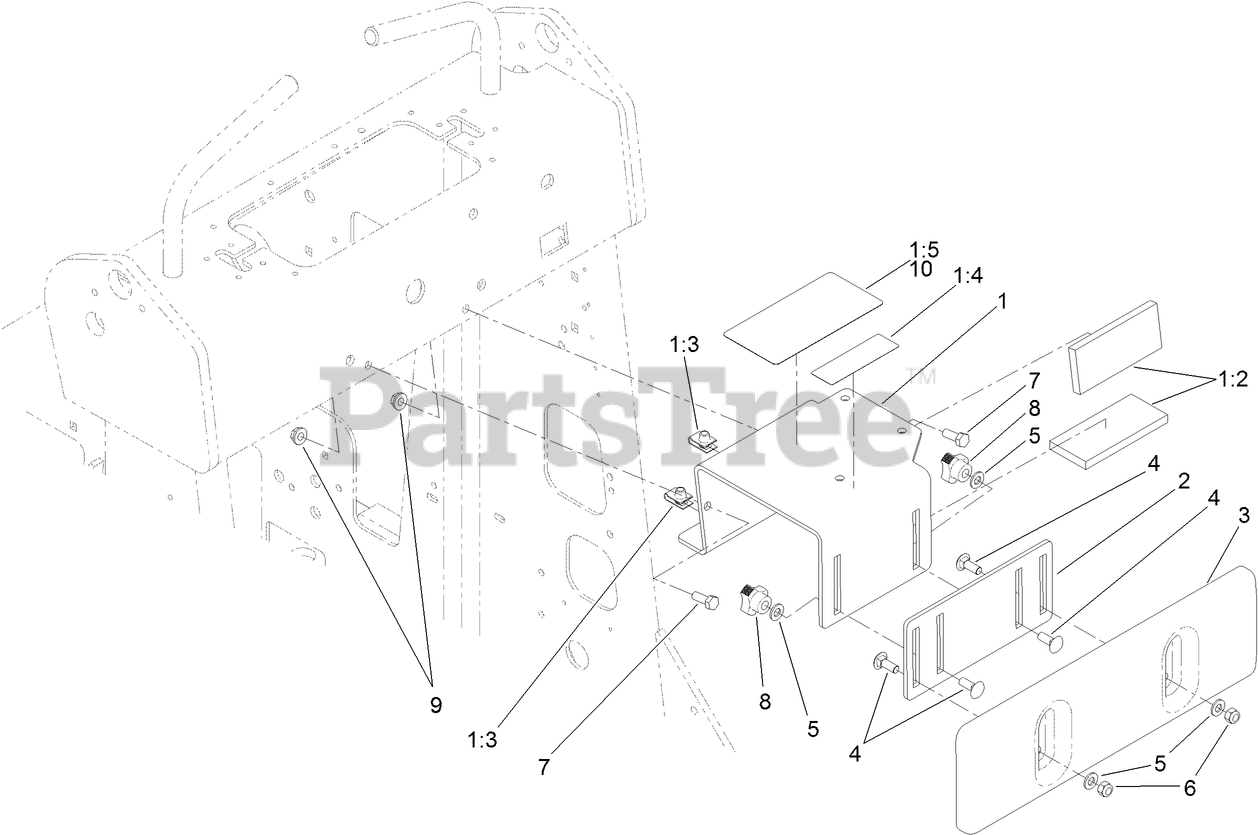

Thigh Support Assembly Parts Diagram

  • Title

1

Toro 117-1813

THIGH SUPPORT BRACKET ASM

$157.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-1798

PAD-FOAM

$3.99

$

Usually ships in 3-6 days

0

1:3

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

1:4

Toro 104-6108

DECAL-MANUAL

$28.99

$

Usually ships in 3-6 days

0

1:5

Toro 136-5776

DECAL-SERVICE

$

$

Not available

2

Toro 105-0337-03

PLATE-ADJUSTING

$45.99

$

Usually ships in 3-6 days

0

3

Toro 105-0333

SUPPORT-THIGH

$109.99

$

In Stock, only 3 left!

0

4

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

5

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 16

0

6

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-6156

KNOB-ADJUSTMENT

$33.99

$

Usually ships in 3-6 days

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 136-5777

DECAL- SERVICE FRENCH

$

$

Currently unavailable

10

Toro 136-5778

DECAL-SERVICE, GERMAN

$

$

Currently unavailable

10

Toro 136-5779

DECAL-SERVICE, SPANISH

$

$

Currently unavailable

10

Toro 136-5780

DECAL-SERVICE, ITALIAN

$

$

Currently unavailable

10

Toro 136-5781

DECAL-SERVICE, DUTCH

$

$

Currently unavailable

10

Toro 136-5782

DECAL-SERVICE, POLISH

$

$

Currently unavailable

10

Toro 136-5783

DECAL-SERVICE, RUSSIAN

$

$

Currently unavailable

10

Toro 136-5784

DECAL-SERVICE, SLOVAKIAN

$3.23

$

Usually ships in 3-6 days

0
