22318 (323) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) HYDRAULIC MOTOR ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

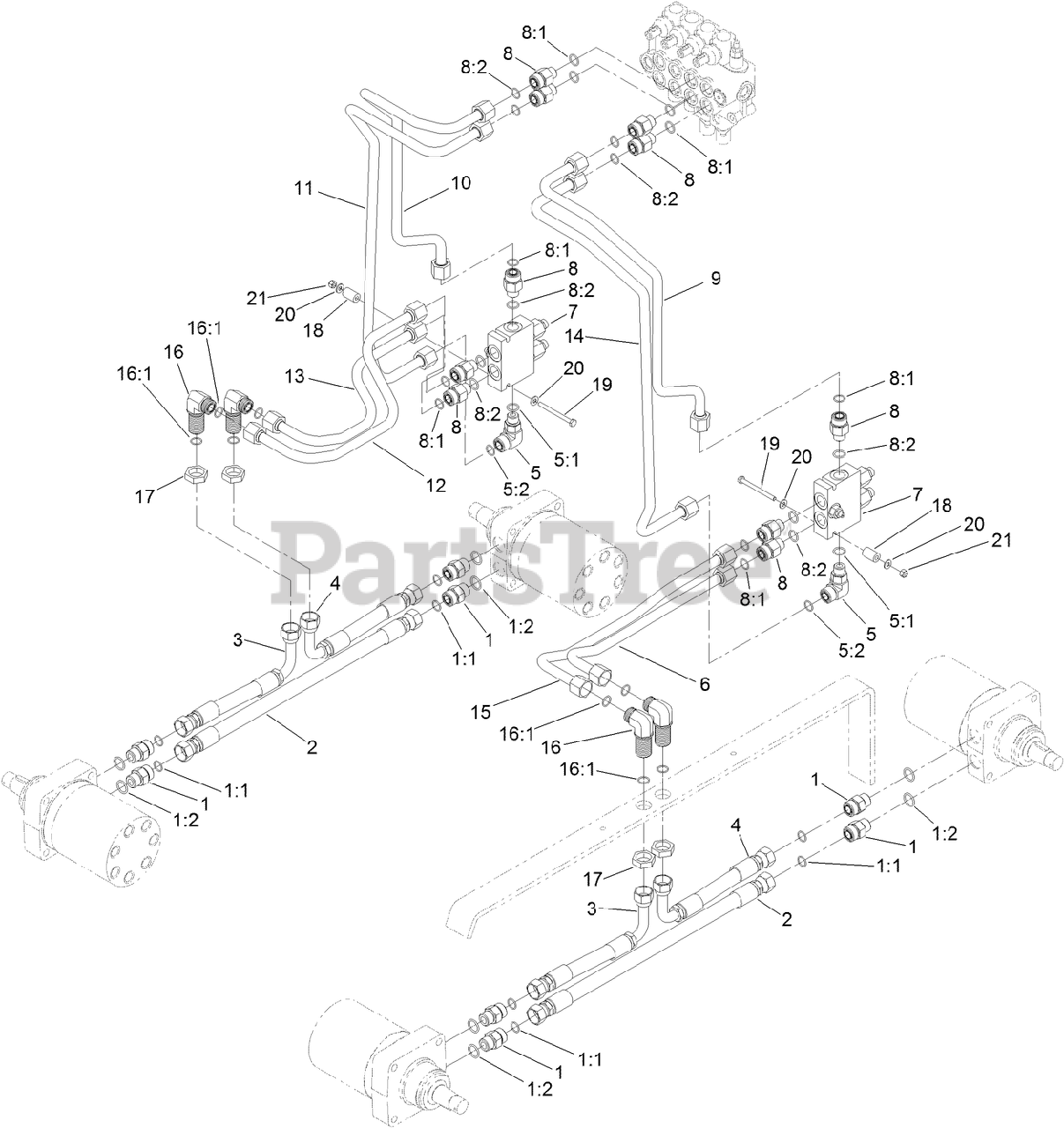

HYDRAULIC MOTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

1:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

1:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

2

Toro 99-3012

HYD HOSE ASM

$324.99

$

Usually ships in 3-6 days

0

3

Toro 99-3010

HYD HOSE ASM

$365.99

$

Usually ships in 3-6 days

0

4

Toro 99-3011

HYD HOSE ASM

$365.99

$

Usually ships in 3-6 days

0

5

Toro 340-153

Fitting-Elbow, 90 DEG

$100.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

5:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

6

Toro 99-3022

HYD TUBE ASM

$99.99

$

Usually ships in 3-6 days

0

7

Toro 99-3040

HYD COUNTERBALANCE VALVE ASM

$1790.99

$

Usually ships in 3-6 days

0

8

Toro 340-155

FITTING-STR

$29.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

8:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

9

Toro 108-9729

HYD TUBE ASM

$158.99

$

Usually ships in 3-6 days

0

10

Toro 108-9727

HYD TUBE ASM

$176.99

$

Usually ships in 3-6 days

0

11

Toro 108-9726

HYD TUBE ASM

$174.99

$

Usually ships in 3-6 days

0

12

Toro 99-3025

HYD TUBE ASM

$104.99

$

Usually ships in 3-6 days

0

13

Toro 99-3028

HYD TUBE ASM

$99.99

$

Usually ships in 3-6 days

0

14

Toro 108-9725

HYD TUBE ASM

$170.99

$

Usually ships in 3-6 days

0

15

Toro 99-3026

HYD TUBE ASM

$104.99

$

Usually ships in 3-6 days

0

16

Toro 340-72

FITTING-BULKHEAD, 90 DEG

$53.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

17

Toro 340-74

NUT-LOCK, BULKHEAD

$5.49

$

Usually ships in 3-6 days

0

18

Toro 99-3057

SPACER-VALVE

$17.99

$

Usually ships in 3-6 days

0

19

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
