22318 (323) - Toro Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

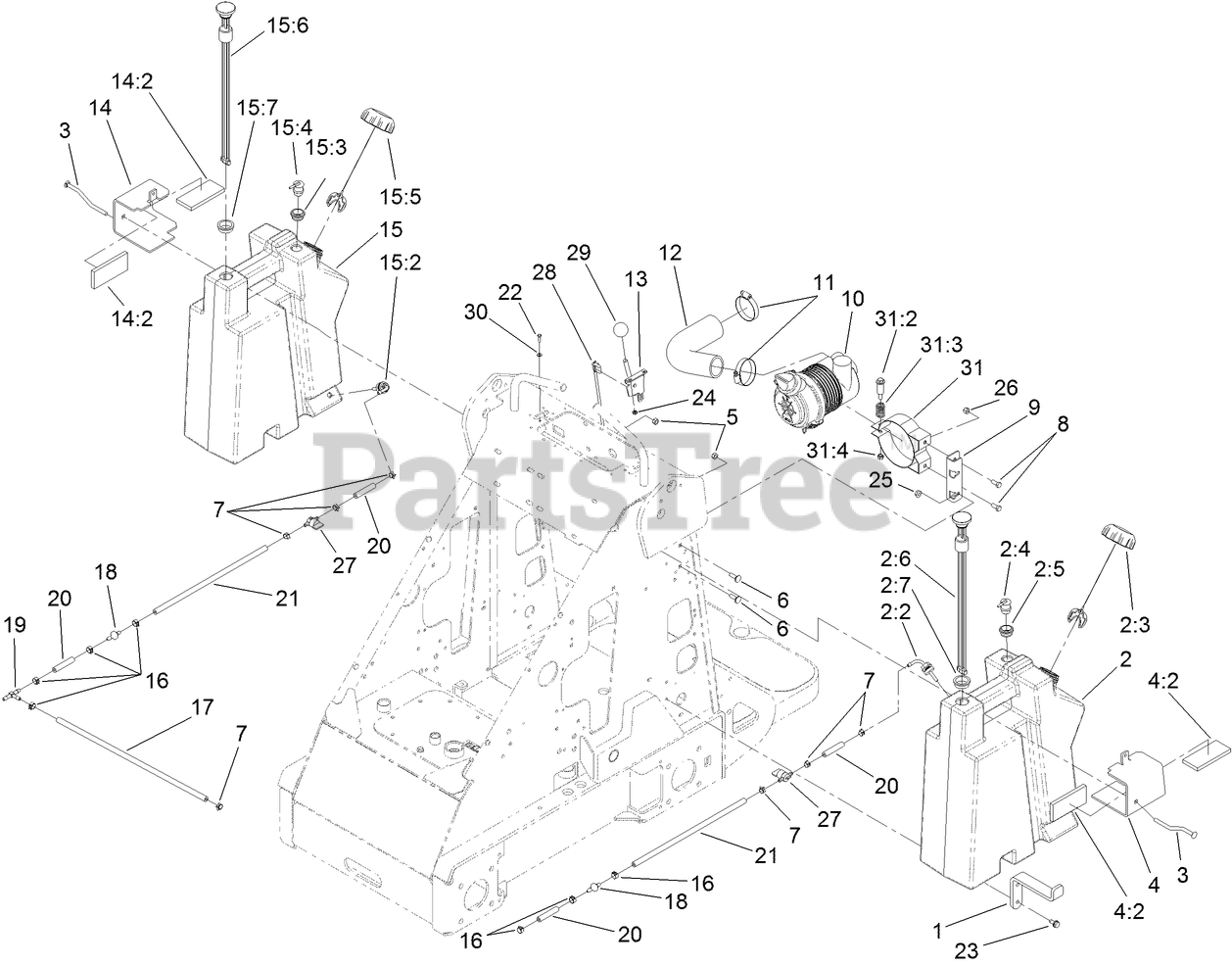

FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 117-1777-03

MOUNT-TANK, BOTTOM

$36.99

$

Usually ships in 3-6 days

0

2

Toro 119-5240

LH FUEL TANK ASM

$643.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

2:3

Toro 115-7788

CAP-FUEL
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

2:4

Toro 114-0285

VALVE-ROLLOVER

$18.99

$

In Stock, only 1 left!

0

2:5

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

2:6

Toro 104-5603

GAUGE-LEVEL, FUEL

$209.99

$

In Stock, only 1 left!

0

2:7

Toro 95-8972

GROMMET

$11.99

$

In Stock, only 1 left!

0

3

Toro 98-4657

BOLT-MOUNT

$41.99

$

Usually ships in 3-6 days

0

4

Toro 117-1801

LH TANK MOUNT ASM

$88.99

$

Usually ships in 3-6 days

0

4:2

Toro 117-1798

PAD-FOAM

$3.99

$

Usually ships in 3-6 days

0

5

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

6

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 99-3080-03

MOUNT-CLEANER, AIR

$83.99

$

Usually ships in 3-6 days

0

10

Toro 117-9989

AIR CLEANER ASM

$202.99

$

Usually ships in 3-6 days

0

11

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

12

Toro 99-3148

HOSE-AIR

$157.99

$

Usually ships in 3-6 days

0

13

Toro 108-9730

LEVER-CONTROL

$42.99

$

In Stock, only 1 left!

0

14

Toro 117-1802

RH TANK MOUNT ASM

$88.99

$

Usually ships in 3-6 days

0

14:2

Toro 117-1798

PAD-FOAM

$3.99

$

Usually ships in 3-6 days

0

15

Toro 119-5241

RH FUEL TANK ASM

$643.99

$

Usually ships in 3-6 days

0

15:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

15:3

Toro 115-7788

CAP-FUEL
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

15:4

Toro 114-0285

VALVE-ROLLOVER

$18.99

$

In Stock, only 1 left!

0

15:5

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

15:6

Toro 104-5603

GAUGE-LEVEL, FUEL

$209.99

$

In Stock, only 1 left!

0

15:7

Toro 95-8972

GROMMET

$11.99

$

In Stock, only 1 left!

0

16

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

17

Toro 110-5701

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

18

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

19

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

20

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

21

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

22

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

24

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

28

Toro 108-4718

CABLE-CONTROL

$22.99

$

In Stock, only 1 left!

0

29

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

30

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 93-2191

AIR CLEANER MOUNTING BAND ASM

$67.99

$

Usually ships in 3-6 days

0

31:2

Toro 94-3653

BOLT

$24.99

$

Usually ships in 3-6 days

0

31:3

Toro 94-3654

SPRING

$14.99

$

Usually ships in 3-6 days

0

31:4

Toro 48-9510

NUT
(Superseded to 33024-00)

$0.99

$

Usually ships in 3-6 days

0
