22318 (323) - Toro Dingo Compact Utility Loader (SN: 310000001 - 310999999) (2010) FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

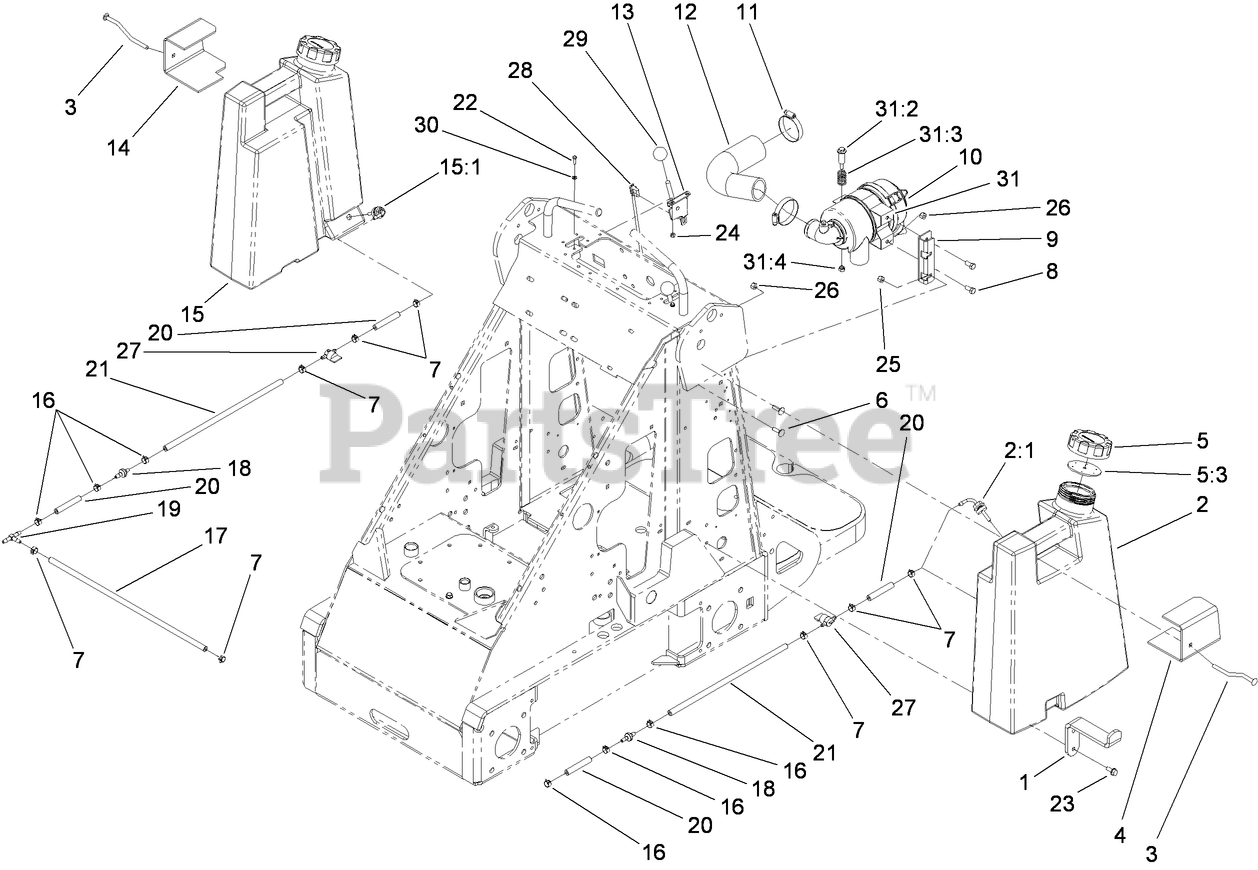

FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$38.99

$

Usually ships in 3-6 days

0

2

Toro 105-8439

LH Fuel Tank ASM

$629.99

$

Usually ships in 3-6 days

0

2:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 4 left!

0

3

Toro 98-4657

BOLT-MOUNT

$43.99

$

Usually ships in 3-6 days

0

4

Toro 99-1444-03

PLATE-MOUNT, LEFT

$81.99

$

In Stock, only 1 left!

0

5

Toro 104-7418

CAP-FUEL, GAS

$54.99

$

In Stock, only 1 left!

0

5:3

Toro 104-7420

GASKET-VENTED

$36.99

$

Usually ships in 3-6 days

0

6

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 99-3080-03

MOUNT-CLEANER, AIR

$87.99

$

Usually ships in 3-6 days

0

10

Toro 117-9989

AIR CLEANER ASM

$212.99

$

Usually ships in 3-6 days

0

11

Toro 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0

12

Toro 99-3148

HOSE-AIR

$165.99

$

Usually ships in 3-6 days

0

13

Toro 108-9730

LEVER-CONTROL

$44.99

$

In Stock, Qty 7

0

14

Toro 98-4655-03

PLATE-MOUNT

$73.99

$

Usually ships in 3-6 days

0

15

Toro 105-8440

RH Fuel Tank ASM

$635.99

$

Usually ships in 3-6 days

0

15:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 4 left!

0

16

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

17

Toro 110-5701

HOSE-FUEL

$17.99

$

In Stock, only 2 left!

0

18

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, Qty 13

0

19

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 1 left!

0

20

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 5

0

21

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

22

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

28

Toro 108-4718

CABLE-CONTROL

$24.99

$

In Stock, only 2 left!

0

29

Toro 233-42

KNOB

$13.99

$

In Stock, Qty 5

0

30

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 93-2191

AIR CLEANER MOUNTING BAND ASM

$68.99

$

Usually ships in 3-6 days

0

31:2

Toro 94-3653

BOLT

$25.99

$

Usually ships in 3-6 days

0

31:3

Toro 94-3654

SPRING

$15.99

$

Usually ships in 3-6 days

0

31:4

Toro 48-9510

NUT
(Superseded to 33024-00)

$0.99

$

Usually ships in 3-6 days

0
