22318 (323) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) HYDRAULIC VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

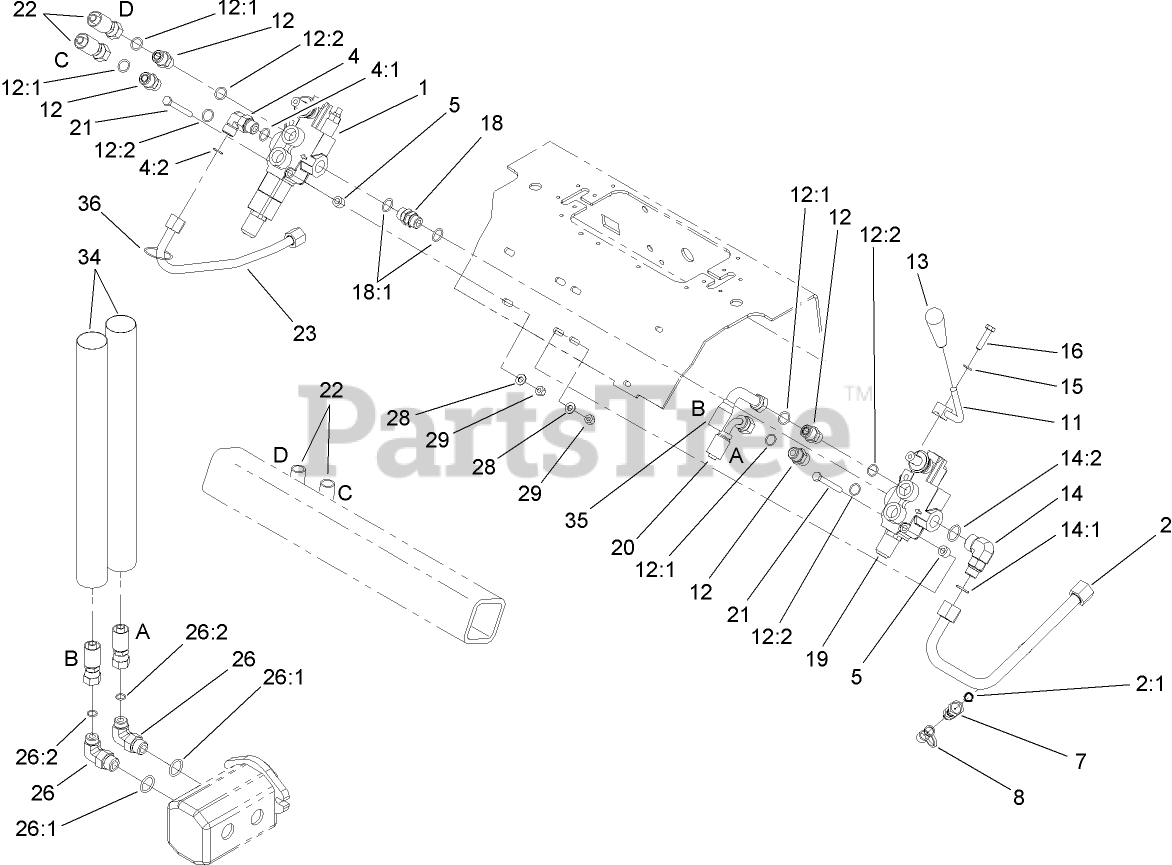

HYDRAULIC VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3077

VALVE-HYD, AUXILIARY

$1989.99

$

Usually ships in 3-6 days

0

2

Toro 108-4716

HYD TUBE ASM

$195.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

4

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

4:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

4:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

5

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

7

Toro 86-5480

NIPPLE-TEST

$83.99

$

Usually ships in 3-6 days

0

8

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

11

Toro 108-9709-03

LEVER-CONTROL

$106.99

$

Usually ships in 3-6 days

0

12

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

13

Toro 98-0152

KNOB-TAPERED

$27.99

$

Usually ships in 3-6 days

0

14

Toro 340-153

Fitting-Elbow, 90 DEG

$110.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

14:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 33114-035

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

18

Toro 95-3209

FITTING-THREAD, STRAIGHT

$27.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

19

Toro 99-3072

VALVE-SELECTOR, HYD

$1078.99

$

Usually ships in 3-6 days

0

20

Toro 98-4747

HOSE-HYD

$282.99

$

Usually ships in 3-6 days

0

21

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

22

Toro 100-8817

HOSE-HYD

$423.99

$

Usually ships in 3-6 days

0

23

Toro 105-7879

TUBE-HYD

$110.99

$

Usually ships in 3-6 days

0

26

Toro 340-105

FITTING-ELBOW 90

$44.99

$

In Stock, only 1 left!

0

26:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

26:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 100-8818

SLEEVE-GUARD, HOSE
(Superseded to 108-9715)

$48.99

$

Usually ships in 3-6 days

0

35

Toro 99-3008

HOSE-HYD

$269.99

$

Usually ships in 3-6 days

0

36

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
