22318 (323) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH23S-76549 Parts Diagram

Dingo Compact Utility Loader

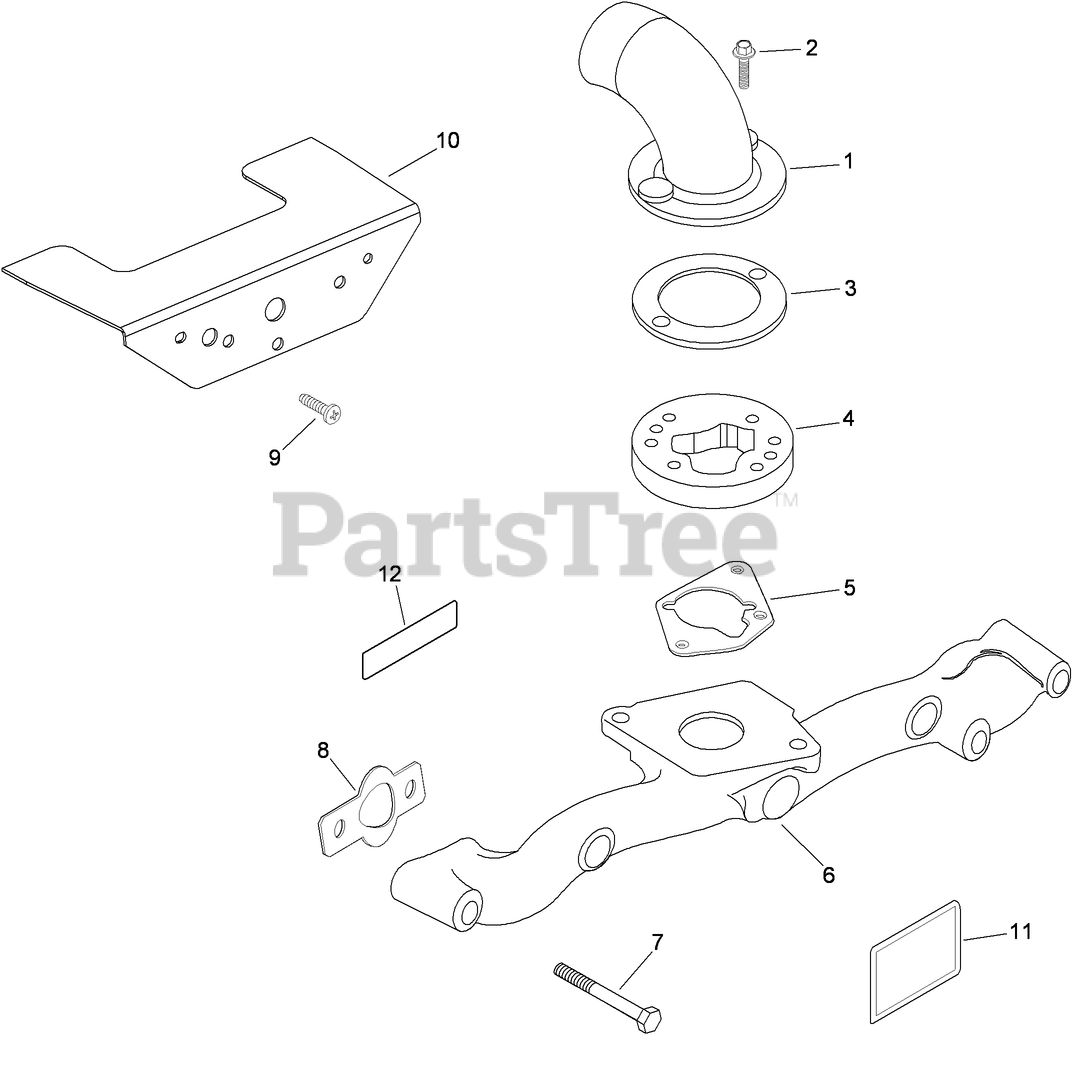

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH23S-76549 Parts Diagram

  • Title

1

Kohler 24 029 21-S

Adapter-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$139.99

$

Usually ships in 2-5 days

0

2

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

3

Kohler 24 041 34-S

Gasket-Adapter

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 24 029 31-S

Adapter
(Superseded to 24 029 68-S)

Note: Obtain parts from www.kohlerplus.com

$183.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

6

Kohler 24 164 14-S

Manifold-Intake

Note: Obtain parts from www.kohlerplus.com

$229.99

$

Usually ships in 2-5 days

0

7

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

8

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

9

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

10

Kohler 24 314 25-S

Shield-Debris

Note: Obtain parts from www.kohlerplus.com

$44.99

$

Usually ships in 2-5 days

0

11

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 146 25-S

Decal-22HP
(Superseded to 24 113 96-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
