22317 (220) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) LOADER AND QUICK ATTACH ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

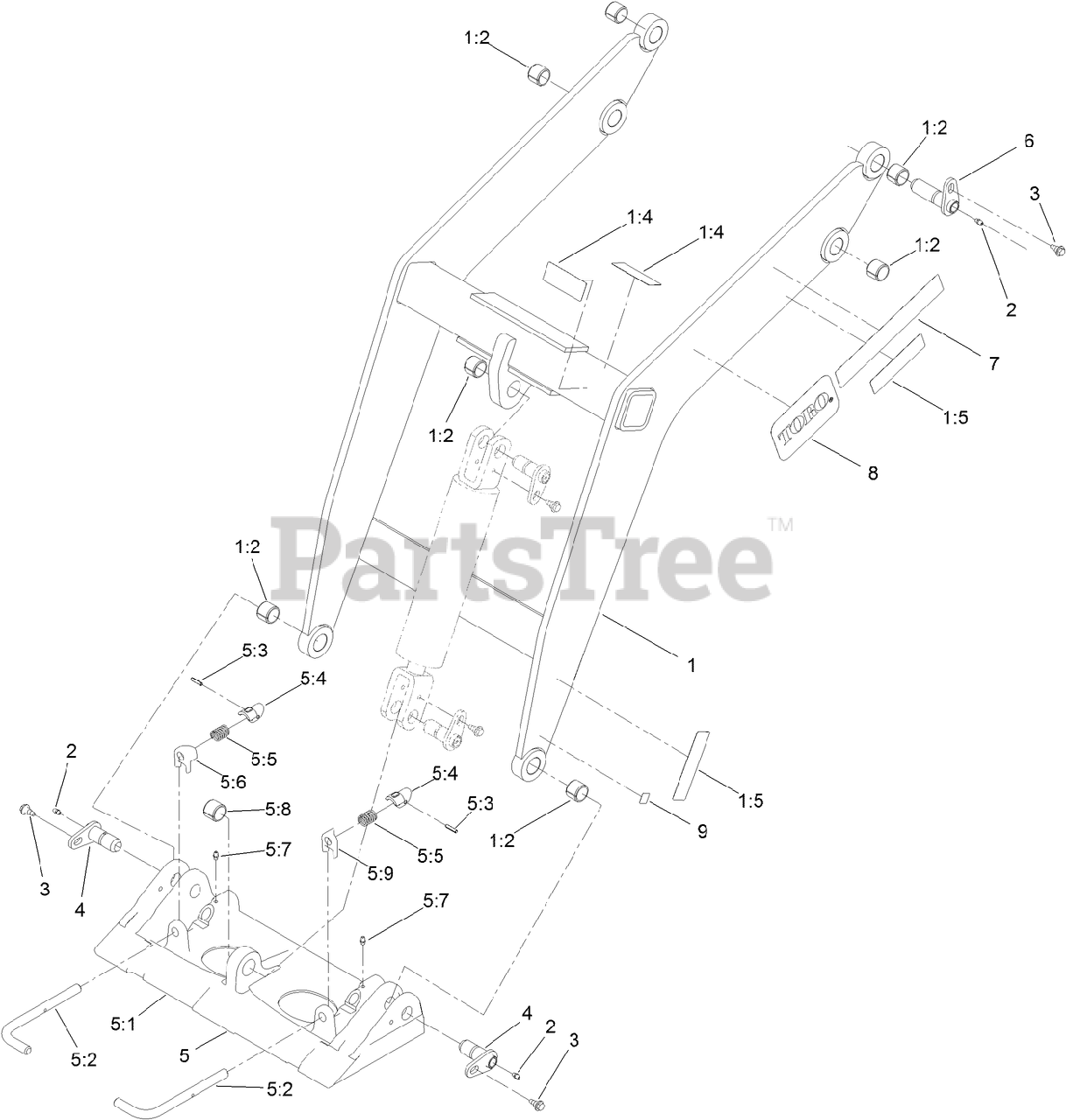

LOADER AND QUICK ATTACH ASSEMBLY Parts Diagram

  • Title

1

Toro 106-8155

LOADER ASM

$2349.99

$

Usually ships in 3-6 days

0

1:2

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

1:4

Toro 130-2837

DECAL-WARNING, NO RIDER

$17.99

$

Usually ships in 3-6 days

0

1:5

Toro 130-2836

DECAL-WARNING, CRUSHING

$21.99

$

Usually ships in 3-6 days

0

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

4

Toro 112-2609

PIN-PIVOT

$108.99

$

In Stock, only 2 left!

0

5

Toro 115-0788

QUICK ATTACH ASM
(Superseded to 132-8418)

$1443.99

$

Usually ships in 3-6 days

0

5:1

Toro 115-0774-03

MOUNT-QTACH
(Superseded to 130-7708-03)

$1267.99

$

Usually ships in 3-6 days

0

5:2

Toro 105-8367

PIN-LOCKING
(Superseded to 132-8419)

$33.99

$

In Stock, only 2 left!

0

5:3

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, only 3 left!

0

5:4

Toro 105-0246

CAM

$72.99

$

In Stock, only 2 left!

0

5:5

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

5:6

Toro 104-5909

STOP-RH

$58.99

$

Usually ships in 3-6 days

0

5:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5:8

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

5:9

Toro 104-5903

STOP-LH

$58.99

$

In Stock, only 2 left!

0

6

Toro 120-5363

PIN-PIVOT

$85.99

$

Usually ships in 3-6 days

0

7

Toro 105-8426

DECAL

$22.99

$

Usually ships in 3-6 days

0

8

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

9

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0
