22317 (220) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) FRAME ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

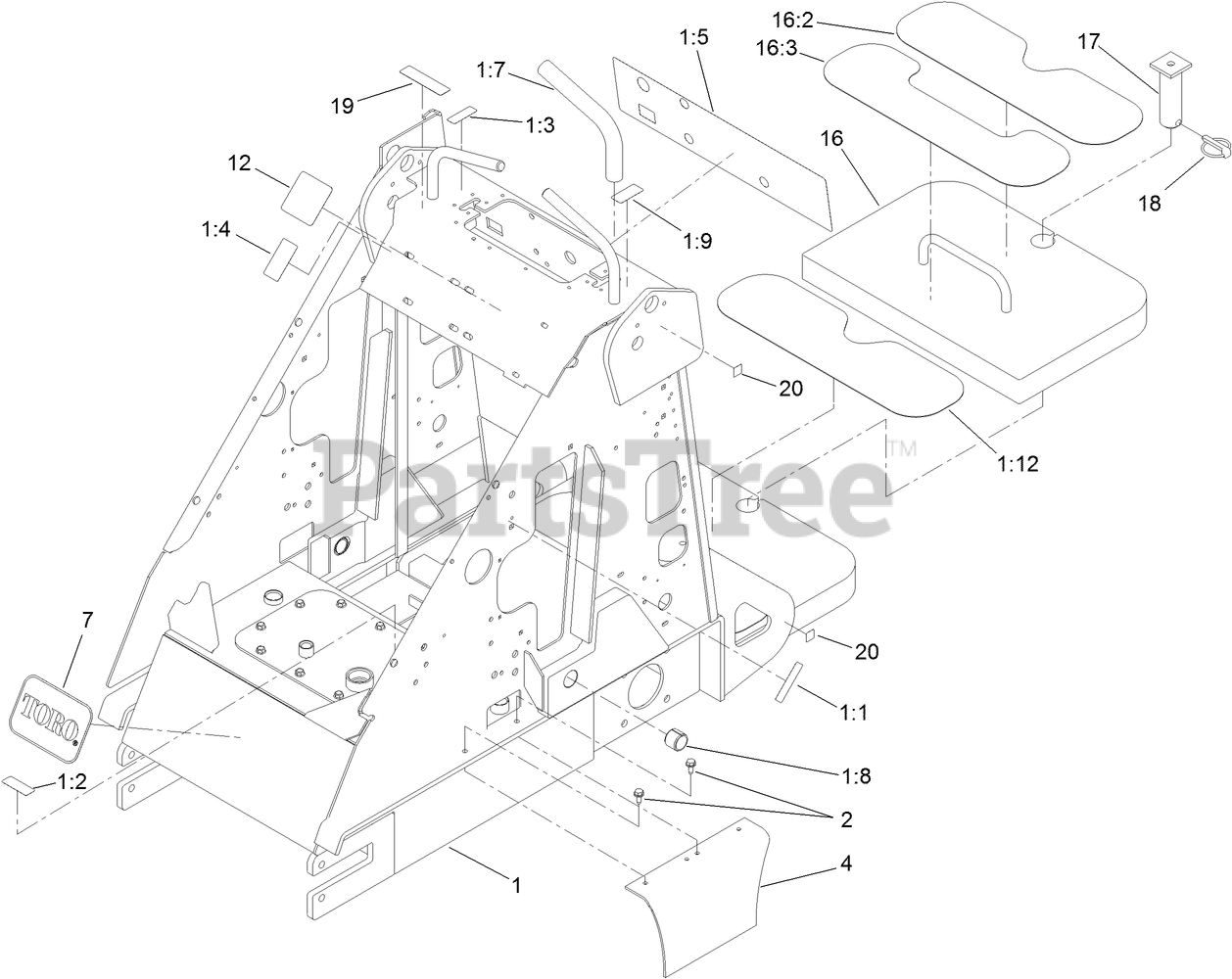

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 108-9700

FRAME ASM

$8456.99

$

Usually ships in 3-6 days

0

1:1

Toro 100-6141

DECAL-PINCH

$40.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

1:3

Toro 94-2551

DECAL-CHOKE

$39.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.99

$

Usually ships in 3-6 days

0

1:5

Toro 108-9732

DECAL-PANEL, CONTROL

$73.99

$

Usually ships in 3-6 days

0

1:7

Toro 98-4845

GRIP-CUSHION

$16.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

1:9

Toro 98-8219

DECAL-THROTTLE

$18.99

$

In Stock, only 1 left!

0

1:12

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 98-4669-01

COVER-CHAIN

$88.99

$

Usually ships in 3-6 days

0

7

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

12

Toro 108-9716

DECAL-SELECTOR, SPEED

$44.99

$

Usually ships in 3-6 days

0

16

Toro 112-4947

COUNTERWEIGHT ASM

$1924.99

$

Usually ships in 3-6 days

0

16:2

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

16:3

Toro 112-4948

TREAD

$35.99

$

Usually ships in 3-6 days

0

17

Toro 99-8638

PIN

$316.99

$

Usually ships in 3-6 days

0

18

Toro 99-9978

PIN-LYNCH

$11.99

$

Usually ships in 3-6 days

0

19

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

20

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0
