22317 (220) - Toro Dingo Compact Utility Loader (SN: 314000001 - 314999999) (2014) REAR WHEEL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

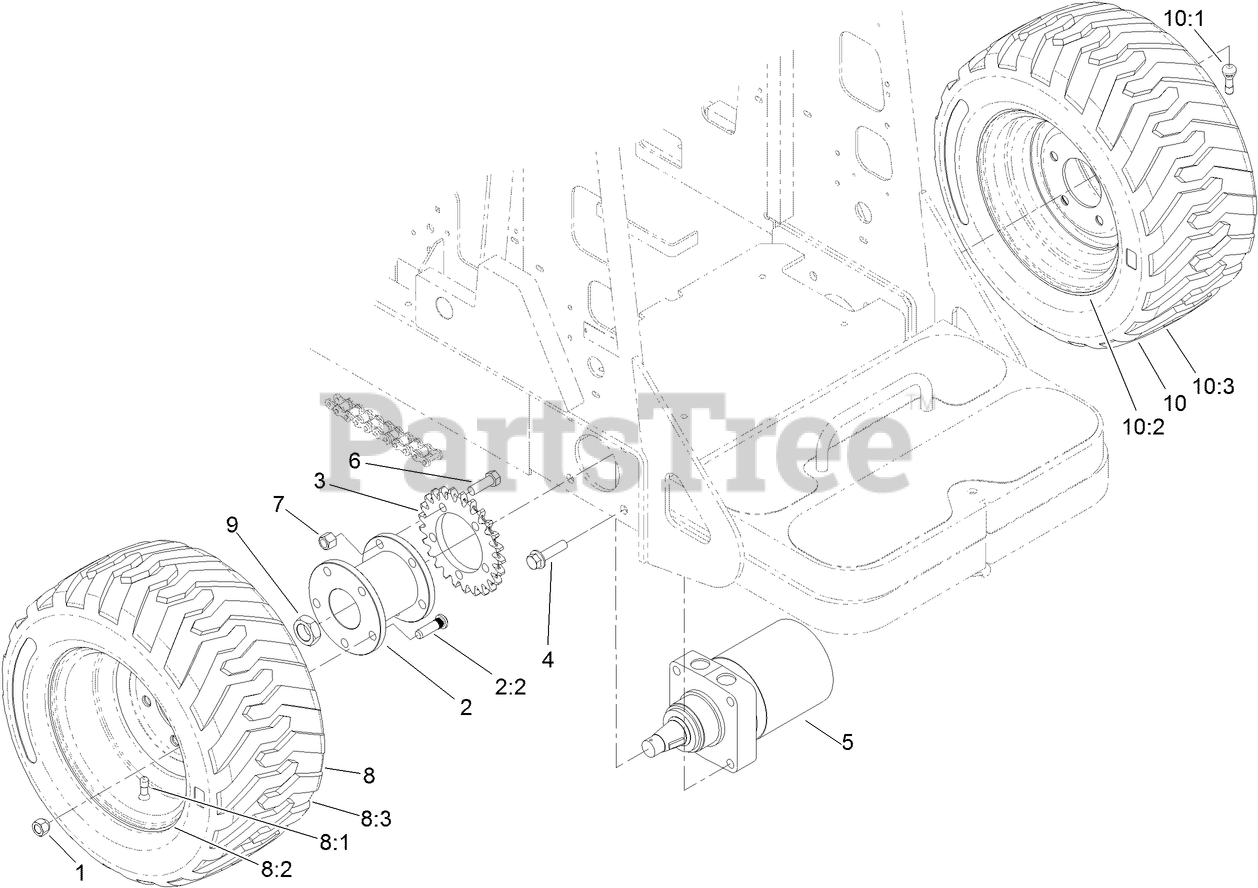

REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

2

Toro 100-9990

REAR HUB ASM

$541.99

$

Usually ships in 3-6 days

0

2:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

3

Toro 98-9937

SPROCKET-25T

$255.99

$

Usually ships in 3-6 days

0

4

Toro 3234-27

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

5

Toro 99-3052

HYD MOTOR ASM

$2640.99

$

Usually ships in 3-6 days

0

6

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

7

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 98-2747

LH WHEEL AND TIRE ASM

$

$

Not available

8:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

8:2

Toro 98-2748

WHEEL

$

$

Not available

8:3

Toro 98-2749

TIRE

$347.99

$

In Stock, only 4 left!

0

9

Toro 106-8159

NUT-LOCK

$28.99

$

In Stock, only 1 left!

0

10

Toro 99-1447

RH WHEEL AND TIRE ASM

$

$

Not available

10:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

10:2

Toro 98-2748

WHEEL

$

$

Not available

10:3

Toro 98-2749

TIRE

$347.99

$

In Stock, only 4 left!

0
