22317 (220) - Toro Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

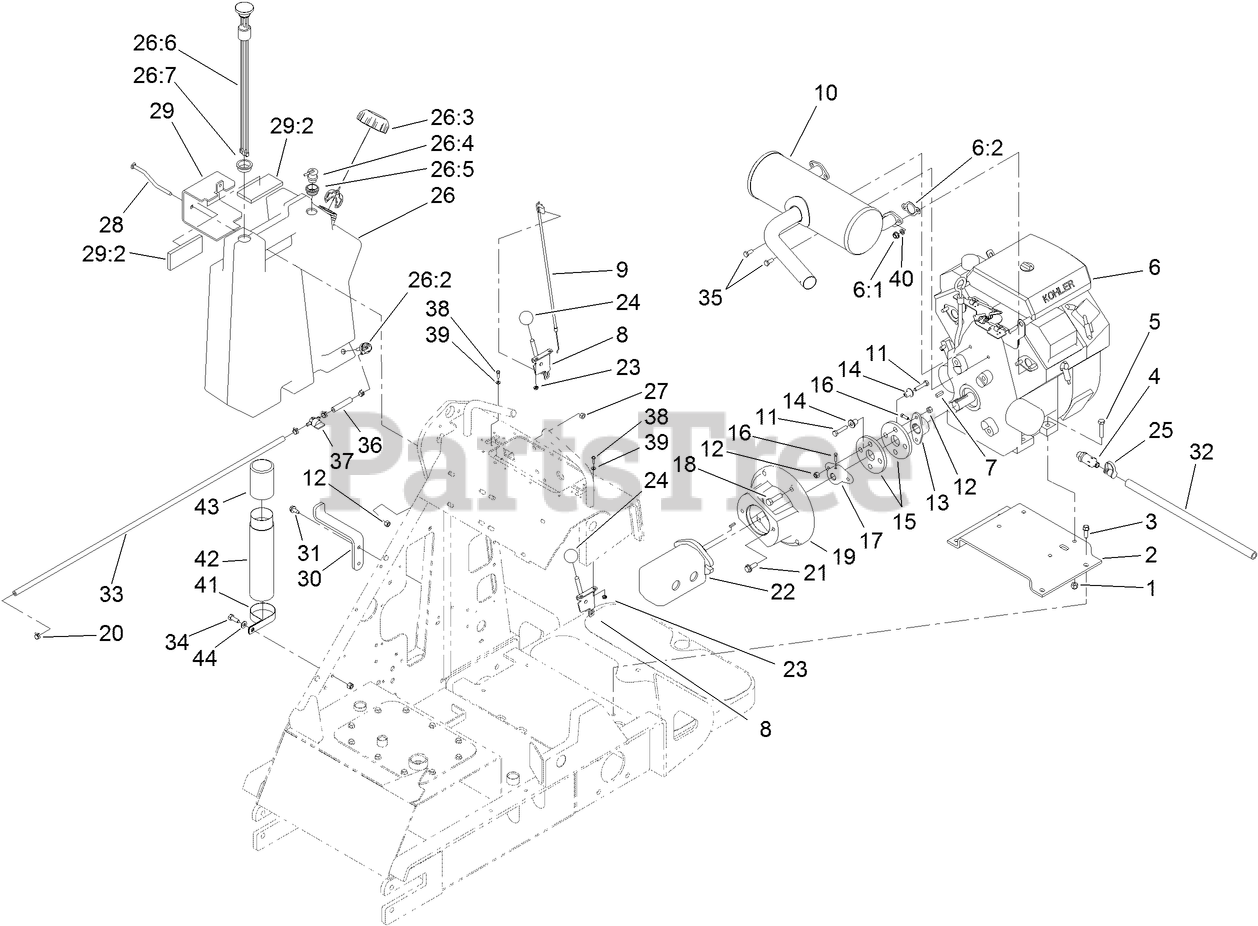

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

2

Toro 98-4666-03

MOUNT-ENGINE

$124.99

$

Usually ships in 3-6 days

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 117-1745

ENGINE-KOHLER, CH20S
(Superseded to 108-4740)

$5112.99

$

Usually ships in 3-6 days

0

6:1

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

6:2

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 8

0

8

Toro 108-9730

LEVER-CONTROL

$42.99

$

In Stock, only 1 left!

0

9

Toro 108-4718

CABLE-CONTROL

$22.99

$

In Stock, only 1 left!

0

10

Toro 105-8381

Muffler

$493.99

$

Usually ships in 3-6 days

0

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 110-5236

HUB-ENGINE

$37.99

$

In Stock, only 1 left!

0

14

Toro 71-4411

SPACER

$2.99

$

In Stock, Qty 7

0

15

Toro 115-4523

COUPLING-RUBBER

$56.99

$

In Stock, Qty 20+

0

16

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

0

17

Toro 98-4701

HUB-PUMP

$73.99

$

Usually ships in 3-6 days

0

18

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 98-2751-03

MOUNT-PUMP

$251.99

$

Usually ships in 3-6 days

0

20

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

21

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

22

Toro 108-4710

HYD PUMP ASM

$2257.99

$

Usually ships in 3-6 days

0

23

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

24

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

25

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

26

Toro 119-5241

RH FUEL TANK ASM

$643.99

$

Usually ships in 3-6 days

0

26:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

26:3

Toro 115-7788

CAP-FUEL
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

26:4

Toro 114-0285

VALVE-ROLLOVER

$18.99

$

In Stock, only 1 left!

0

26:5

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

26:6

Toro 104-5603

GAUGE-LEVEL, FUEL

$209.99

$

In Stock, only 1 left!

0

26:7

Toro 95-8972

GROMMET

$11.99

$

In Stock, only 1 left!

0

27

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

28

Toro 98-4657

BOLT-MOUNT

$41.99

$

Usually ships in 3-6 days

0

29

Toro 117-1802

RH TANK MOUNT ASM

$88.99

$

Usually ships in 3-6 days

0

29:2

Toro 117-1798

PAD-FOAM

$3.99

$

Usually ships in 3-6 days

0

30

Toro 117-1777-03

MOUNT-TANK, BOTTOM

$36.99

$

Usually ships in 3-6 days

0

31

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

32

Toro 98-4667

HOSE

$29.99

$

Usually ships in 3-6 days

0

33

Toro 109-0273

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

34

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

36

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

37

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

38

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

39

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

40

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

41

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

42

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

43

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
