22317 (220) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270999999) (2007) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH20S 64733 Parts Diagram

Dingo Compact Utility Loader

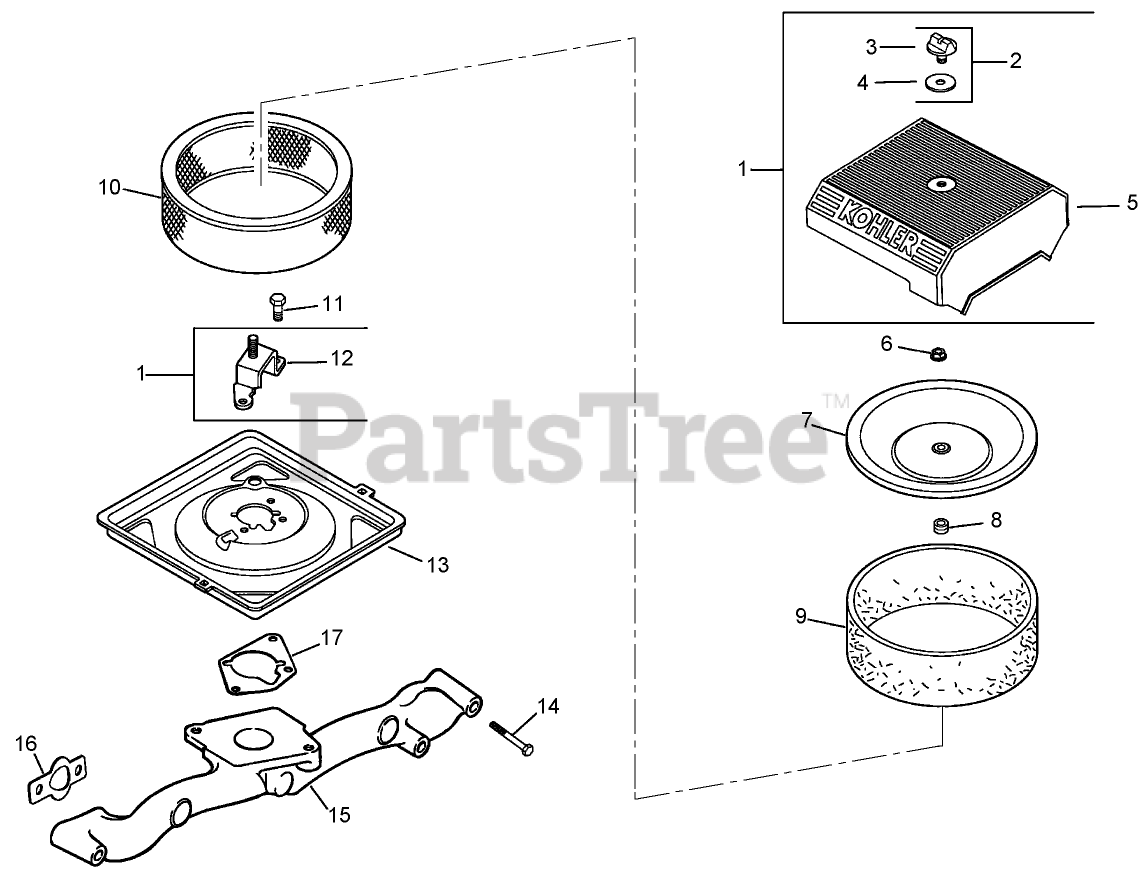

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH20S 64733 Parts Diagram

  • Title

1

Kohler 24 743 06-S

Air Cleaner Cover Kit (Includes 2-5, 12)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

Usually ships in 2-5 days

0

2

Kohler 54 755 01-S

Knob Kit (Includes 3, 4)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 4 left!

0

3

Kohler 25 341 04-S

KNOB-COVER

Note: Obtain parts from www.kohlerplus.com

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 24 153 20-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

5

Kohler 24 096 67-S

Cover-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$47.99

$

In Stock, only 1 left!

0

6

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

7

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 1 left!

0

8

Toro 230046-S-S

Seal

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Kohler 24 083 05-S

PRE-CLEANER

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 4 left!

0

10

Kohler 24 083 03-S

ELEMENT-FILTER, AIR

Note: Obtain parts from www.kohlerplus.com

$23.99

$

Usually ships in 2-5 days

0

11

Kohler 24 086 53-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

12

Kohler 24 126 141-S

Bracket-Base, Air Cleaner
(Superseded to 24 126 212-S)

Note: Obtain parts from www.kohlerplus.com

$47.99

$

Usually ships in 2-5 days

0

13

Kohler 24 094 37-S

BASE-CLEANER, AIR
(Superseded to 24 094 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14-S

Manifold-Intake

Note: Obtain parts from www.kohlerplus.com

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0
