Toro 22317 (220) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) HYDRAULIC VALVE ASSEMBLY Parts Lookup with Diagrams

1

Toro 99-3046

HOSE-SUCTION, FORMED

$231.99

$

Usually ships in 3-6 days

2

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

2:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

3

Toro 108-4716

HYD TUBE ASM

$186.99

$

Usually ships in 3-6 days

3:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

4

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

6

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

6:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

7

Toro 340-153

Fitting-Elbow, 90 DEG

$105.99

$

Usually ships in 3-6 days

7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

7:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

8

Toro 95-3209

FITTING-THREAD, STRAIGHT

$27.99

$

Usually ships in 3-6 days

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

9

Toro 99-3072

VALVE-SELECTOR, HYD

$1026.99

$

Usually ships in 3-6 days

10

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

11

Toro 108-9709-03

LEVER-CONTROL

$101.99

$

Usually ships in 3-6 days

12

Toro 98-0152

KNOB-TAPERED

$26.99

$

Usually ships in 3-6 days

13

Toro 99-3077

VALVE-HYD, AUXILIARY

$1895.99

$

Usually ships in 3-6 days

14

Toro 99-1376

MOUNT-CONTROL

$

Not available 

15

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

17

Toro 98-9090

GRIP-CONTROL

$113.99

$

Usually ships in 3-6 days

18

Toro 32128-44

NUT

$2.99

$

Usually ships in 3-6 days

19

Toro 105-7879

TUBE-HYD

$104.99

$

Usually ships in 3-6 days

20

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

20:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

20:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

21

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

22

Toro 98-4747

HOSE-HYD

$269.99

$

Usually ships in 3-6 days

23

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

24

Toro 33114-035

SCREW-HH

$5.49

$

In Stock, only 1 left!

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

29

Toro 100-8818

SLEEVE-GUARD, HOSE

(Superseded to 108-9715) 

$46.99

$

Usually ships in 3-6 days

30

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

31

Toro 340-105

FITTING-ELBOW 90

$42.99

$

In Stock, only 1 left!

31:1

Toro 237-80

O-RING

$6.99

$

In Stock, only 4 left!

31:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

32

Toro 354-73

FITTING-STRAIGHT

$41.99

$

Usually ships in 3-6 days

32:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

33

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

In Stock, only 2 left!

34

Toro 99-5349

Spring-Compression

$10.99

$

Usually ships in 3-6 days

36

Toro 86-5480

NIPPLE-TEST

$79.99

$

Usually ships in 3-6 days

37

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

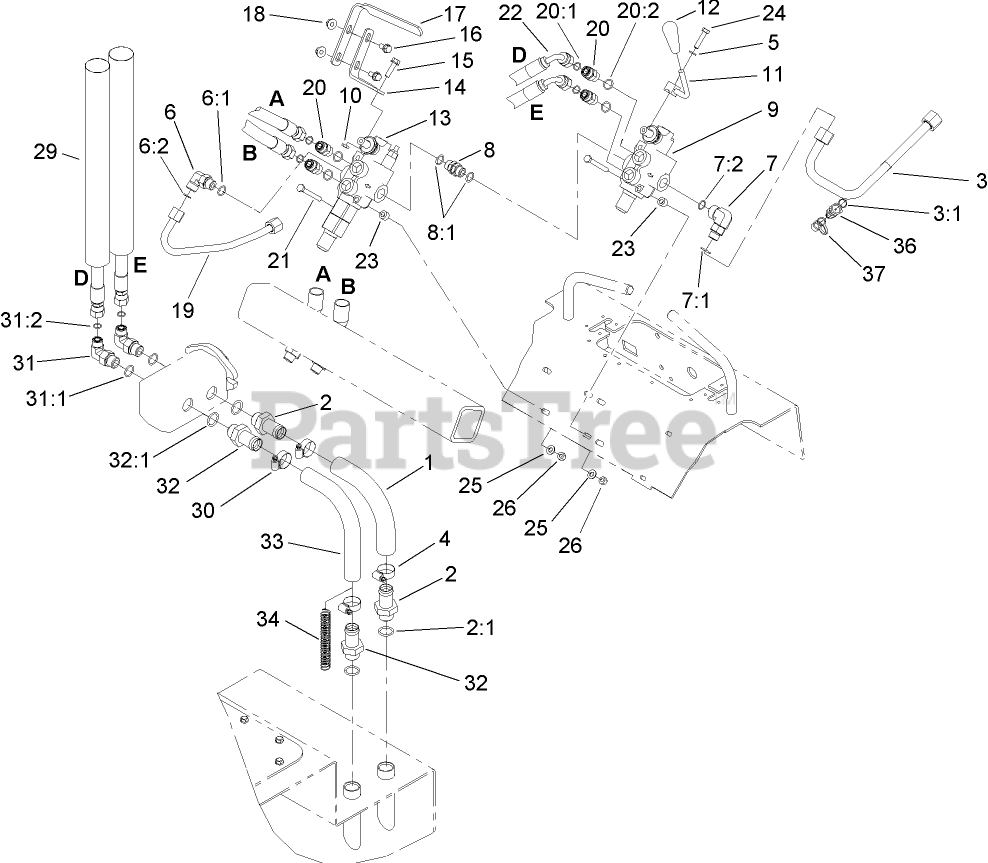

22317 (220) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) HYDRAULIC VALVE ASSEMBLY Parts Diagram

HYDRAULIC VALVE ASSEMBLY Parts Diagram
