22317 (220) - Toro Dingo Compact Utility Loader (SN: 250000301 - 250999999) (2005) STARTING SYSTEM ASSEMBLY KOHLER CH20S 64733 Parts Diagram

Dingo Compact Utility Loader

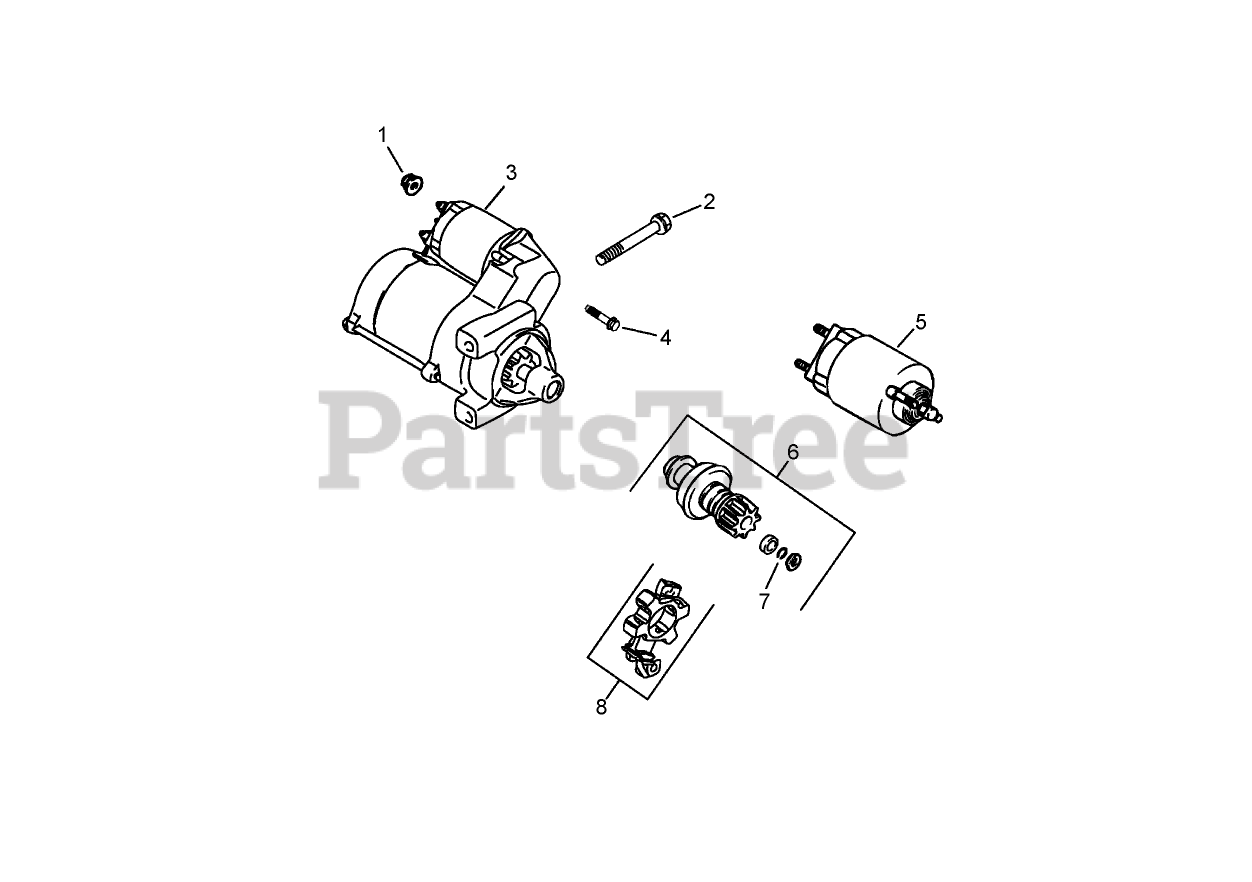

STARTING SYSTEM ASSEMBLY KOHLER CH20S 64733 Parts Diagram

  • Title
1

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

2

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

3

Kohler 25 098 08-S

Starter Solenoid Shift ASM (Includes 4-8)
(Superseded to 25 098 09-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 25 086 113-S

SCREW-TORX HEAD, EXTERNAL

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0

5

Kohler 25 435 04-S

Solenoid Kit (Includes 4)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 25 755 33-S

Pinion Drive Kit (Includes 7)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 25 141 05-S

RING-RETAINING

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 25 221 01-S

BRUSH HOLDER KIT

Note: Obtain parts from www.kohlerplus.com

$70.99

$

Usually ships in 2-5 days

0
