22317 (220) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250000300) (2005) HYDRAULIC CYLINDER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

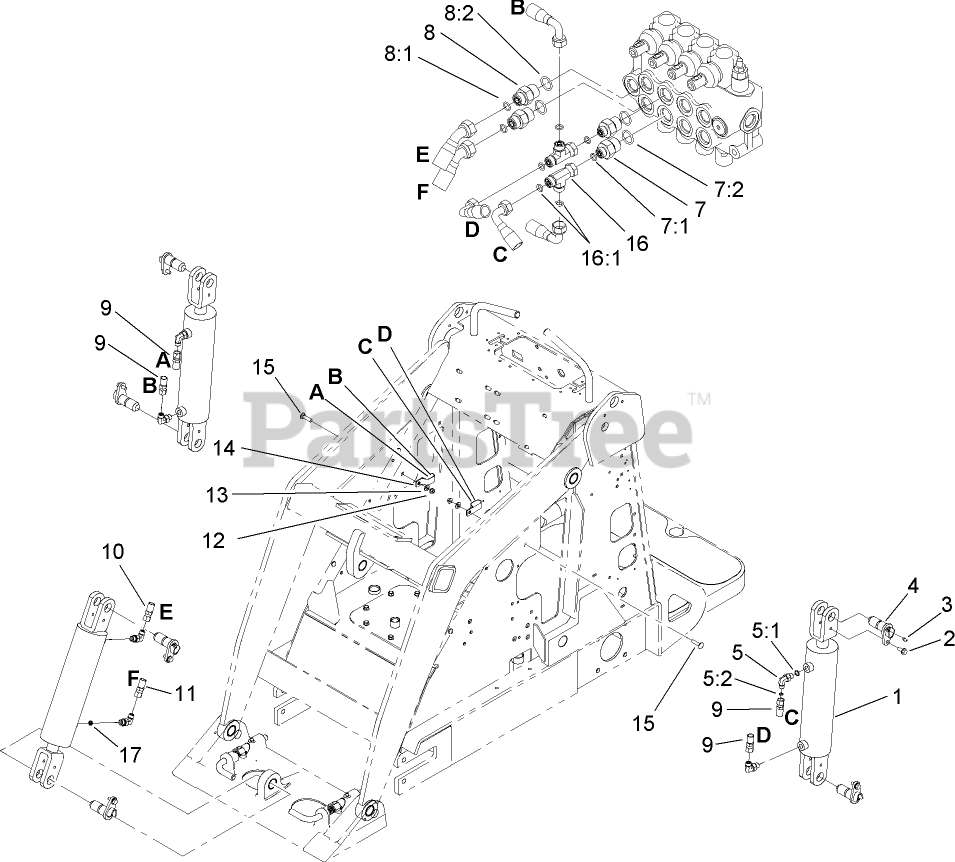

HYDRAULIC CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro 105-7867

HYD CYLINDER ASM
(Superseded to 139-7706)

$832.99

$

Usually ships in 3-6 days

0

2

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

4

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$108.99

$

In Stock, only 2 left!

0

5

Toro 340-82

FITTING-ELBOW 90

$24.99

$

In Stock, only 2 left!

0

5:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

5:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

7

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

7:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

8

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

8:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

9

Toro 98-4725

HOSE-HYD

$201.99

$

Usually ships in 3-6 days

0

10

Toro 98-4727

HOSE-HYD

$247.99

$

Usually ships in 3-6 days

0

11

Toro 98-4726

HOSE-HYD

$263.99

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 340-151

FITTING-HYD

$106.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

17

Toro 108-4714

ORIFICE-PORT INSERT, ONE WAY

$37.99

$

Usually ships in 3-6 days

0
