22317 (220) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250000300) (2005) FUEL SYSTEM ASSEMBLY KOHLER CH20S 64733 Parts Diagram

Dingo Compact Utility Loader

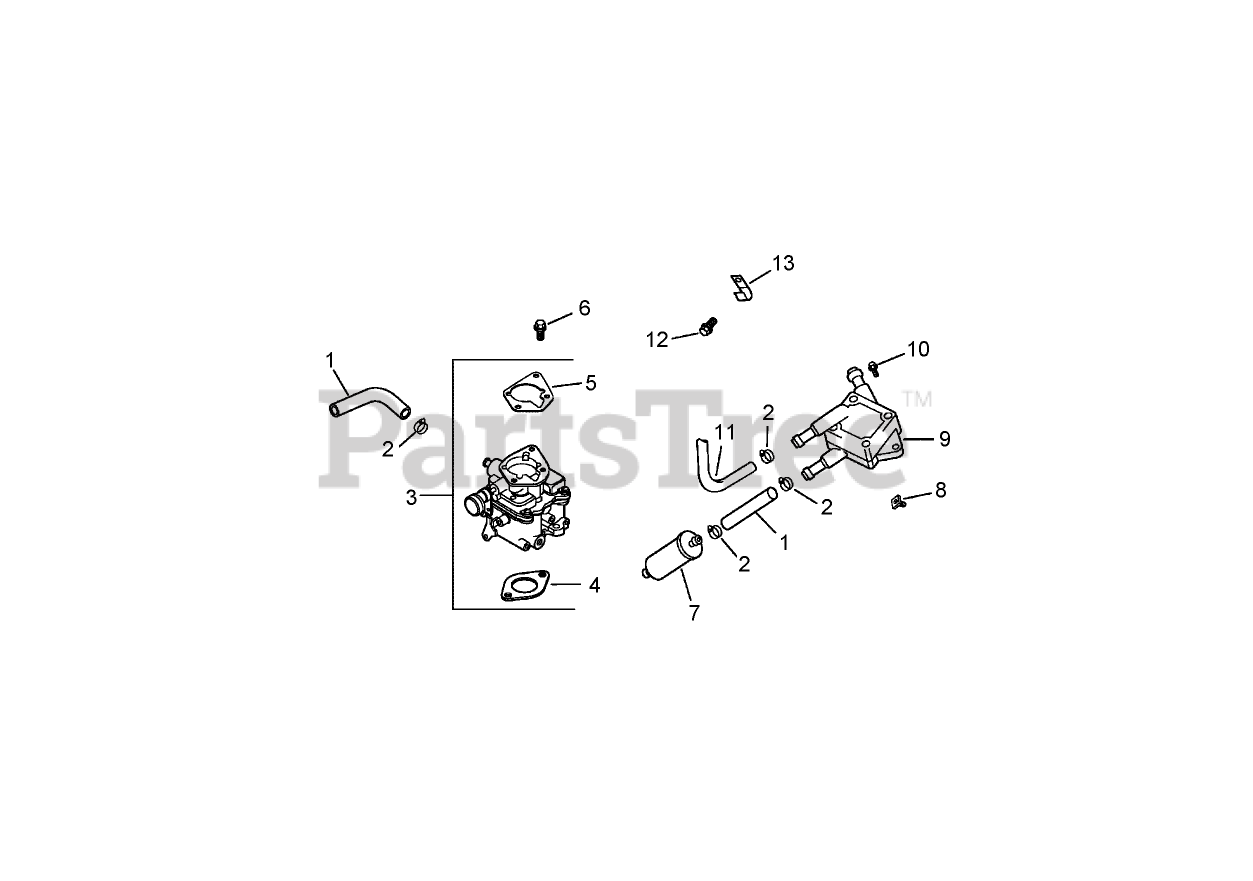

FUEL SYSTEM ASSEMBLY KOHLER CH20S 64733 Parts Diagram

  • Title

1

Kohler 25 353 32-S

Line-Fuel (9.5)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 3 left!

0

2

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 43-S

Carburetor Kit (Includes 4, 5)
(Superseded to 24 853 305-S)

Note: Obtain parts from www.kohlerplus.com

$288.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 17-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 9

0

5

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 19

0

6

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, Qty 20+

0

8

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

9

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 16

0

10

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

Note: Obtain parts from www.kohlerplus.com

$8.99

$

Usually ships in 2-5 days

0

12

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 3 left!

0

13

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 4 left!

0

Kohler 24 757 01-S

SOLENOID REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 01-S

SOLENOID REPAIR KIT

Note: Not illustrated

$227.99

$

In Stock, only 1 left!

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Not illustrated

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

CARBURETOR REPAIR KIT

Note: Not illustrated

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

CARBURETOR REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$112.99

$

Usually ships in 2-5 days

0

Kohler 24 757 07-S

CHOKE REPAIR KIT

Note: Obtain parts from www.kohlerplus.com

$95.99

$

In Stock, only 1 left!

0

Kohler 24 757 07-S

CHOKE REPAIR KIT

Note: Not illustrated

$95.99

$

In Stock, only 1 left!

0

Kohler 24 755 125-S

High Altitude Kit

Note: Not illustrated

$55.99

$

Usually ships in 2-5 days

0

Kohler 24 755 125-S

High Altitude Kit

Note: Obtain parts from www.kohlerplus.com

$55.99

$

Usually ships in 2-5 days

0
