22317 (220) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250000300) (2005) ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

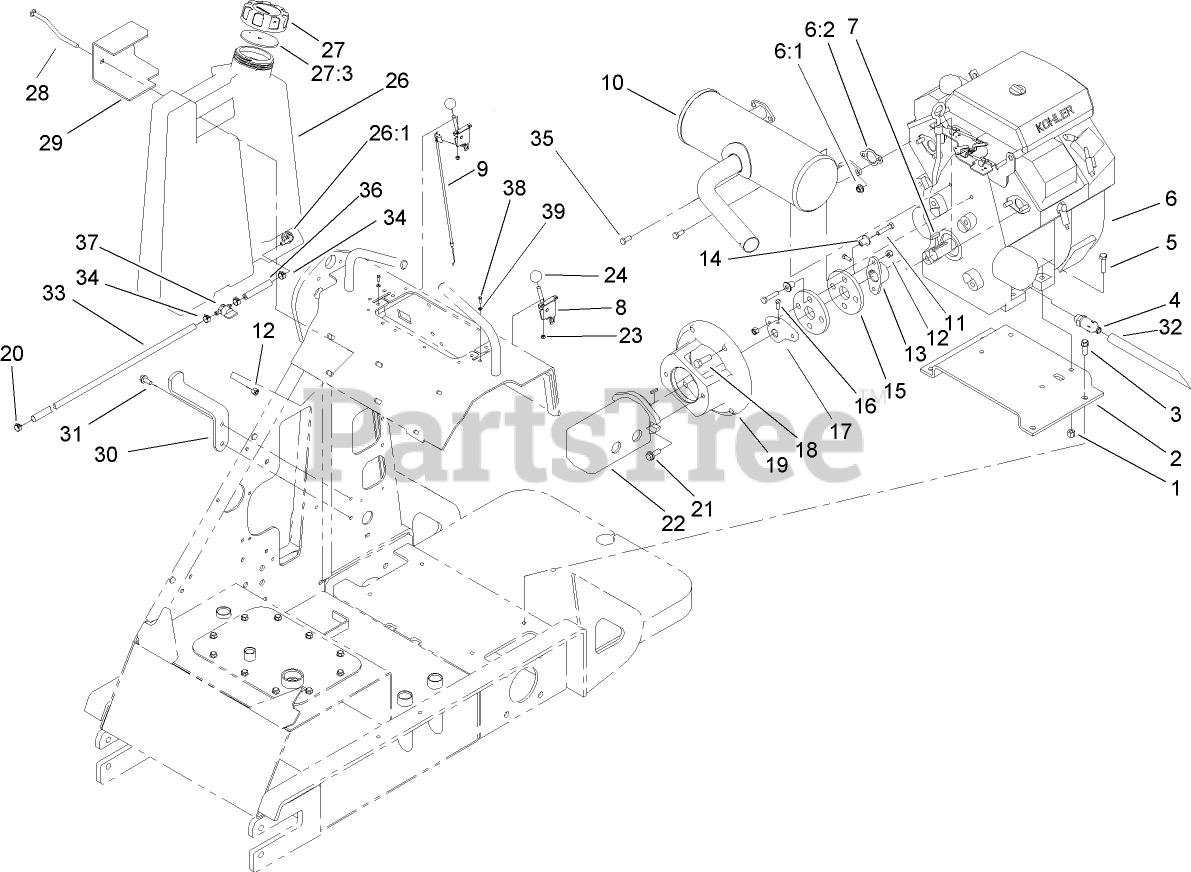

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 98-4666-03

MOUNT-ENGINE

$121.99

$

Usually ships in 3-6 days

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, only 1 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

ENGINE-KOHLER, CH20S 64733

Note: Not serviced separately

$

$

Not available

6

ENGINE-KOHLER, CH20S 64733

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6:1

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

6:2

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 8

0

8

Toro 108-9730

LEVER-CONTROL

$40.99

$

Usually ships in 3-6 days

0

9

Toro 108-4718

CABLE-CONTROL

$22.99

$

In Stock, only 1 left!

0

10

Toro 105-8381

Muffler

$479.99

$

Usually ships in 3-6 days

0

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 27-1960

HUB-ENGINE
(Superseded to 110-5236)

$35.99

$

In Stock, only 1 left!

0

14

Toro 71-4411

SPACER

$2.99

$

In Stock, Qty 7

0

15

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$53.99

$

In Stock, Qty 20+

0

16

Toro 3241-6

SCREW-SQH

$4.99

$

Usually ships in 3-6 days

0

17

Toro 98-4701

HUB-PUMP

$71.99

$

Usually ships in 3-6 days

0

18

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 98-2751-03

MOUNT-PUMP

$244.99

$

Usually ships in 3-6 days

0

20

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

21

Toro 66-9300

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

22

Toro 108-4710

HYD PUMP ASM

$2193.99

$

Usually ships in 3-6 days

0

23

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

24

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

26

Toro 105-8440

RH Fuel Tank ASM

$587.99

$

Usually ships in 3-6 days

0

26:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

27

Toro 104-7418

CAP-FUEL, GAS

$50.99

$

In Stock, only 2 left!

0

27:3

Toro 104-7420

GASKET-VENTED

$33.99

$

Usually ships in 3-6 days

0

28

Toro 98-4657

BOLT-MOUNT

$40.99

$

Usually ships in 3-6 days

0

29

Toro 98-4655-03

PLATE-MOUNT

$68.99

$

Usually ships in 3-6 days

0

30

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$36.99

$

Usually ships in 3-6 days

0

31

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

32

Toro 98-4667

HOSE

$29.99

$

Usually ships in 3-6 days

0

33

Toro 63-7721

HOSE-FUEL
(Superseded to 109-0273)

$21.99

$

Usually ships in 3-6 days

0

34

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

35

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

36

Toro 99-5101

HOSE-FUEL
(Superseded to 114-3765)

$4.99

$

Usually ships in 3-6 days

0

37

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

38

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

39

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0
