22312 (323) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

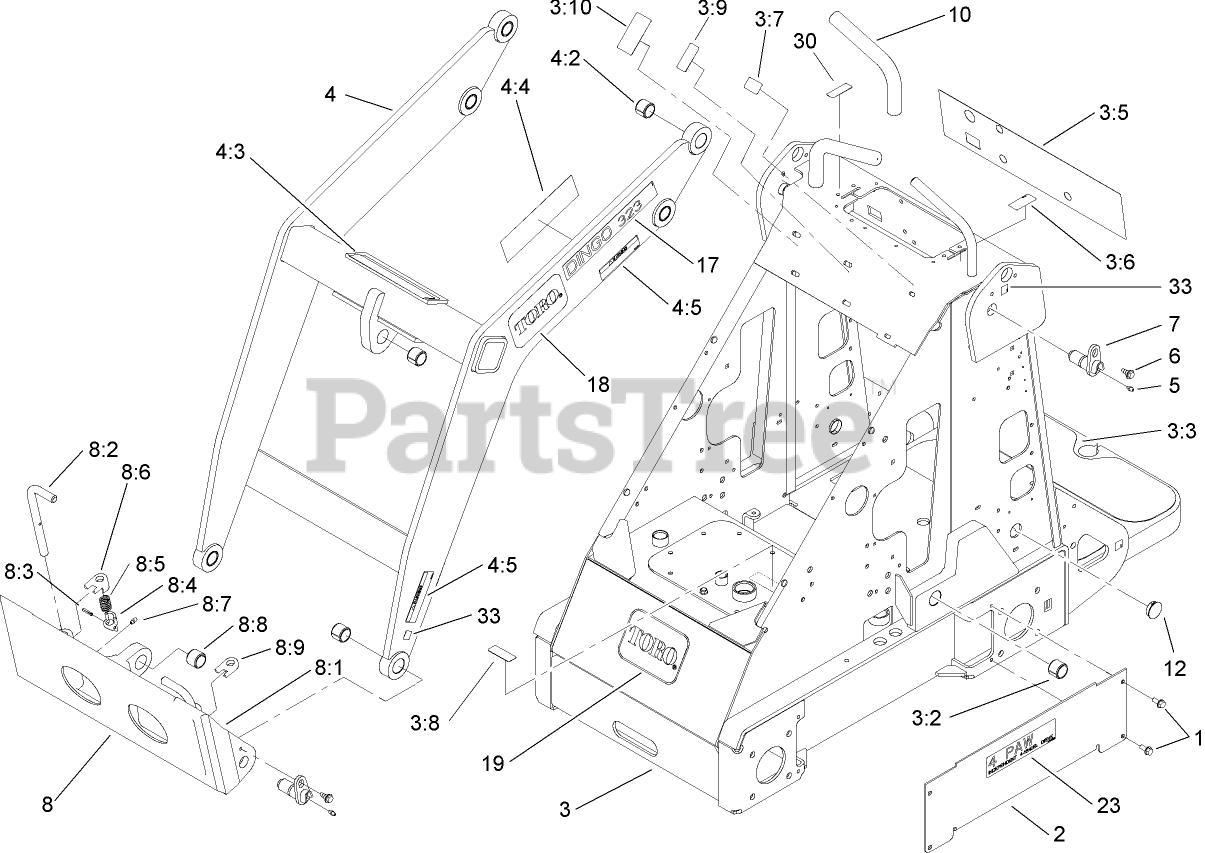

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 106-8178-01

COVER-HOSE

$92.99

$

Usually ships in 3-6 days

0

3

Toro 106-8185

FRAME ASM

$

$

Not available

3:2

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

3:3

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

3:5

Toro 99-3157

DECAL-PANEL, CONTROL

$67.99

$

Usually ships in 3-6 days

0

3:6

Toro 98-8219

DECAL-THROTTLE

$18.99

$

In Stock, only 1 left!

0

3:7

Toro 98-8220

DECAL-LIMITER, SPEED

$19.99

$

Usually ships in 3-6 days

0

3:8

Toro 105-8432

DECAL-OIL, HYD

$6.99

$

Usually ships in 3-6 days

0

3:9

Toro 98-8235

DECAL-SELECTOR

$18.99

$

Usually ships in 3-6 days

0

3:10

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.99

$

Usually ships in 3-6 days

0

4

Toro 106-8155

LOADER ASM

$2349.99

$

Usually ships in 3-6 days

0

4:2

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

4:3

Toro 98-4682

DECAL-CAUTION

$22.99

$

Usually ships in 3-6 days

0

4:4

Toro 98-9051

DECAL-DANGER

$34.99

$

In Stock, only 1 left!

0

4:5

Toro 100-6141

DECAL-PINCH

$40.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

7

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$108.99

$

In Stock, only 2 left!

0

8

Toro 105-8364

QUICK ATTACH ASM
(Superseded to 132-8418)

$1443.99

$

Usually ships in 3-6 days

0

8:1

Toro 105-0245-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1267.99

$

Usually ships in 3-6 days

0

8:2

Toro 105-8367

PIN-LOCKING
(Superseded to 132-8419)

$33.99

$

In Stock, only 2 left!

0

8:3

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, Qty 6

0

8:4

Toro 105-0246

CAM

$72.99

$

Usually ships in 3-6 days

0

8:5

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

8:6

Toro 104-5909

STOP-RH

$58.99

$

In Stock, only 1 left!

0

8:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8:8

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

8:9

Toro 104-5903

STOP-LH

$58.99

$

Usually ships in 3-6 days

0

10

Toro 98-4845

GRIP-CUSHION

$16.99

$

Usually ships in 3-6 days

0

12

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

17

Toro 105-8427

Decal
(Superseded to 117-9980)

$25.99

$

Usually ships in 3-6 days

0

18

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

19

Toro 62-5550

DECAL

$10.99

$

In Stock, only 4 left!

0

23

Toro 105-8429

Decal

$20.99

$

Usually ships in 3-6 days

0

30

Toro 94-2551

DECAL-CHOKE

$39.99

$

Usually ships in 3-6 days

0

33

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0
