22312 (323) - Toro Dingo Compact Utility Loader (SN: 240000001 - 240000200) (2004) HYDRAULIC CYLINDER KIT ASSEMBLY NO. 100-4163 Parts Diagram

Dingo Compact Utility Loader

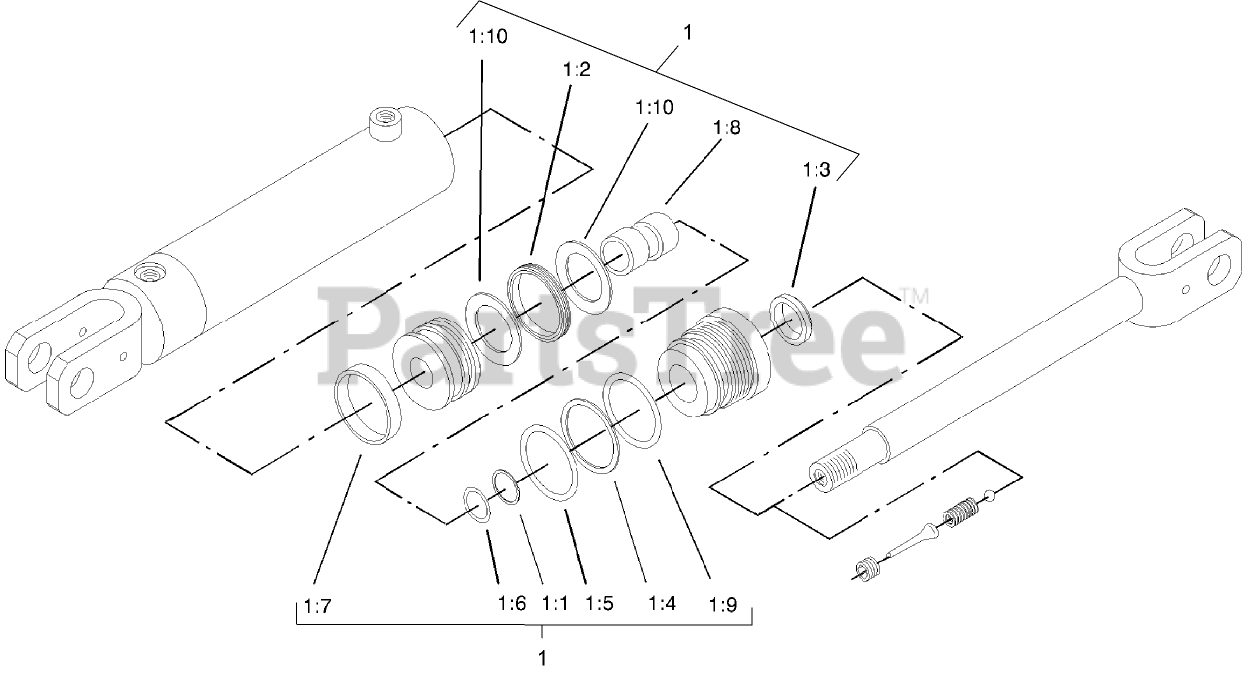

HYDRAULIC CYLINDER KIT ASSEMBLY NO. 100-4163 Parts Diagram

  • Title

1

Toro 99-3065

SEAL KIT

$503.99

$

Usually ships in 3-6 days

0

1:1

Washer-Backup

Note: Not serviced separately

$

$

Not available

1:2

Seal ASM

Note: Not serviced separately

$

$

Not available

1:3

Rod-Wiper

Note: Not serviced separately

$

$

Not available

1:4

Washer-Backup

Note: Not serviced separately

$

$

Not available

1:5

Seal-Dust

Note: Not serviced separately

$

$

Not available

1:6

Seal ASM

Note: Not serviced separately

$

$

Not available

1:7

Ring-Wear

Note: Not serviced separately

$

$

Not available

1:8

Ring-Wear

Note: Not serviced separately

$

$

Not available

1:9

Seal-Dust

Note: Not serviced separately

$

$

Not available

1:10

Washer-Backup

Note: Not serviced separately

$

$

Not available
