22312 (323) - Toro Dingo Compact Utility Loader (SN: 240000001 - 240000200) (2004) FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

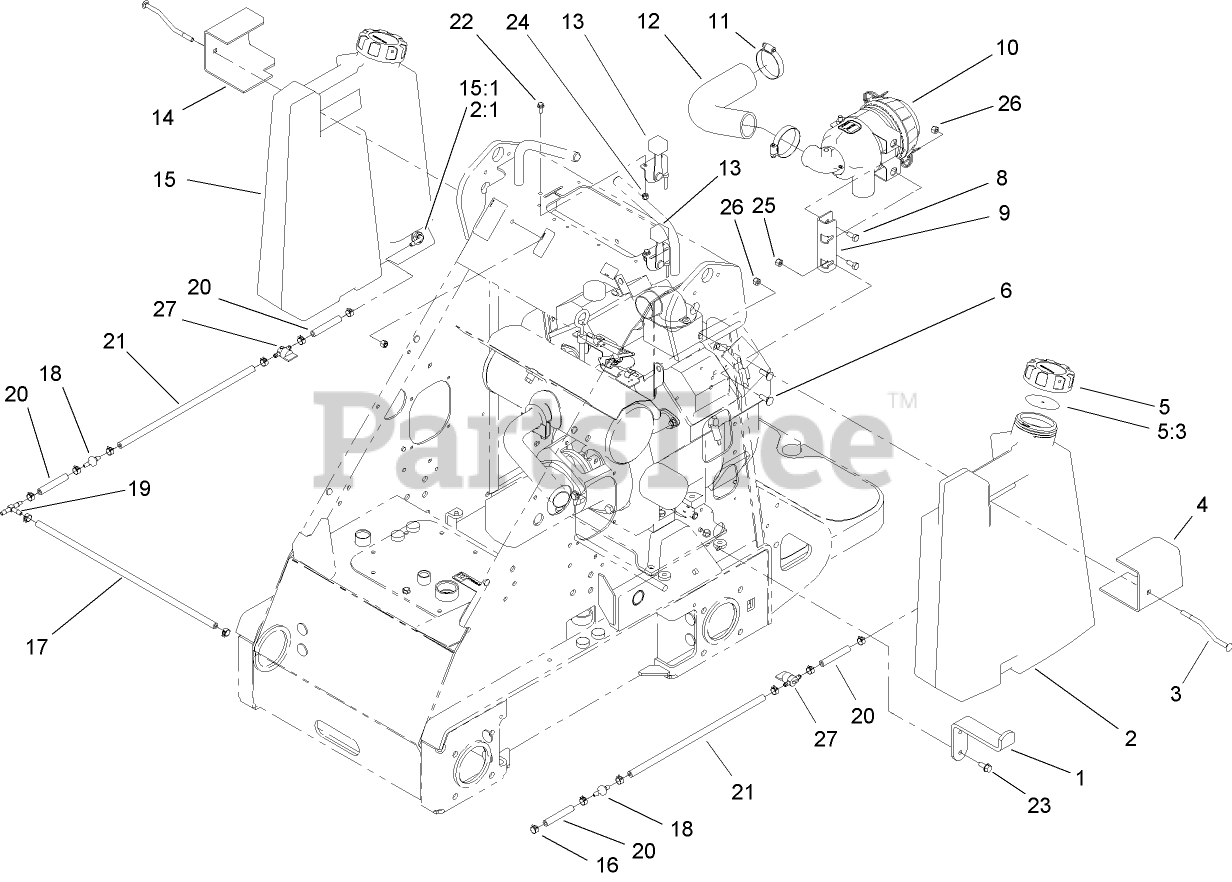

FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

  • Title
1

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$36.99

$

Usually ships in 3-6 days

0

2

Toro 105-8439

LH Fuel Tank ASM

$599.99

$

Usually ships in 3-6 days

0

2:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

3

Toro 98-4657

BOLT-MOUNT

$41.99

$

Usually ships in 3-6 days

0

4

Toro 99-1444-03

PLATE-MOUNT, LEFT

$77.99

$

In Stock, only 1 left!

0

5

Toro 104-7418

CAP-FUEL, GAS

$52.99

$

In Stock, only 2 left!

0

5:3

Toro 104-7420

GASKET-VENTED

$34.99

$

Usually ships in 3-6 days

0

6

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 99-3080-03

MOUNT-CLEANER, AIR

$83.99

$

Usually ships in 3-6 days

0

10

Toro 99-3160

AIR CLEANER ASM

$341.99

$

Usually ships in 3-6 days

0

11

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

12

Toro 99-3148

HOSE-AIR

$157.99

$

Usually ships in 3-6 days

0

13

Toro 85-9310

CONTROL-CHOKE / THROTTLE

$103.99

$

Usually ships in 3-6 days

0

14

Toro 98-4655-03

PLATE-MOUNT

$69.99

$

Usually ships in 3-6 days

0

15

Toro 105-8440

RH Fuel Tank ASM

$604.99

$

Usually ships in 3-6 days

0

15:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

16

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

17

Toro 99-3185

HOSE-FUEL
(Superseded to 110-5701)

$17.99

$

Usually ships in 3-6 days

0

18

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

19

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

20

Toro 99-5101

HOSE-FUEL
(Superseded to 114-3765)

$4.99

$

In Stock, only 1 left!

0

21

Toro 94-1349

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

22

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0
