22312 (323) - Toro Dingo Compact Utility Loader (SN: 230000001 - 230999999) (2003) ENGINE AND PUMP ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

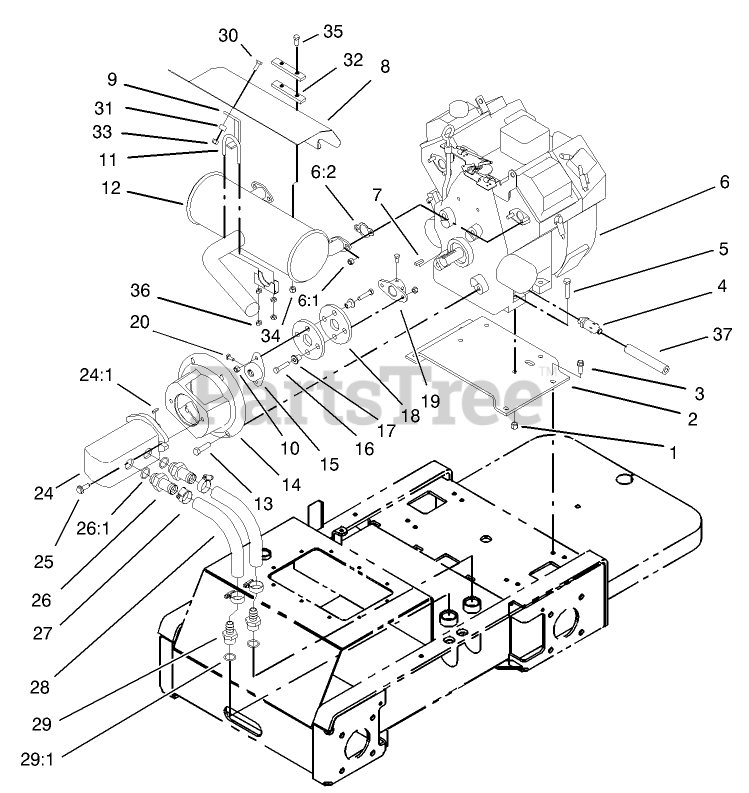

ENGINE AND PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 98-4666-03

MOUNT-ENGINE

$124.99

$

Usually ships in 3-6 days

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Engine-Kohler, CH680-3015

Note: Not serviced separately

$

$

Not available

6:1

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

6:2

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

8

Toro 99-3115-03

SHIELD-MUFFLER

$136.99

$

Usually ships in 3-6 days

0

9

Toro 99-3138

SUPPORT-SHIELD
(Superseded to 99-3138-03)

$34.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 2112-9

CLAMP

$9.99

$

Usually ships in 3-6 days

0

12

Toro 105-8381

Muffler

$493.99

$

Usually ships in 3-6 days

0

13

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 98-2751-03

MOUNT-PUMP

$251.99

$

Usually ships in 3-6 days

0

15

Toro 98-4701

HUB-PUMP

$73.99

$

Usually ships in 3-6 days

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 71-4411

SPACER

$2.99

$

In Stock, only 3 left!

0

18

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

19

Toro 27-1960

HUB-ENGINE
(Superseded to 110-5236)

$37.99

$

In Stock, only 2 left!

0

20

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

0

24

Toro 98-4702

PUMP-GEAR, TANDEM

$2211.99

$

Usually ships in 3-6 days

0

24:1

Toro 98-4700

KEY-SQUARE

$15.99

$

Usually ships in 3-6 days

0

24:2

Toro 99-1353

SEAL KIT

Note: Not illustrated

$123.99

$

Usually ships in 3-6 days

0

25

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

26

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

26:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

27

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

28

Toro 99-3046

HOSE-SUCTION, FORMED

$231.99

$

Usually ships in 3-6 days

0

29

Toro 354-78

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

30

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

31

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

32

Toro 99-3116-03

SPACER-BAR

$20.99

$

Usually ships in 3-6 days

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

35

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

36

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

37

Toro 98-4667

HOSE

$29.99

$

Usually ships in 3-6 days

0
