22311 (220) - Toro Dingo Compact Utility Loader (SN: 240000201 - 240999999) (2004) HYDRAULIC VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

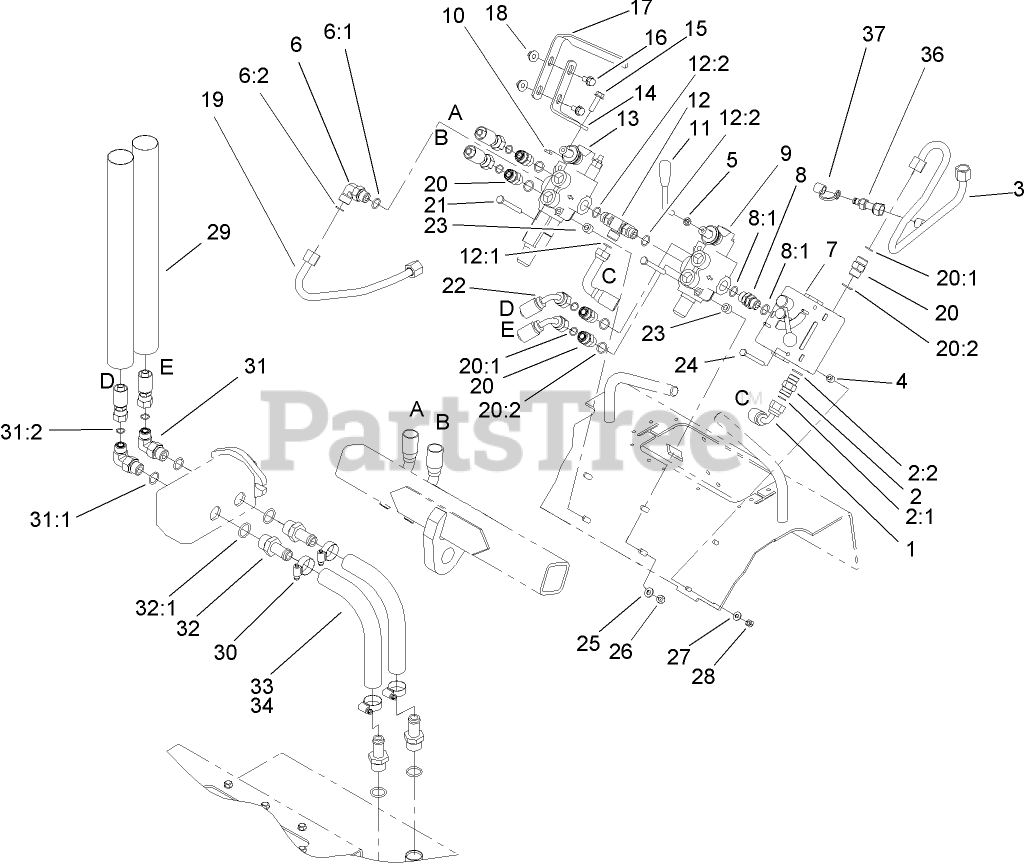

HYDRAULIC VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4744

HOSE ASM

$288.99

$

Usually ships in 3-6 days

0

2

Toro 98-4735

VALVE-CHECK, HYD

$296.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

2:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

3

Toro 105-7878

TUBE-HYD

$216.99

$

Usually ships in 3-6 days

0

4

Toro 98-4799

SPACER

$7.99

$

In Stock, only 2 left!

0

5

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

6

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

6:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

7

Toro 104-4221

HYD VALVE KIT

$941.99

$

Usually ships in 3-6 days

0

8

Toro 95-3209

FITTING-THREAD, STRAIGHT

$27.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

9

Toro 99-3072

VALVE-SELECTOR, HYD

$1026.99

$

Usually ships in 3-6 days

0

10

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

11

Toro 98-4729

LEVER-VALVE

$82.99

$

In Stock, only 1 left!

0

12

Toro 98-9079

ADAPTER-TEE, ADJUSTABLE

$250.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

13

Toro 99-3077

VALVE-HYD, AUXILIARY

$1895.99

$

Usually ships in 3-6 days

0

14

Toro 99-1376

MOUNT-CONTROL

$

$

Not available

15

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

17

Toro 98-9090

GRIP-CONTROL

$113.99

$

Usually ships in 3-6 days

0

18

Toro 32128-44

NUT

$2.99

$

Usually ships in 3-6 days

0

19

Toro 105-7879

TUBE-HYD

$104.99

$

Usually ships in 3-6 days

0

20

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

20:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

20:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

21

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

22

Toro 98-4747

HOSE-HYD

$269.99

$

Usually ships in 3-6 days

0

23

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

24

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 100-8818

SLEEVE-GUARD, HOSE
(Superseded to 108-9715)

$46.99

$

Usually ships in 3-6 days

0

30

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

31

Toro 340-105

FITTING-ELBOW 90

$44.99

$

In Stock, only 1 left!

0

31:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

31:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

32

Toro 354-73

FITTING-STRAIGHT

$41.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

33

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

In Stock, only 2 left!

0

34

Toro 99-5349

Spring-Compression

Note: Not illustrated

$10.99

$

Usually ships in 3-6 days

0

36

Toro 86-5480

NIPPLE-TEST

$79.99

$

Usually ships in 3-6 days

0

37

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0
