22311 (220) - Toro Dingo Compact Utility Loader (SN: 240000201 - 240999999) (2004) HYDRAULIC TRACTION ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

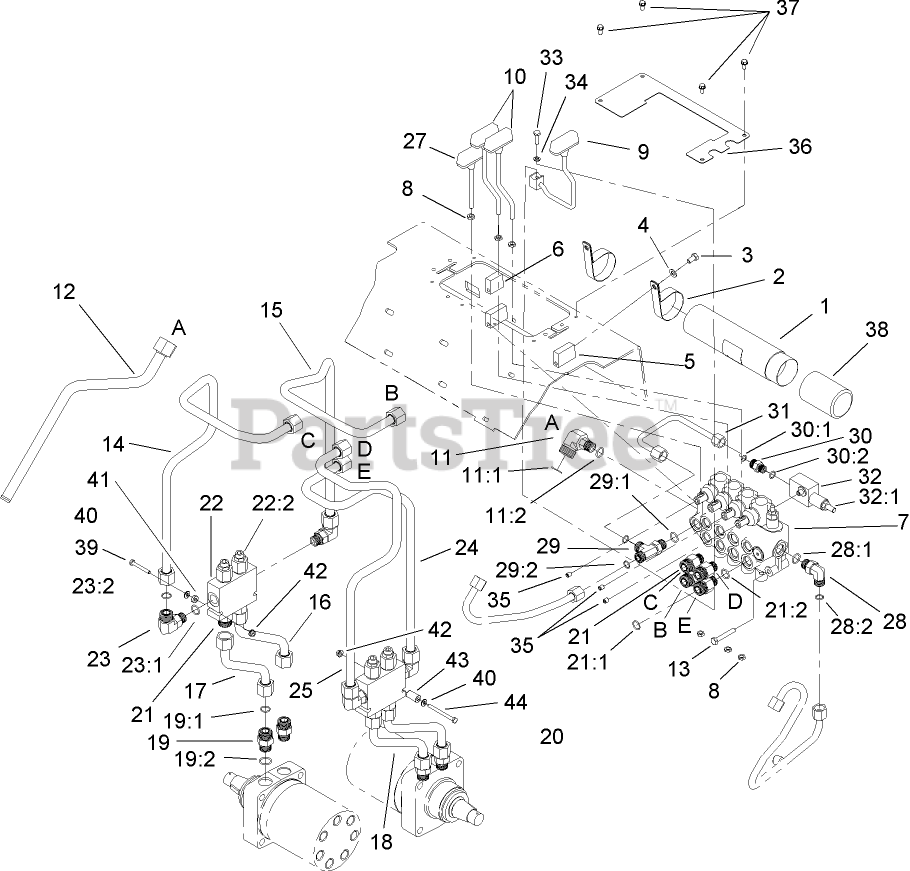

HYDRAULIC TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

2

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

3

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 105-7871

SPACER-LOWER

$

$

Not available

6

Toro 105-7870

SPACER-UPPER

$69.99

$

Usually ships in 3-6 days

0

7

Toro 105-6246

VALVE-FOUR SPOOL (W/ RELIEF PORT)

$4880.99

$

Usually ships in 3-6 days

0

8

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

9

Toro 106-8165

LEVER-CONTROL

$187.99

$

Usually ships in 3-6 days

0

10

Toro 104-5733

LEVER-DRIVE

$104.99

$

Usually ships in 3-6 days

0

11

Toro 92-5696

FITTING-HYD, 90 DEG

$151.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

11:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

12

Toro 106-8177

TUBE-TANK, HYD

$123.99

$

Usually ships in 3-6 days

0

13

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

14

Toro 105-7877

TUBE-HYD (RIGHT B)

$151.99

$

Usually ships in 3-6 days

0

15

Toro 105-7876

TUBE-HYD (RIGHT A)

$151.99

$

Usually ships in 3-6 days

0

16

Toro 98-4740

TUBE-HYD

$186.99

$

Usually ships in 3-6 days

0

17

Toro 98-4741

TUBE-HYD

$177.99

$

In Stock, only 1 left!

0

18

Toro 98-4743

TUBE-HYD

$176.99

$

Usually ships in 3-6 days

0

19

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

19:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

19:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

20

Toro 98-4742

TUBE-HYD

$184.99

$

Usually ships in 3-6 days

0

21

Toro 340-155

FITTING-STR

$30.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

21:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

22

Toro 98-9050

VALVE-COUNTERBALANCE

$1163.99

$

Usually ships in 3-6 days

0

22:2

Toro 99-3271

VALVE-CARTRIDGE

$1584.99

$

Usually ships in 3-6 days

0

22:1

Toro 105-4099

SEAL KIT

Note: Not illustrated

$68.99

$

Usually ships in 3-6 days

0

22:2:1

Toro 98-2712

SEAL KIT
(Superseded to 105-4099)

Note: Not illustrated

$68.99

$

Usually ships in 3-6 days

0

23

Toro 340-153

Fitting-Elbow, 90 DEG

$105.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

23:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

24

Toro 105-7875

TUBE-HYD (LEFT A)

$151.99

$

Usually ships in 3-6 days

0

25

Toro 105-7874

TUBE-HYD (LEFT B)

$151.99

$

Usually ships in 3-6 days

0

27

Toro 105-7881

LEVER-CYLINDER

$81.99

$

Usually ships in 3-6 days

0

28

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

28:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

28:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

29

Toro 340-109

FITTING-TEE

$72.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

29:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

30

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

30:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

30:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

31

Toro 105-7866

LINE-HYD

$102.99

$

Usually ships in 3-6 days

0

32

Toro 105-7882

RELIEF VALVE ASM

$576.99

$

Usually ships in 3-6 days

0

32:1

Toro 105-8358

CARTRIDGE-VALVE, RELIEF

$261.99

$

Usually ships in 3-6 days

0

32:2

Toro 105-8357

SEAL KIT

Note: Not illustrated

$104.99

$

Usually ships in 3-6 days

0

33

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 105-4068

SCREW-SET, HSH

$15.99

$

Usually ships in 3-6 days

0

36

Toro 105-8352-03

PLATE-COVER

$

$

Not available

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

39

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 106-8189

SPACER

$27.99

$

Usually ships in 3-6 days

0

42

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

43

Toro 106-8188

SPACER

$50.99

$

Usually ships in 3-6 days

0

44

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0
