22311 (220) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) HYDRAULIC TRACTION ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

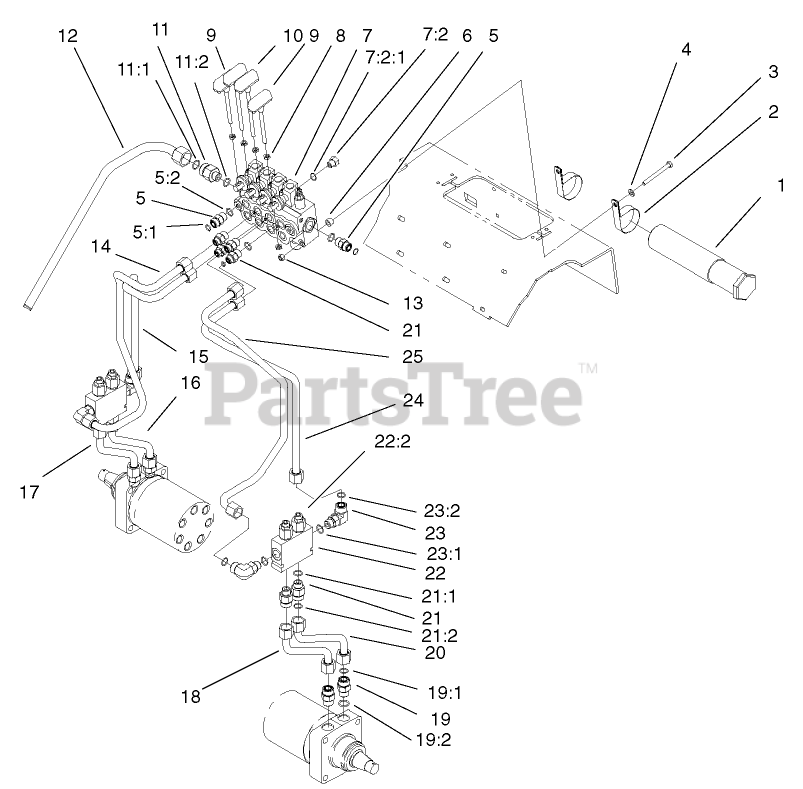

HYDRAULIC TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

2

Toro 2412-133

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

3

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

5:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

5:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

6

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

7

Toro 105-8406

VALVE ASM - 4 SPOOL

$

$

Not available

7:2

Toro 353-512

PLUG

$26.99

$

Usually ships in 3-6 days

0

7:2:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

8

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

9

Toro 98-4671

CYLINDER HANDLE ASM

$34.99

$

In Stock, only 1 left!

0

10

Toro 98-4670

DRIVE HANDLE ASM

$

$

Not available

11

Toro 98-9921

FITTING-STR

$61.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-145

O-RING
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

11:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

12

Toro 99-3021

HYD TUBE ASM

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 98-4737

TUBE-HYD

$

$

Not available

15

Toro 98-4736

TUBE-HYD

$180.99

$

Usually ships in 3-6 days

0

16

Toro 98-4740

TUBE-HYD

$195.99

$

Usually ships in 3-6 days

0

17

Toro 98-4741

TUBE-HYD

$186.99

$

In Stock, only 1 left!

0

18

Toro 98-4743

TUBE-HYD

$185.99

$

Usually ships in 3-6 days

0

19

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

19:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

19:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

20

Toro 98-4742

TUBE-HYD

$193.99

$

Usually ships in 3-6 days

0

21

Toro 340-155

FITTING-STR

$30.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

21:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

22

Toro 98-9050

VALVE-COUNTERBALANCE

$1222.99

$

Usually ships in 3-6 days

0

22:2

Toro 99-3271

VALVE-CARTRIDGE

$1663.99

$

Usually ships in 3-6 days

0

22:1

Toro 105-4099

SEAL KIT

$72.99

$

Usually ships in 3-6 days

0

22:2:1

Toro 98-2712

SEAL KIT
(Superseded to 105-4099)

Note: Not illustrated

$72.99

$

Usually ships in 3-6 days

0

23

Toro 340-153

Fitting-Elbow, 90 DEG

$110.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

23:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

24

Toro 98-4738

TUBE-HYD

$

$

Not available

25

Toro 98-4739

TUBE-HYD

$

$

Not available
