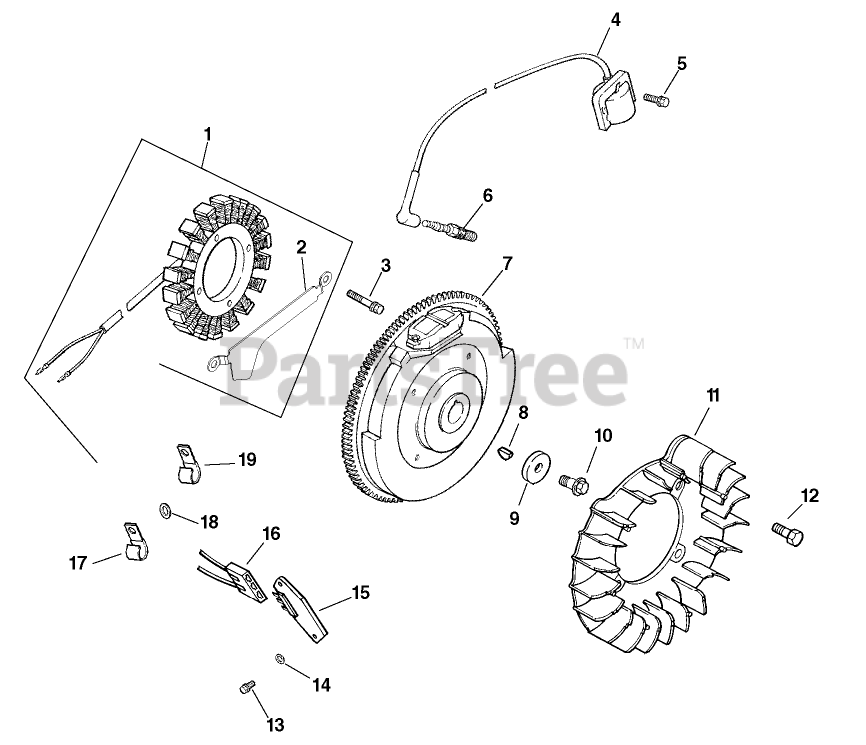

22311 (220) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) IGNITION/ELECTRICAL Parts Diagram

Dingo Compact Utility Loader

IGNITION/ELECTRICAL Parts Diagram

  • Title

1

Kohler 54 755 09-S

Kit, 15 amp stator(Includes 2)
(Superseded to 237878-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$149.99

$

In Stock, Qty 8

0

2

Kohler 24 126 71-S

Bracket-Wire, Stator
(Superseded to 24 126 139-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 584 01-S

Module-Ignition
(Superseded to 24 584 45-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

6

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$20.99

$

Usually ships in 2-5 days

0

7

Kohler 24 025 04-S

Flywheel
(Superseded to 24 025 55-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 6

0

9

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

10

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 12

0

11

Kohler 24 157 03-S

Fan
(Superseded to 24 755 253-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$46.99

$

In Stock, only 1 left!

0

12

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

13

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

14

Kohler X-25-92-S

WASHER-FLAT (.188)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

15

Kohler 25 403 03-S

Rectifier-Regulator, 15 amp
(Superseded to 41 403 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

17

Kohler 235173-S

CLIP-CABLE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

18

Kohler X-25-63-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

19

Kohler 48 154 02-S

Clip-Cable

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

20

Kohler 24 176 08-S

Harness-Wiring
(Superseded to 24 176 171-S)

Note: Not illustrated

$117.99

$

In Stock, only 1 left!

0

21

Kohler 24 518 12-S

Lead-Black

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

22

Kohler 25 454 03-S

TIE-WIRE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

24

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0
