22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 280000001 - 280999999) (2008) FRAME ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

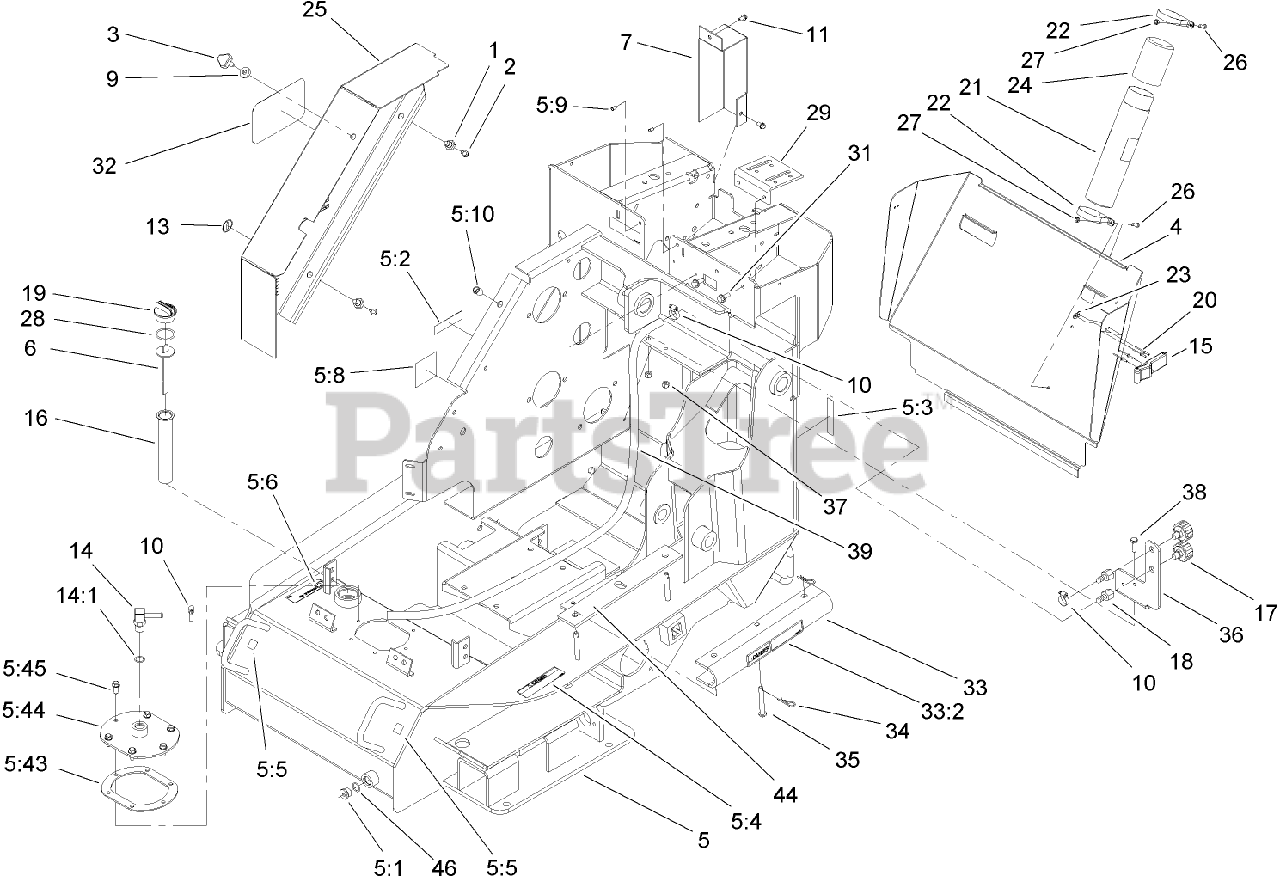

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 95-3989

MOUNT-SIDEPANEL

$

$

Not available

2

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

3

Toro 95-9648

KNOB

$21.99

$

In Stock, only 2 left!

0

4

Toro 106-9472-01

COVER-REAR

$

$

Not available

5

Toro 106-9530

FRAME ASM

$8613.99

$

Usually ships in 3-6 days

0

5:1

Toro 353-550

PLUG-HYD, HH

$16.99

$

Usually ships in 3-6 days

0

5:2

Toro 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 7

0

5:3

Toro 104-2838

DECAL-BRAKE

$28.99

$

Usually ships in 3-6 days

0

5:4

Toro 100-6141

DECAL-PINCH

$39.99

$

Usually ships in 3-6 days

0

5:5

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

5:6

Toro 105-8432

DECAL-OIL, HYD

$6.99

$

Usually ships in 3-6 days

0

5:8

Toro 106-9514

DECAL-BELT ROUTING

$

$

Not available

5:9

Toro 32148-6

INSERT-NUT

$1.99

$

Usually ships in 3-6 days

0

5:10

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0

5:43

Toro 107-3557

GASKET-COVER, ACCESS

$56.99

$

Usually ships in 3-6 days

0

5:44

Toro 107-3559

COVER ASM

$

$

Not available

5:45

Toro 98-9940

SCREW

$1.99

$

In Stock, only 3 left!

0

6

Toro 100-2097

DIPSTICK-OIL

$62.99

$

Usually ships in 3-6 days

0

7

Toro 105-9043-03

COVER-PULLEY

$

$

Not available

9

Toro 106-0565

WASHER-RUBBER

$5.99

$

Usually ships in 3-6 days

0

10

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

11

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

13

Toro 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0

14

Toro 354-134

FITTING-HYD, 90 DEG

$68.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

15

Toro 80-6980

LATCH

$126.99

$

Usually ships in 3-6 days

0

16

Toro 61-2790

FILTER-SCREEN

$

$

Not available

17

Toro 68-6150

BREATHER

$27.99

$

In Stock, only 1 left!

0

18

Toro 354-95

FITTING-STRAIGHT

$6.99

$

Usually ships in 3-6 days

0

19

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 1 left!

0

20

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

21

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

22

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

23

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

24

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

25

Toro 106-9427-03

COVER-BELT

$311.99

$

Usually ships in 3-6 days

0

26

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 237-123

O-RING
(Superseded to 237-101)

$3.99

$

In Stock, only 1 left!

0

29

Toro 106-9447-01

BRACKET-MOUNT, THROTTLE

$

$

Not available

31

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

32

Toro 105-1217

DECAL

$39.99

$

In Stock, Qty 8

0

33

Toro 107-3552

LOCKING ARM ASM

$199.99

$

Usually ships in 3-6 days

0

33:2

Toro 100-6135

DECAL-DANGER

$31.99

$

Usually ships in 3-6 days

0

34

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

35

Toro 283-52

PIN-CLEVIS

$12.99

$

In Stock, only 1 left!

0

36

Toro 106-3132-01

BRACKET-FILTER

$

$

Not available

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 109-0277

HOSE-FUEL

$27.99

$

Usually ships in 3-6 days

0

44

Toro 106-9495

PAD-RUBBER

$

$

Not available

46

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0
