22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) AIR CLEANER ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

Dingo Compact Utility Loader

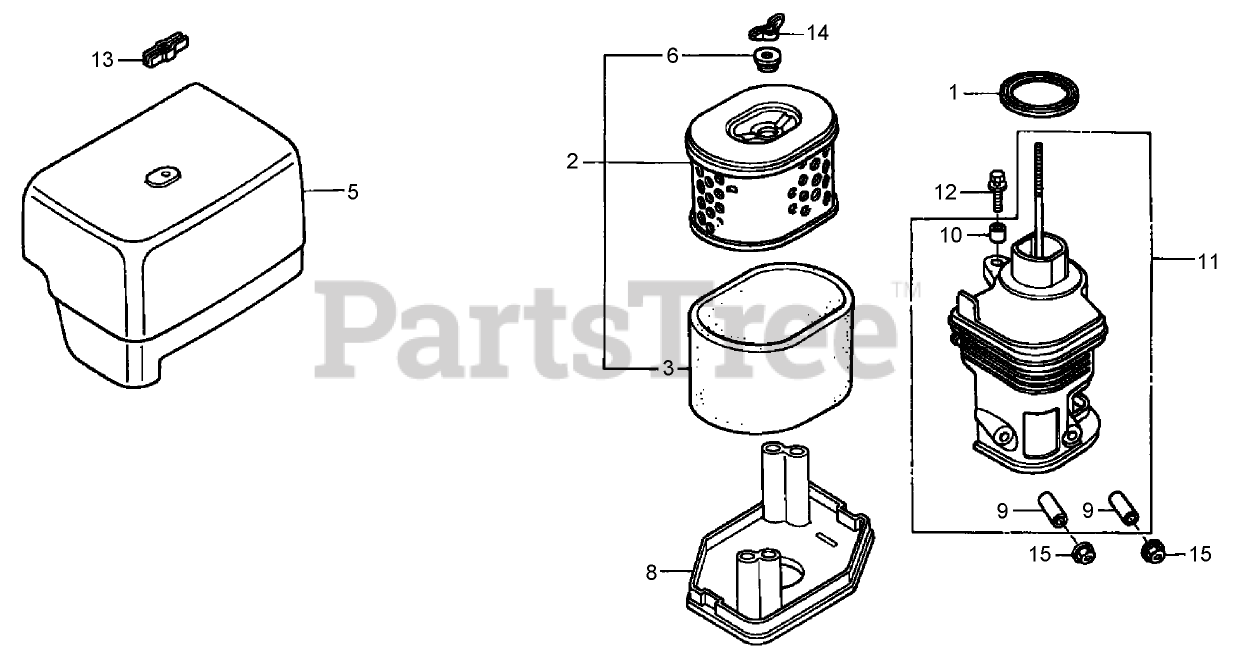

AIR CLEANER ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

  • Title

1

Honda 16271-ZE2-010

GASKET-ELBOW

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 11

0

2

Honda 17210-ZE3-505

ELEMENT-AIR CLEANER

Note: Obtain parts from www.honda-engines.com

$21.99

$

In Stock, Qty 20+

0

3

Toro 17218-ZE3-000

FILTER (OUTER)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

5

Honda 17231-ZE3-W01

COVER-AIR CLEANER

Note: Obtain parts from www.honda-engines.com

$57.99

$

In Stock, only 1 left!

0

6

Honda 17232-891-000

GROMMET-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, Qty 16

0

8

Toro 17235-ZH9-N00

NOSE-MUFFLER

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

9

Honda 17238-ZE2-310

COLLAR-AIR CLEANER

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 10

0

10

Honda 17239-ZE1-000

COLLAR B-AIR CLEANER

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 7

0

11

Honda 17410-ZH9-N00

ELBOW-AIR CLEANER
(Superseded to 17410-ZH9-N01)

Note: Obtain parts from www.honda-engines.com

$16.99

$

In Stock, only 1 left!

0

12

Honda 90009-ZE2-003

BOLT-WASHER (6X22)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 1 left!

0

13

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 1 left!

0

14

Honda 90325-044-000

WINGNUT

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, Qty 20+

0

15

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0
