22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) ENGINE AND DRIVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

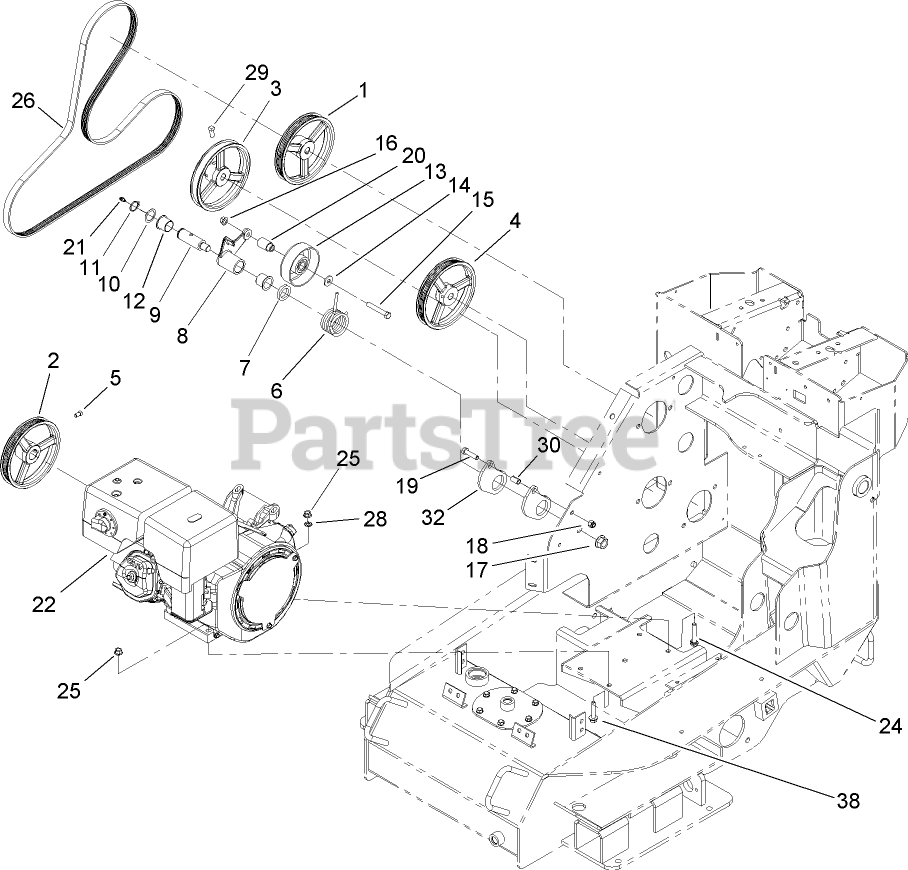

ENGINE AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8448

PULLEY

$

$

Not available

2

Toro 104-8449

PULLEY

$

$

Not available

3

Toro 104-8450

PULLEY

$

$

Not available

4

Toro 105-9046

PULLEY

$

$

Not available

5

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

6

Toro 100-4844

SPRING-TORSION
(Superseded to 115-3498)

$39.99

$

In Stock, only 1 left!

0

7

Toro 99-3625

SPACER-ARM, IDLER

$13.99

$

Usually ships in 3-6 days

0

8

Toro 99-3623-03

ARM-IDLER
(Superseded to 137-1653)

$53.99

$

Usually ships in 3-6 days

0

9

Toro 99-3624

SHAFT-PIVOT, IDLER

$97.99

$

Usually ships in 3-6 days

0

10

Toro 74-1810

WASHER

$0.99

$

In Stock, Qty 7

0

11

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

12

Toro 99-3631

BUSHING-FLANGE
(Superseded to 126-1963)

$7.49

$

In Stock, Qty 20+

0

13

Toro 95-8802

PULLEY-IDLER

$77.99

$

Usually ships in 3-6 days

0

14

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

15

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 12

0

16

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Toro 32128-54

NUT-HF

$6.49

$

Usually ships in 3-6 days

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

19

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 105-9035

SPACER-IDLER

$58.99

$

Usually ships in 3-6 days

0

21

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

22

ENGINE-HONDA, GX390K1QNE2

Note: Not serviced separately

$

$

Not available

24

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 106-9422

BELT-POLY-V

$76.99

$

Usually ships in 3-6 days

0

28

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

29

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

30

Toro 106-4501

SPACER-SCRAPER, STOP

$4.99

$

In Stock, Qty 5

0

32

Toro 106-9480

PAD-RUBBER

$

$

Not available

38

Toro 66-9302

SCREW-HHF, WHIZ

$4.99

$

Usually ships in 3-6 days

0
