22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 240000201 - 240999999) (2004) LOADER ARM HYDRAULIC ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

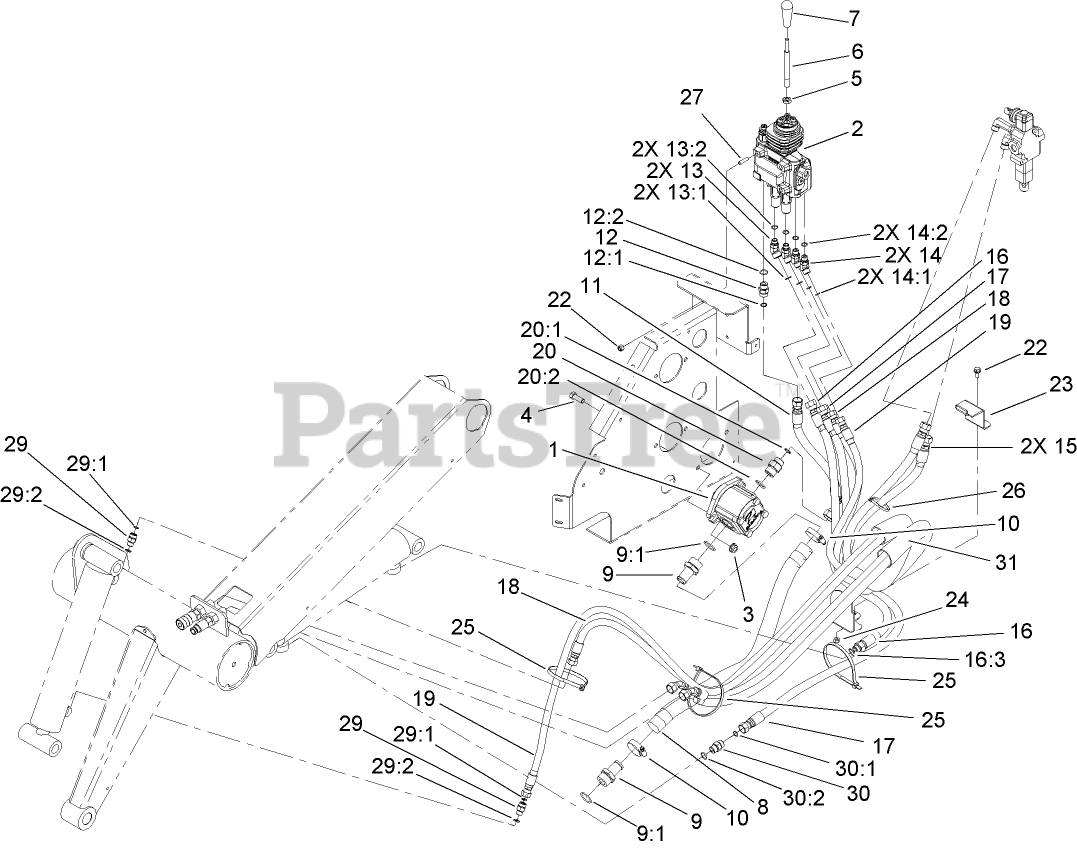

LOADER ARM HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8481

PUMP-GEAR

$1184.99

$

Usually ships in 3-6 days

0

1:1

Toro 98-4700

KEY-SQUARE

Note: Not illustrated

$15.99

$

Usually ships in 3-6 days

0

1:2

Toro 107-3550

SEAL KIT

Note: Not illustrated

$

$

Not available

2

Toro 106-9406

VALVE-LOADER

$5068.99

$

Usually ships in 3-6 days

0

3

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

4

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 51-2070

NUT

$0.99

$

In Stock, only 1 left!

0

6

Toro 95-3569

SHAFT-HANDLE, LIFT/TILT

$103.99

$

Usually ships in 3-6 days

0

7

Toro 98-0152

KNOB-TAPERED

$25.99

$

Usually ships in 3-6 days

0

8

Toro 106-9446

HOSE-HYD, SUCTION

$

$

Not available

9

Toro 354-78

FITTING-STR

$56.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

10

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

11

Toro 106-3148

HYD HOSE ASM

$

$

Not available

12

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

13

Toro 340-96

ADAPTER

$41.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Toro 340-87

FITTING-ELBOW-45

$19.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

14:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

15

Toro 106-3145

HYD HOSE ASM

$

$

Not available

16

Toro 106-3147

HYD HOSE ASM

$168.99

$

Usually ships in 3-6 days

0

16:3

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

17

Toro 107-3593

HYD HOSE ASM

$

$

Not available

18

Toro 107-3592

HYD HOSE ASM

$

$

Not available

19

Toro 107-3591

HYD HOSE ASM

$194.99

$

Usually ships in 3-6 days

0

20

Toro 340-8

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

20:2

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 107-3555-01

CLAMPHALF-HOSE

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

26

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

27

Toro 104-0430

STUD

$9.99

$

Usually ships in 3-6 days

0

29

Toro 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

29:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 15

0

29:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

30

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

30:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

30:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

31

Toro 107-3589

SLEEVE-HOSE

$22.99

$

Usually ships in 3-6 days

0
