22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 240000201 - 240999999) (2004) HOOD AND BRAKE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

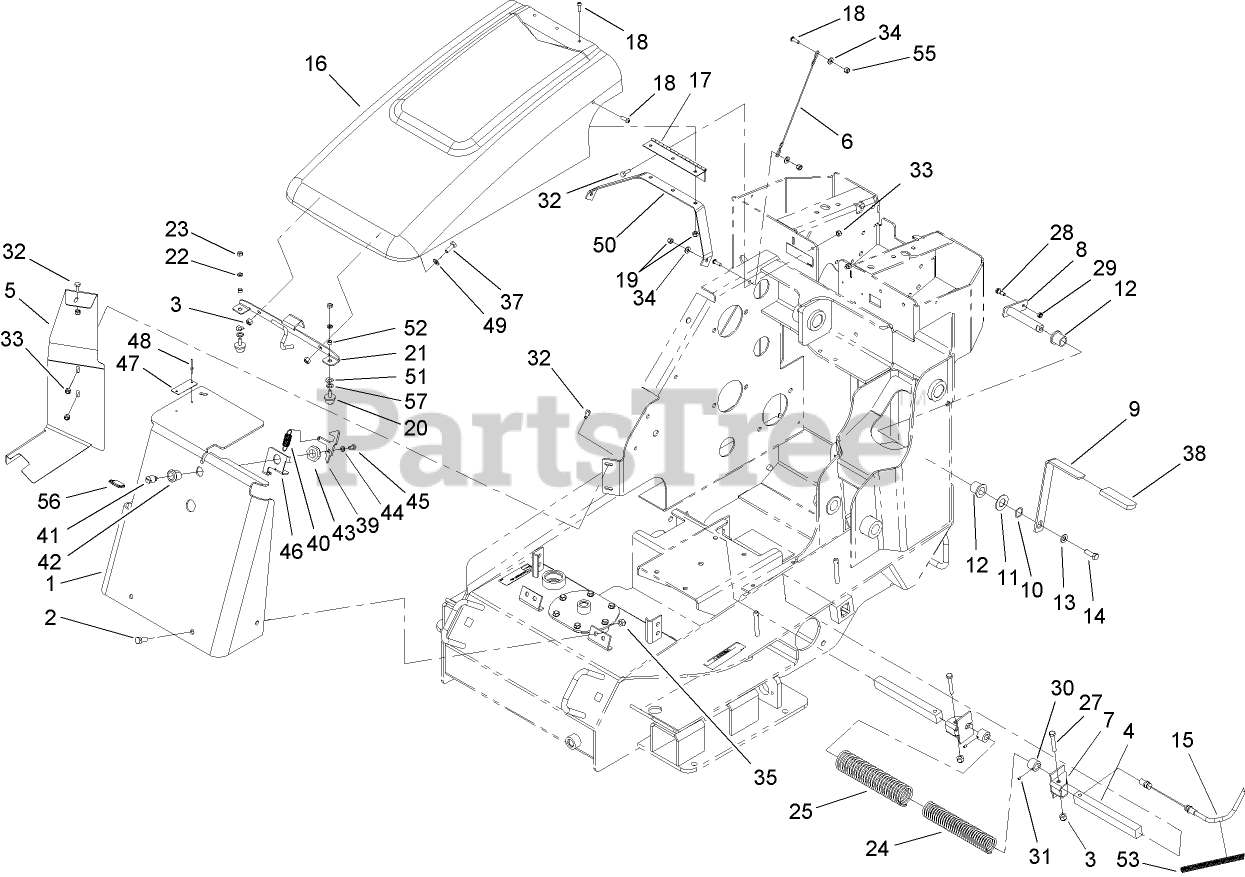

HOOD AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-9038-03

GRILLE

$

$

Not available

2

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 106-9413-03

BAR-BRAKE

$110.99

$

Usually ships in 3-6 days

0

5

Toro 105-9144-03

DEFLECTOR-EXHAUST

$174.99

$

Usually ships in 3-6 days

0

6

Toro 106-9418

LANYARD

$

$

Not available

7

Toro 106-9412-03

BRACKET-CABLE

$

$

Not available

8

Toro 106-9430

BRAKE SHAFT ASM

$

$

Not available

9

Toro 105-9140-03

HANDLE-BRAKE

$29.99

$

Usually ships in 3-6 days

0

10

Toro 95-3703

WASHER-SPRING, WAVE

$4.49

$

Usually ships in 3-6 days

0

11

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

12

Toro 256-117

BUSHING

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

14

Toro 323-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

15

Toro 106-9433

CABLE-BRAKE

$164.99

$

Usually ships in 3-6 days

0

16

Toro 106-9420

HOOD ASM

$

$

Not available

17

Toro 106-9408

HINGE-HOOD

$

$

Not available

18

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

20

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

21

Toro 106-9497-03

ROD LATCH ASM

$

$

Not available

22

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

24

Toro 105-7055

SPRING-BRAKE

$

$

Not available

25

Toro 105-7054

SPRING-BRAKE

$

$

Not available

27

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

28

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, only 3 left!

0

29

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 100-6274

Tube-Guide

$21.99

$

Usually ships in 3-6 days

0

31

Toro 3245-20

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

32

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

34

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

37

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 62-9130

GRIP-HANDLE

$7.99

$

Usually ships in 3-6 days

0

39

Toro 106-5728

CAM-LATCH

$14.99

$

Usually ships in 3-6 days

0

40

Toro 104-0869

SPRING

$13.99

$

Usually ships in 3-6 days

0

41

Toro 106-9335

HOUSING-LATCH

$66.99

$

Usually ships in 3-6 days

0

42

Toro 106-9336

INSERT-LATCH

$

$

Not available

43

Toro 3296-60

NUT-LOCK, NI

$5.49

$

In Stock, Qty 9

0

44

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

45

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

46

Toro 106-5729-03

BRACKET-LATCH
(Superseded to 106-5729)

$44.99

$

Usually ships in 3-6 days

0

47

Toro 80-9350

PLATE-HOT SURFACE

$

$

Not available

48

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

49

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Toro 106-9500-03

SUPPORT-HOOD
(Superseded to 106-9519)

$

$

Not available

51

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

52

Toro 106-9308

SPACER

$5.99

$

Usually ships in 3-6 days

0

53

Toro 100-4697

TUBE-CONVOLUTED

$9.49

$

In Stock, only 1 left!

0

55

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

56

Toro 99-8970

KEY-LATCH, HOOD

$24.99

$

Usually ships in 3-6 days

0

57

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
