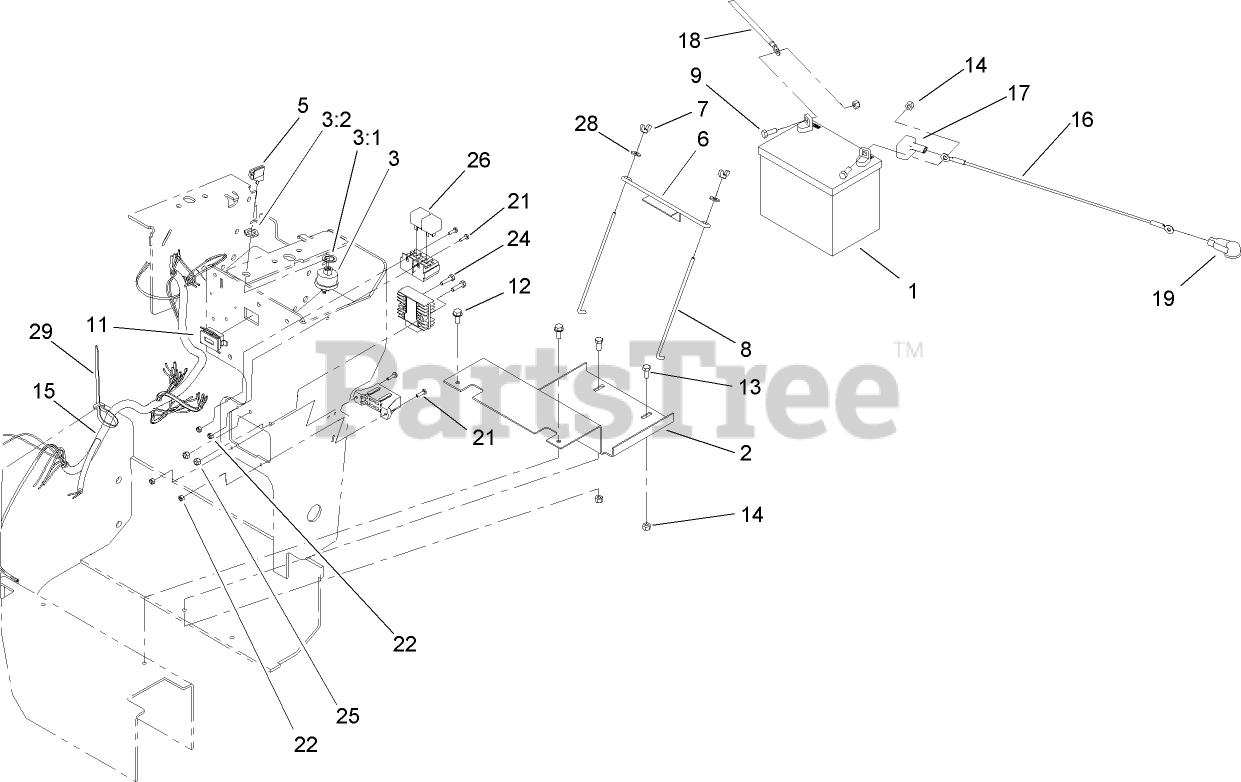

22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 240000201 - 240999999) (2004) ELECTRICAL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2492

BATTERY-DRY

$

$

Not available

2

Toro 104-8493-01

BRACKET-BATTERY

$

$

Not available

3

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 7

0

3:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

3:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

6

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 4 left!

0

7

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

8

Toro 99-5027

RETAINER-BATTERY

$13.99

$

Usually ships in 3-6 days

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 104-8143

HOURMETER

$

$

Not available

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 106-9436

HARNESS-WIRE

$

$

Not available

16

Toro 99-7404

CABLE-POSITIVE

$29.99

$

Usually ships in 3-6 days

0

17

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

18

Toro 1-413540

CABLE-BATTERY, NEGATIVE

$13.99

$

Usually ships in 3-6 days

0

19

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$7.99

$

Usually ships in 3-6 days

0

21

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

26

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

28

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
