22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 240000001 - 240000200) (2004) CONTROL ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

Dingo Compact Utility Loader

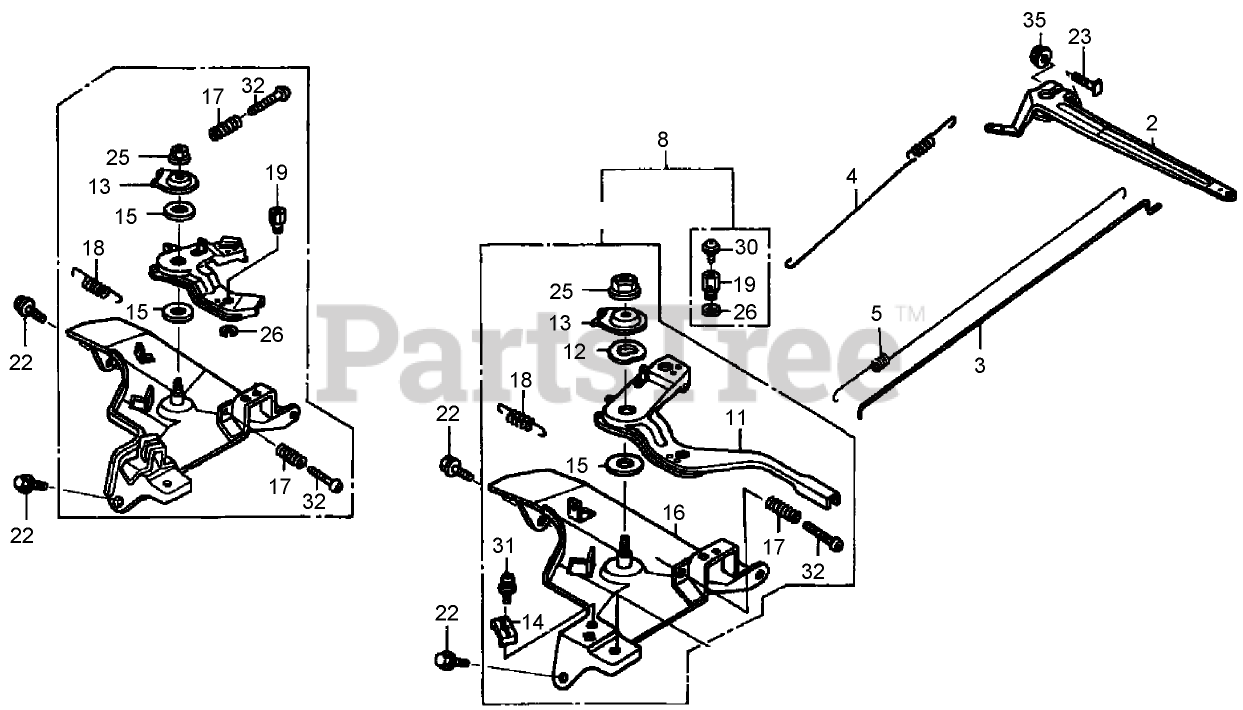

CONTROL ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

  • Title

2

Honda 16551-ZE3-000

ARM-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$17.99

$

In Stock, only 1 left!

0

3

Honda 16555-ZE3-000

ROD-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 1 left!

0

4

Honda 16561-ZE3-000

SPRING-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, only 3 left!

0

5

Honda 16562-ZE3-000

SPRING-THROTTLE RETURN

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 6

0

8

Honda 16570-ZE3-W10

CONTROL ASM (REMOTE)

Note: Obtain parts from www.honda-engines.com

$59.99

$

Usually ships in 3-6 days

0

11

Honda 16571-ZE3-W00

LEVER-CONTROL

Note: Obtain parts from www.honda-engines.com

$14.99

$

In Stock, only 1 left!

0

12

Honda 16574-ZE1-000

SPRING-LEVER

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 2 left!

0

13

Honda 16575-ZE2-W00

WASHER-CONTROL LEVER

Note: Obtain parts from www.honda-engines.com

$5.49

$

Usually ships in 3-6 days

0

14

Honda 16576-891-000

Holder-Cable

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 2 left!

0

15

Honda 16578-ZE1-000

SPACER-CONTROL LEVER

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 4 left!

0

16

Honda 16581-ZE3-W00

BASE-CONTROL

Note: Obtain parts from www.honda-engines.com

$27.99

$

In Stock, only 1 left!

0

17

Honda 16584-883-300

SPRING-ADJUSTING, CONTROL

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 9

0

18

Honda 16592-883-310

SPRING-CABLE RETURN

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

19

Honda 16594-883-010

HOLDER-WIRE

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, only 3 left!

0

22

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

23

Honda 90015-ZE5-010

BOLT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

25

Honda 90114-SA0-000

NUT-SELF-LOCK (6MM)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 20+

0

26

Honda 90605-230-000

CIRCLIP (5MM)

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 3 left!

0

30

Honda 93500-04006-0H

SCREW-PAN (4X6)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 8

0

31

Honda 93500-05016-0A

Screw-Pan (5X16)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 1 left!

0

32

Honda 93893-05016-00

SCREW-WASHER (5X16)

Note: Obtain parts from www.honda-engines.com

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93500-05032-0A

SCREW-PAN (5X32)

Note: Obtain parts from www.honda-engines.com

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0
