22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000001 - 280999999) (2008) OIL PAN AND LUBRICATION ASSEMBLY KOHLER CH730-0162 Parts Diagram

Dingo Wide Track Compact Utility Loader

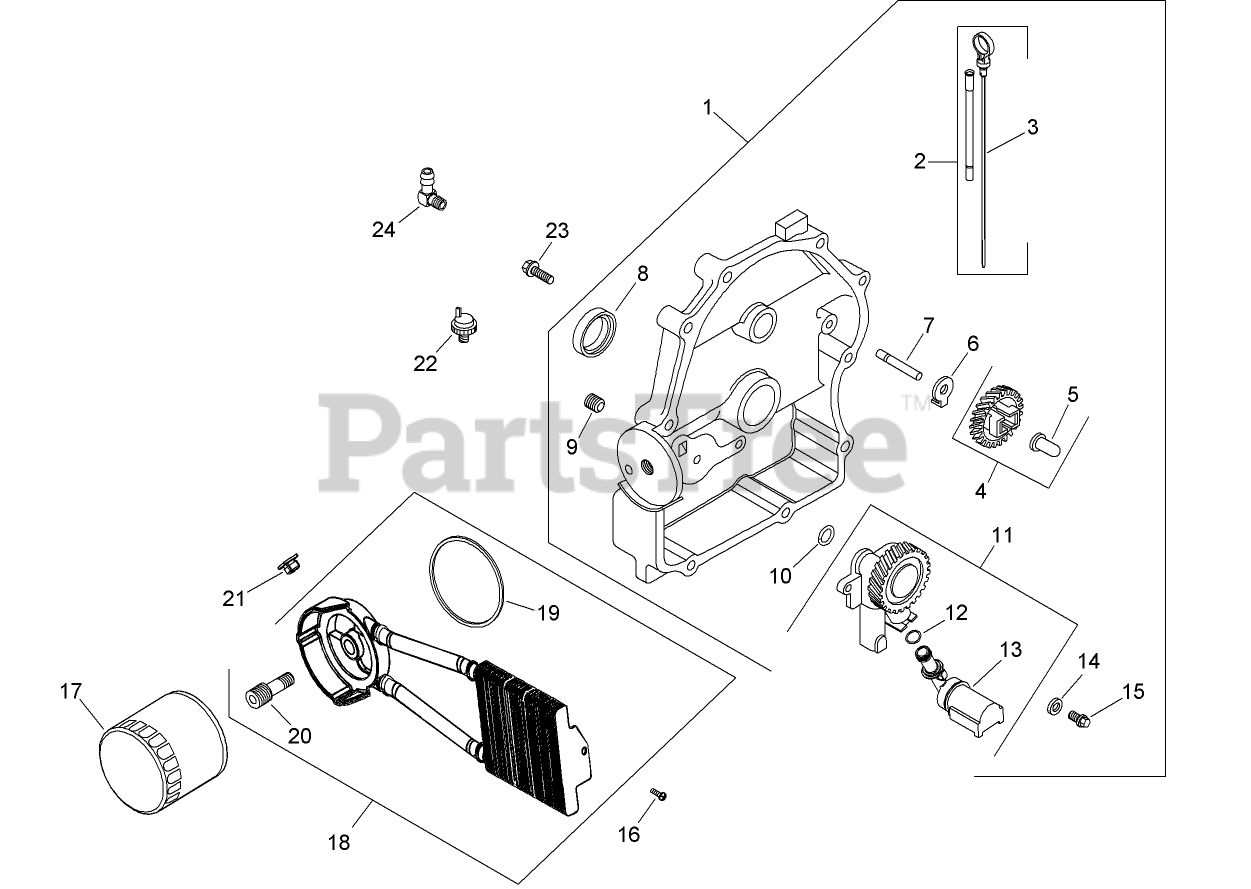

OIL PAN AND LUBRICATION ASSEMBLY KOHLER CH730-0162 Parts Diagram

  • Title

1

6600908-S

CLOSURE PLATE ASM (INCLUDES REF 2-15)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 24 755 121-S

Dipstick Tube ASM (INCLUDES REF 3)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, Qty 7

0

3

Kohler 24 038 10-S

Dipstick

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, Qty 7

0

4

Kohler 24 043 12-S

GOVERNOR GEAR KIT (INCLUDES REF 5)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, Qty 12

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

6

Kohler 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08-S

Seal-Oil (PTO End)
(Superseded to 25 032 06-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

9

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-Ring

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 1 left!

0

11

Kohler 24 393 51-S

OIL PUMP ASM (INCLUDES REF 12,13)
(Superseded to 24 393 53-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 153 01-S

O-RING (OIL PICK-UP)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 381 04-S

TUBE-PICK UP, OIL

Note: Obtain parts from www.kohlerplus.com

$34.99

$

Usually ships in 2-5 days

0

14

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

15

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

16

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

17

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, Qty 20+

0

18

Kohler 54 755 21-S

OIL COOLER KIT (METAL)

Note: Obtain parts from www.kohlerplus.com

$257.99

$

Usually ships in 2-5 days

0

19

Kohler 24 153 21-S

O-RING (OIL COOLER)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 15

0

20

Kohler 24 136 05-S

NIPPLE (OIL FILTER)
(Superseded to 24 136 10-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

Usually ships in 2-5 days

0

21

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

22

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 1 left!

0

23

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

24

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0
