22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000001 - 280999999) (2008) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH730-0162 Parts Diagram

Dingo Wide Track Compact Utility Loader

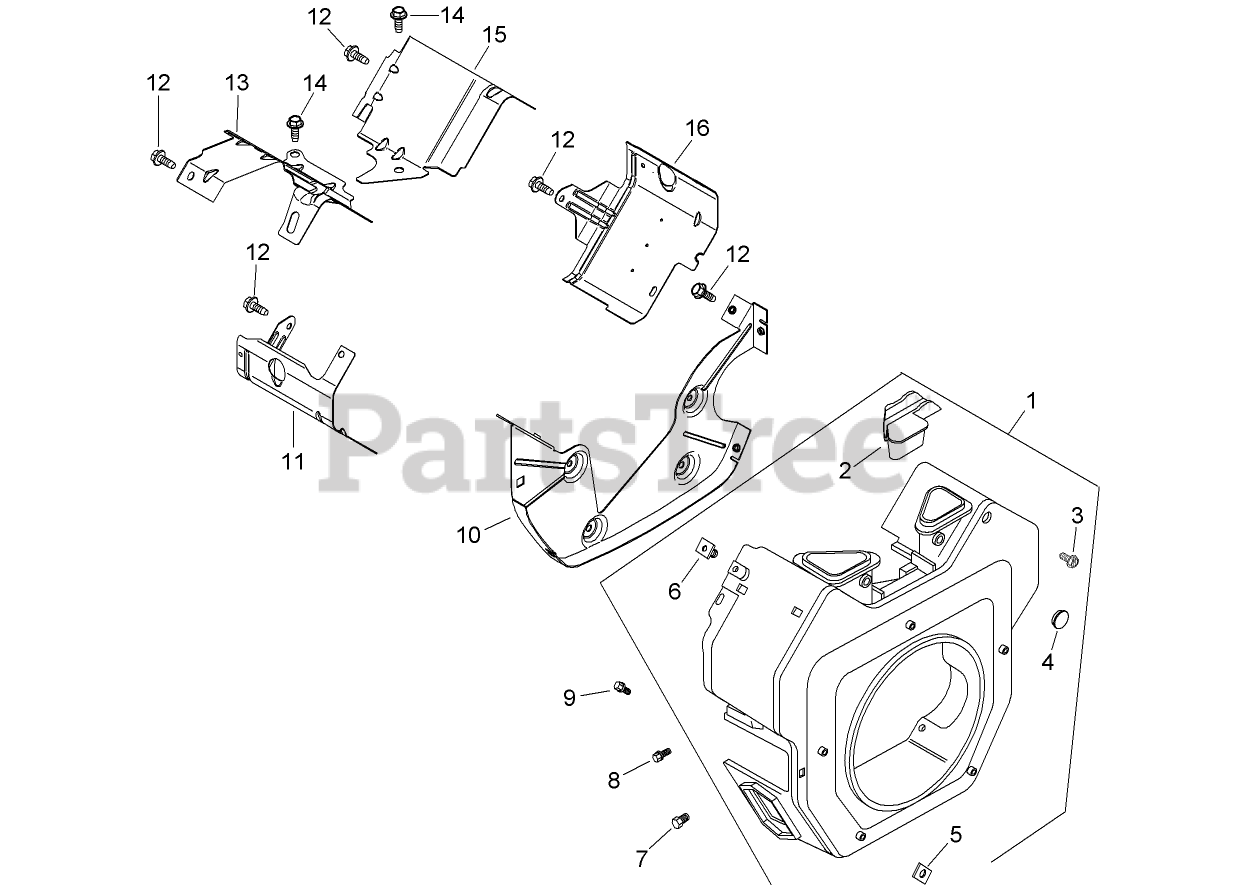

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH730-0162 Parts Diagram

  • Title

1

Kohler 24 027 195-S

BLOWER HOUSING ASM (INCLUDES 2-6 AND 41 037 10-S)
(Superseded to 24 027 491-S)

Note: Obtain parts from www.kohlerplus.com

$146.99

$

In Stock, only 1 left!

0

2

Kohler 24 096 85-S

Cover-Housing, Blower
(Superseded to 24 096 161-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

3

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

7

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

8

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

9

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

10

Kohler 24 146 53-S

PLATE-BACKING (INCLUDES 25 154 11-S)
(Superseded to 24 146 59-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 1 left!

0

11

2406376-S

BAFFLE-BARREL, CYL (NO.2 SIDE)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

13

Kohler 24 063 70-S

BAFFLE-VALLEY (No. 2 SIDE)
(Superseded to 32 063 02-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

14

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

15

Kohler 24 063 59-S

BAFFLE-VALLEY (No. 1 SIDE)
(Superseded to 32 063 03-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

16

2406381-S

BAFFLE-BARREL, CYL (NO.1 SIDE)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Not illustrated

$8.99

$

In Stock, only 4 left!

0

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, only 4 left!

0

Kohler 25 154 11-S

Clip-Repair (Speed Nut)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

Kohler 25 154 11-S

Clip-Repair (Speed Nut)

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0
