22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 280000001 - 280999999) (2008) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH730-0162 Parts Diagram

Dingo Wide Track Compact Utility Loader

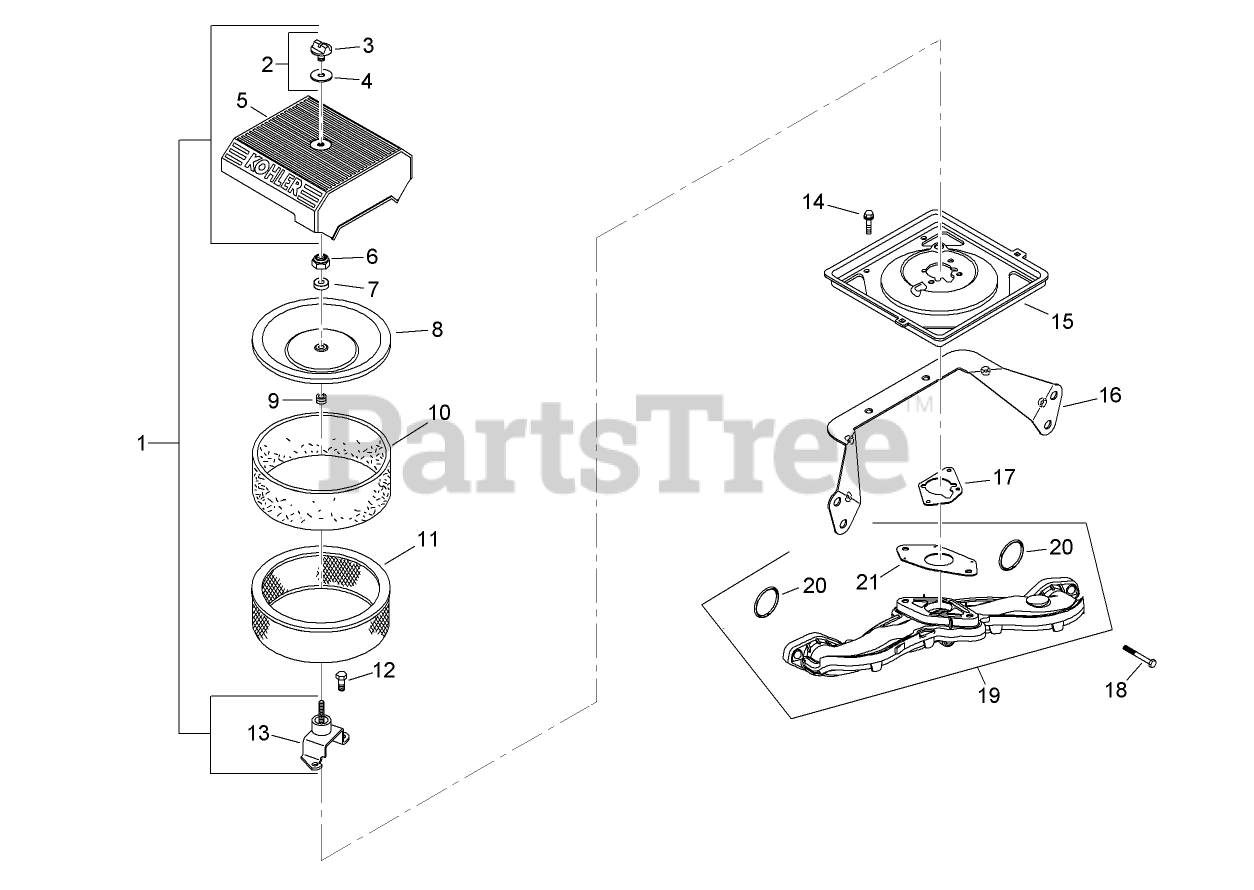

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH730-0162 Parts Diagram

1

Kohler 24 743 06-S

Air Cleaner Cover Kit (INCLUDES 2-5, 13)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

Usually ships in 2-5 days

0

2

Kohler 54 755 01-S

KNOB W/SEAL KIT

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 8

0

3

Kohler 25 341 04-S

KNOB-COVER

Note: Obtain parts from www.kohlerplus.com

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 24 153 20-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

5

Kohler 24 096 67-S

Cover-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$47.99

$

In Stock, only 1 left!

0

6

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

7

Kohler 28 112 01-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$12.99

$

Usually ships in 2-5 days

0

8

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, only 1 left!

0

9

Kohler 230046-S

Seal

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

10

Kohler 24 083 05-S

PRE-CLEANER

Note: Obtain parts from www.kohlerplus.com

$6.99

$

Usually ships in 2-5 days

0

11

Kohler 24 083 03-S

ELEMENT-FILTER, AIR

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, Qty 20+

0

12

Kohler 24 086 53-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

13

Kohler 24 126 141-S

Bracket-Base, Air Cleaner
(Superseded to 24 126 212-S)

Note: Obtain parts from www.kohlerplus.com

$47.99

$

Usually ships in 2-5 days

0

14

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

15

Kohler 24 094 37-S

BASE-CLEANER, AIR
(Superseded to 24 094 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

16

Kohler 24 126 130-S

BRACKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, only 4 left!

0

17

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 19

0

18

Kohler M-651040-S

SCREW-FLANGE (M6X1.0X40)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

19

Kohler 24 164 54-S

Intake Manifold ASM
(Superseded to 24 164 93-S)

Note: Obtain parts from www.kohlerplus.com

$184.99

$

Usually ships in 2-5 days

0

20

Kohler 24 153 27-S

O RING-PORT, INTAKE

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

21

Kohler 24 041 53-S

GASKET-CARBURETOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0
