22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 240000001 - 240000300) (2004) TRACK AND TRACTION ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

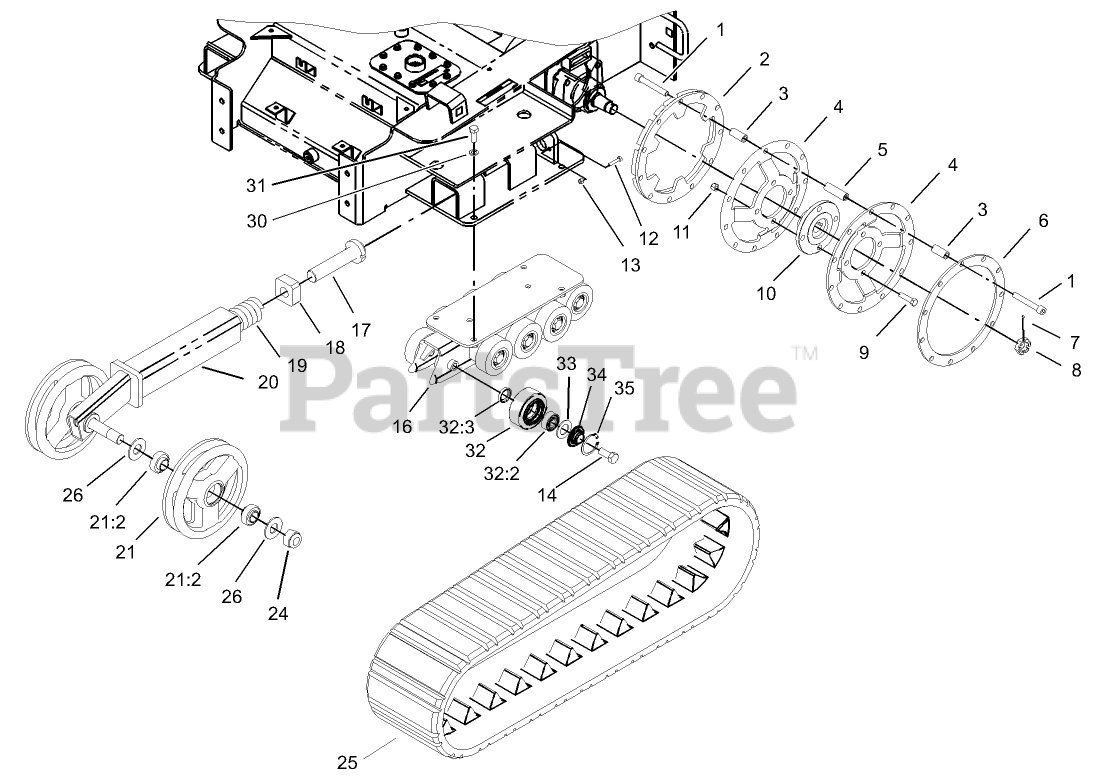

TRACK AND TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 3274-100

SCREW-HSH

$10.99

$

Usually ships in 3-6 days

0

2

Toro 106-7601-03

Brake Rim ASM,

$

$

Not available

3

Toro 100-8936

SPACER-WHEEL, DRIVE

$

$

Not available

4

Toro 100-8935-03

DRIVE WHEEL ASM

$725.99

$

Usually ships in 3-6 days

0

5

Toro 100-1286

SPACER-WHEEL, DRIVE

$38.99

$

In Stock, Qty 8

0

6

Toro 99-6170-03

RING-WHEEL, DRIVE

$129.99

$

Usually ships in 3-6 days

0

7

Toro 99-3171

PIN-COTTER

$2.49

$

Usually ships in 3-6 days

0

8

$16.99

$

In Stock, only 2 left!

0

9

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

10

Toro 104-5719-03

HUB-WHEEL, DRIVE

$

$

Not available

11

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

14

Toro 327-4

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

16

Toro 106-7596-03

Track Guide ASM

$

$

Not available

17

Toro 98-9846

BOLT-TENSIONER

$442.99

$

Usually ships in 3-6 days

0

18

Toro 95-3626

BLOCK-TENSIONER

$284.99

$

Usually ships in 3-6 days

0

19

Toro 95-3624

SPRING-COMPRESSION

$186.99

$

In Stock, only 1 left!

0

20

Toro 104-6127-03

TENSIONER ARM ASM
(Superseded to 108-5631)

$745.99

$

Usually ships in 3-6 days

0

21

Toro 104-6123

Tensioner Wheel ASM
(Superseded to 138-0783)

$540.99

$

Usually ships in 3-6 days

0

21:2

Toro 104-6129

Bearing-Ball

$142.99

$

In Stock, only 2 left!

0

24

Toro 104-2024

NUT-HEX, NI

$20.99

$

In Stock, only 2 left!

0

25

Toro 100-8931

TRACK
(Superseded to 136-5848)

$1279.99

$

Usually ships in 3-6 days

0

26

Toro 104-6126

Washer-Flat

$4.49

$

In Stock, only 2 left!

0

30

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

31

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

32

Toro 106-7621

Road Wheel ASM
(Superseded to 138-0782)

$95.99

$

In Stock, only 2 left!

0

32:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, only 2 left!

0

32:3

Toro 253-118

SEAL-OIL

$19.99

$

In Stock, Qty 20+

0

33

Toro 106-7585

Gasket-Bogie

$2.49

$

In Stock, Qty 20+

0

34

Toro 106-7557

CAP-WHEEL, BEARING

$5.49

$

In Stock, Qty 12

0

35

Toro 106-7595

RING-SNAP, INTERNAL

$5.49

$

In Stock, Qty 7

0
