22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 230000301 - 230000600) (2003) PRINCIPAL HYDRAULIC ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

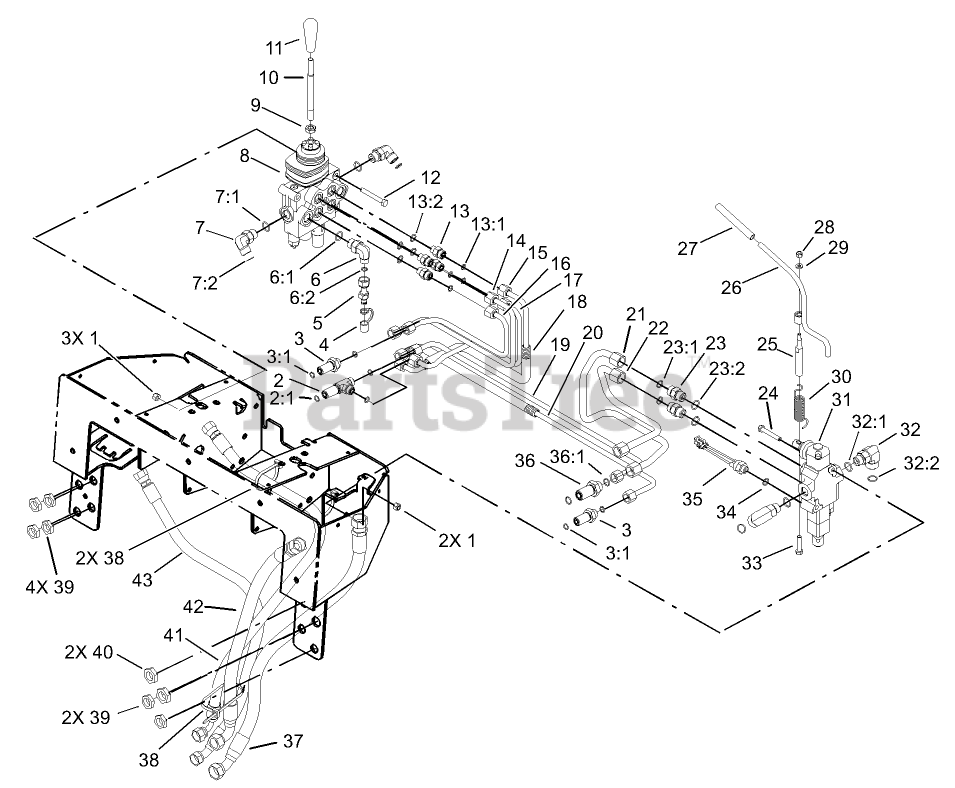

PRINCIPAL HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 340-68

FITTING-TEE, BULKHEAD

$52.99

$

In Stock, only 2 left!

0

2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

3

Toro 340-71

FITTING-STRAIGHT, BULKHEAD

$22.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

4

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

5

Toro 86-5480

NIPPLE-TEST

$79.99

$

Usually ships in 3-6 days

0

6

Toro 340-18

FITTING-HYD, 90 DEG

$41.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

6:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

7

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

7:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

8

Toro 95-3536

VALVE-2 SPOOL

$3867.99

$

Usually ships in 3-6 days

0

9

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

0

10

Toro 95-3569

SHAFT-HANDLE, LIFT/TILT

$105.99

$

Usually ships in 3-6 days

0

11

Toro 98-0152

KNOB-TAPERED

$26.99

$

Usually ships in 3-6 days

0

12

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

13

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

13:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

13:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Toro 98-2788

HYD TUBE ASM

$

$

Not available

15

Toro 98-2784

HYD TUBE ASM

$

$

Not available

16

Toro 98-2789

HYD TUBE ASM

$

$

Not available

17

Toro 98-2785

HYD TUBE ASM

$

$

Not available

18

Toro 100-1287

CONDUIT-CONVOLUTED

$

$

Not available

19

Toro 98-2787

HYD TUBE ASM

$

$

Not available

20

Toro 98-2786

HYD TUBE ASM

$

$

Not available

21

Toro 98-2790

HYD TUBE ASM

$

$

Not available

22

Toro 98-2791

HYD TUBE ASM

$

$

Not available

23

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

23:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

23:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

24

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

25

Toro 104-2827

SPACER-HIFLO

$164.99

$

Usually ships in 3-6 days

0

26

Toro 100-4246

AUXILIARY LEVER ASM

$

$

Not available

27

Toro 92-6798

CAP-ROD, TILT

$4.99

$

In Stock, only 2 left!

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

29

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

30

Toro 100-6129

SPRING-TORSION

$27.99

$

Usually ships in 3-6 days

0

31

Toro 104-2831

1 SPOOL VALVE ASM

$1748.99

$

Usually ships in 3-6 days

0

32

Toro 340-153

Fitting-Elbow, 90 DEG

$105.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

32:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

33

Toro 48-7740

SCREW
(Superseded to 33114-035)

$5.49

$

In Stock, only 1 left!

0

34

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

35

Toro 72-4310

SWITCH-BALL

$102.99

$

Usually ships in 3-6 days

0

36

Toro 340-161

FITTING-BULKHEAD

$117.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

37

Toro 104-5708

HYD Tube ASM

$

$

Not available

39

Toro 340-70

NUT-LOCK

$2.99

$

In Stock, only 1 left!

0

40

Toro 340-127

NUT-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

41

Toro 104-5709

HYD Tube ASM

$

$

Not available

42

Toro 104-5707

TUBE-HYD

$145.99

$

Usually ships in 3-6 days

0

43

Toro 104-5710

HYD Tube ASM

$

$

Not available
