22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 220000001 - 220000400) (2002) LOADER ARM HYDRAULIC ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

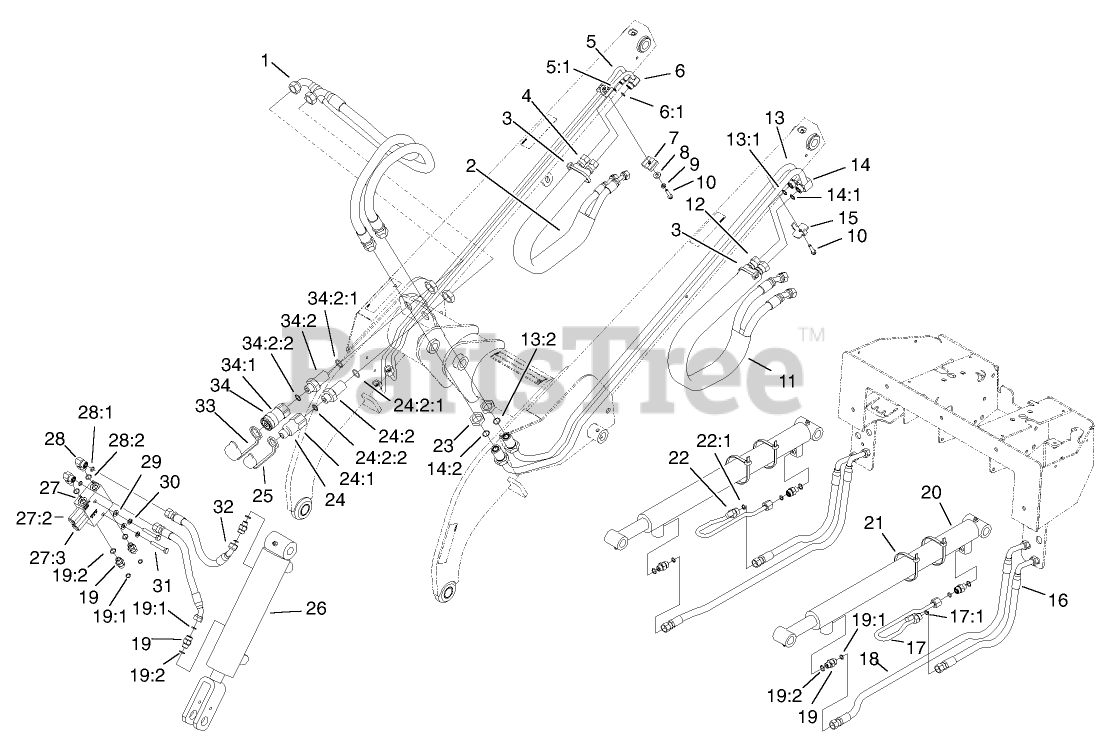

LOADER ARM HYDRAULIC ASSEMBLY Parts Diagram

  • Title
1

Toro 99-6193

HOSE ASM

$195.99

$

Usually ships in 3-6 days

0

2

Toro 100-6127

SLEEVE-PROTECTIVE

$46.99

$

In Stock, only 2 left!

0

3

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

4

Toro 98-0213

HOSE-HYD

$152.99

$

In Stock, only 1 left!

0

5

Toro 104-9965

HYD TUBE ASM

$188.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

6

Toro 104-9964

HYD TUBE ASM

$188.99

$

In Stock, only 1 left!

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

7

Toro 56-7973

CLAMP-TUBE

$18.99

$

In Stock, only 1 left!

0

8

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

11

Toro 100-6128

SLEEVE-PROTECTIVE

$46.99

$

Usually ships in 3-6 days

0

12

Toro 98-0242

HOSE-HYD

$150.99

$

Usually ships in 3-6 days

0

13

Toro 104-9962

HYD TUBE ASM

$

$

Not available

13:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

13:2

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

14

Toro 104-9963

HYD TUBE ASM

$251.99

$

In Stock, only 1 left!

0

14:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

14:2

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

15

Toro 98-0237-03

PLATE-CLAMP, TUBE
(Superseded to 98-0237)

$139.99

$

Usually ships in 3-6 days

0

16

Toro 98-0216

HOSE-HYD

$288.99

$

In Stock, only 2 left!

0

17

Toro 100-1259

HYD TUBE ASM

$

$

Not available

17:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

18

Toro 98-0217

HYD HOSE ASM

$

$

Not available

19

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

19:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Toro 99-6162

CYLINDER-LIFT

$1145.99

$

Usually ships in 3-6 days

0

21

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Toro 100-1258

HYD TUBE ASM

$

$

Not available

22:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

23

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

0

24

Toro 100-4748

BULKHEAD NIPPLE ASM
(Superseded to 105-8395)

$248.99

$

Usually ships in 3-6 days

0

24:1

Toro 96-1276

NIPPLE-FACE, FLUSH

$134.99

$

Usually ships in 3-6 days

0

24:2

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

24:2:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

24:2:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

25

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

Usually ships in 3-6 days

0

26

Toro 95-3578

CYLINDER-TILT
(Superseded to 139-0778)

$1201.99

$

Usually ships in 3-6 days

0

27

Toro 100-4205

VALVE-RELIEF, CROSSOVER

$1100.99

$

Usually ships in 3-6 days

0

27:2

Toro 100-4220

CARTRIDGE-RELIEF

$347.99

$

Usually ships in 3-6 days

0

27:3

Toro 100-4221

CARTRIDGE-RELIEF

$347.99

$

Usually ships in 3-6 days

0

27:1

Toro 100-4219

SEAL KIT

$131.99

$

Usually ships in 3-6 days

0

28

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

28:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 98-0207

HOSE-HYD

$170.99

$

Usually ships in 3-6 days

0

33

Toro 100-8816

CAP-DUST, COUPLER

$15.99

$

Usually ships in 3-6 days

0

34

Toro 100-4747

BULKHEAD COUPLER ASM
(Superseded to 105-8394)

$301.99

$

Usually ships in 3-6 days

0

34:1

Toro 96-1275

COUPLER-FACE, FLUSH

$205.99

$

Usually ships in 3-6 days

0

34:2

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

34:2:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

34:2:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0
