22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 220000001 - 220000400) (2002) IGNITION/ELECTRICAL ASSEMBLY KOHLER ENGINE CH25S PS-68688 Parts Diagram

Dingo Wide Track Compact Utility Loader

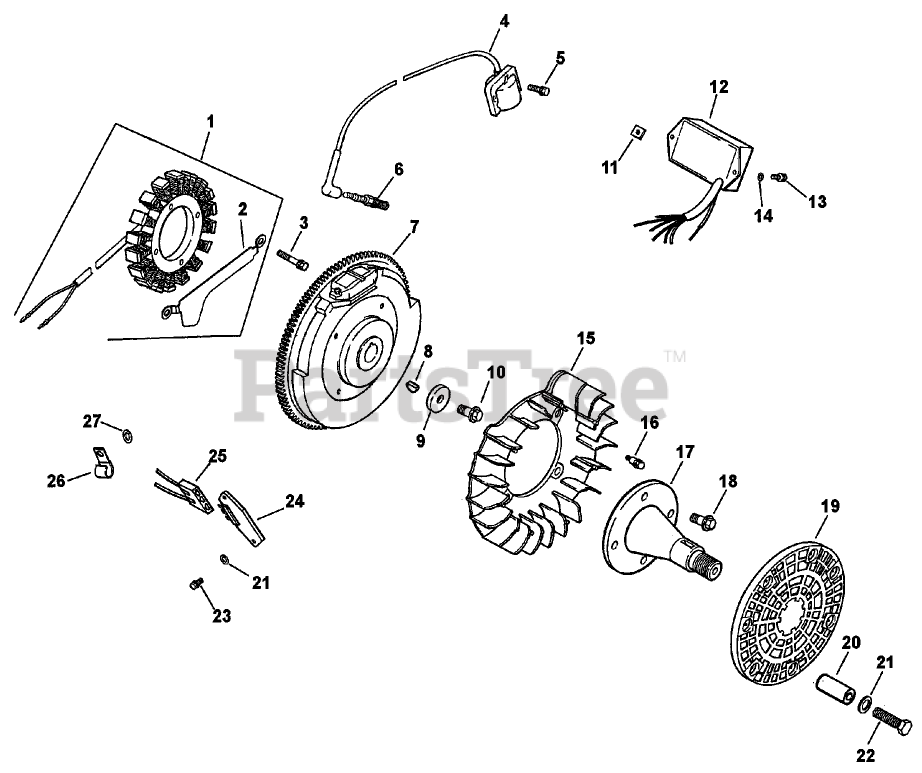

IGNITION/ELECTRICAL ASSEMBLY KOHLER ENGINE CH25S PS-68688 Parts Diagram

  • Title

1

Kohler 54 755 09-S

Kit-Stator, 15 Amp (Includes 2)
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 8

0

2

Kohler 24 126 71-S

Bracket-Wire, Stator
(Superseded to 24 126 139-S)

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 584 15-S

Module-Ignition
(Superseded to 24 584 36-S)

$102.99

$

In Stock, only 1 left!

0

5

Kohler M-561025-S

Screw-Socket, Hex (M5x0.8x25)

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

$20.99

$

Usually ships in 2-5 days

0

7

Kohler 24 025 14-S

Flywheel
(Superseded to 24 025 57-S)

$372.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY (3/16 X 5/8)

$2.99

$

In Stock, Qty 6

0

9

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

10

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

11

Kohler 24 100 02-S

NUT-PLASTIC

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 584 09-S

Module-Advance, Speed

$

$

Not available

13

Kohler 24 086 41-S

SCREW-PPH (11-16X1/2)

$2.99

$

In Stock, only 2 left!

0

14

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

$2.49

$

In Stock, only 3 left!

0

15

Kohler 24 157 03-S

Fan
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 4 left!

0

16

Kohler 25 086 47-S

BOLT-SHOULDER (M6x1.0x16)

$2.49

$

In Stock, Qty 7

0

17

Kohler 24 144 13-S

Shaft-Drive, Front

$135.99

$

Usually ships in 2-5 days

0

18

Kohler M-839025-S

Screw-HF (M8x1.25x25)

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 24 162 18-S

Screen-Grass
(Superseded to 24 162 45-S)

$21.99

$

Usually ships in 2-5 days

0

20

Kohler 24 112 04-S

Spacer

$

$

Not available

21

Kohler X-25-92-S

WASHER-FLAT (.188)

$2.49

$

In Stock, only 2 left!

0

22

Kohler M-403025-S

SCREW-SLOTTED HEAD (M4X0.7X25)

$4.99

$

In Stock, only 1 left!

0

23

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 25 403 03-S

Rectifier-Regulator, 15 amp
(Superseded to 41 403 09-S)

$

$

Not available

25

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

26

Kohler 47 154 01-S

CLIP-CABLE

$5.49

$

In Stock, only 4 left!

0

27

Kohler X-25-63-S

WASHER-FLAT (1/4)

$2.49

$

In Stock, only 3 left!

0

Kohler 24 176 42-S

Harness-Wiring
(Superseded to 24 176 234-S)

$102.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

$4.99

$

Usually ships in 2-5 days

0

Kohler 25 454 03-S

TIE-WIRE

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

$3.49

$

Usually ships in 2-5 days

0
