22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 220000001 - 220000400) (2002) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER ENGINE CH25S PS-68688 Parts Diagram

Dingo Wide Track Compact Utility Loader

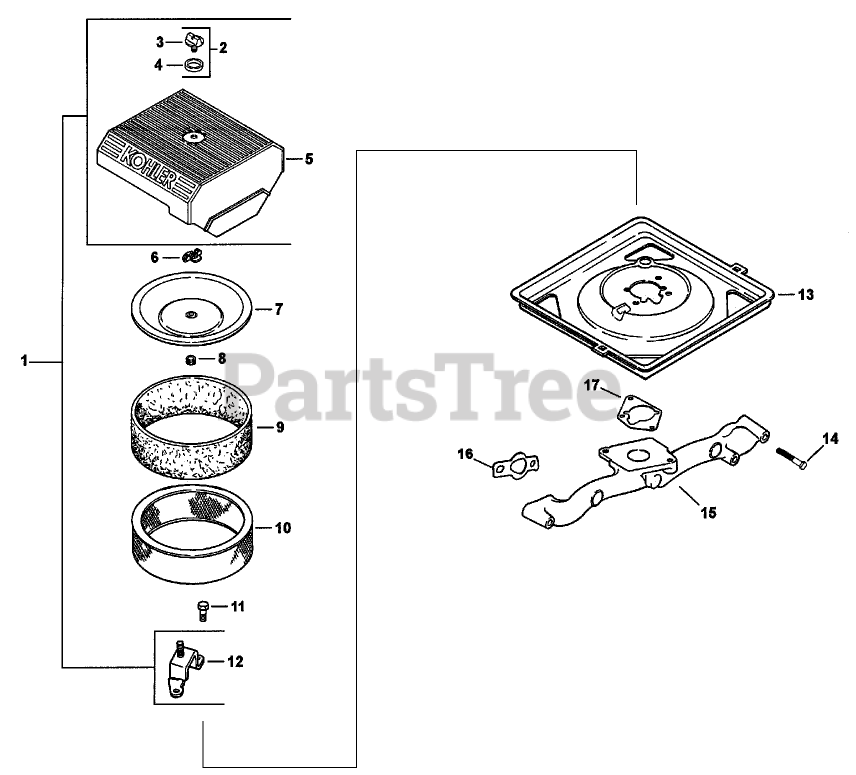

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER ENGINE CH25S PS-68688 Parts Diagram

  • Title

1

Kohler 24 743 05-S

Kit-Cover, Air Cleaner (Includes 2-4, 12)

$90.99

$

In Stock, only 1 left!

0

2

Kohler 54 755 01-S

Kit-Knob w/seal (Includes 3, 4)

$9.49

$

In Stock, only 4 left!

0

3

Kohler 25 341 03-S

Knob-Cover
(Superseded to 25 341 04-S)

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 24 153 20-S

O-RING

$2.49

$

In Stock, Qty 10

0

5

Kohler 24 096 67-S

Cover-Cleaner, Air

$47.99

$

In Stock, only 1 left!

0

6

Kohler 12 100 01-S

NUT-WING

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

$16.99

$

In Stock, only 1 left!

0

8

Kohler 230046-S

Seal

$6.49

$

In Stock, only 1 left!

0

9

Kohler 24 083 05-S

PRE-CLEANER

$6.99

$

In Stock, only 4 left!

0

10

Kohler 24 083 03-S

ELEMENT-FILTER, AIR

$23.99

$

Usually ships in 2-5 days

0

11

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

12

Kohler 24 126 88-S

BRACKET-CLEANER, AIR
(Superseded to 24 126 226-S)

$13.99

$

In Stock, only 2 left!

0

13

Kohler 24 094 11-S

Base, air cleaner
(Superseded to 24 094 52-S)

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 164 14-S

Manifold-Intake

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

$2.99

$

In Stock, Qty 20+

0
