22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 250000401 - 250999999) (2005) PARKING BRAKE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

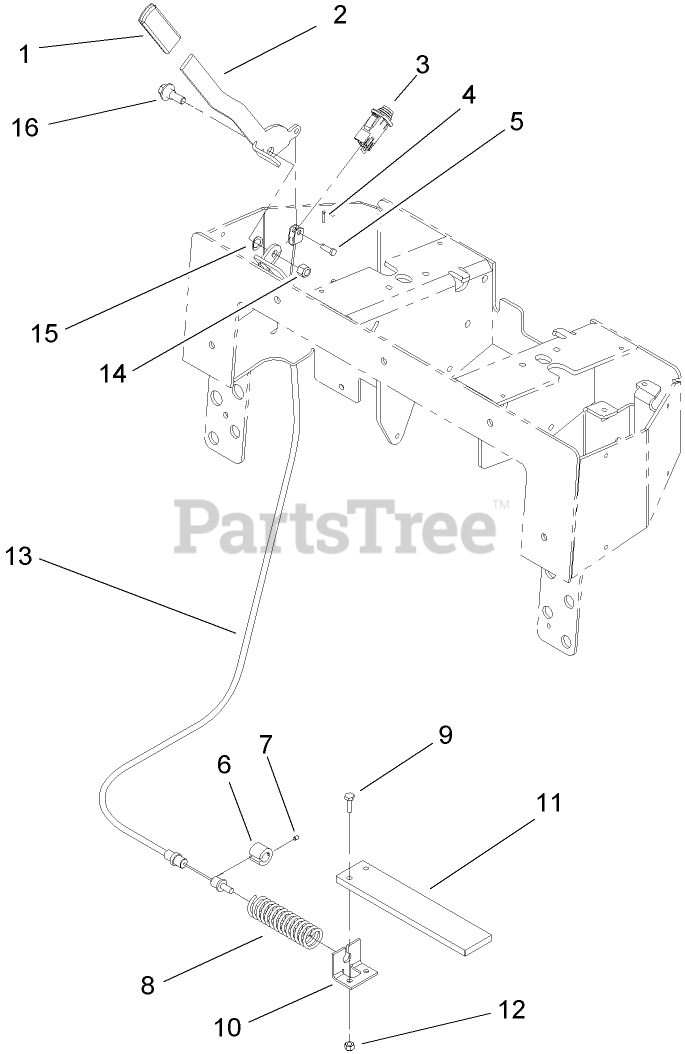

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-9130

GRIP-HANDLE

$7.99

$

Usually ships in 3-6 days

0

2

Toro 106-9370-03

HANDLE-BRAKE

$80.99

$

Usually ships in 3-6 days

0

3

Toro 108-4653

SWITCH-PLUNGER

$60.99

$

Usually ships in 3-6 days

0

4

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

5

Toro 283-67

PIN-CLEVIS

$2.99

$

In Stock, only 1 left!

0

6

Toro 100-6274

Tube-Guide

$21.99

$

Usually ships in 3-6 days

0

7

Toro 3245-20

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 100-1678

SPRING
(Superseded to 100-1678-03)

$39.99

$

Usually ships in 3-6 days

0

9

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 106-9395-03

BRACKET-MOUNTING, BRAKE

$38.99

$

Usually ships in 3-6 days

0

11

Toro 106-9379-03

PLATE-BRAKE

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 106-9394

CABLE-BRAKE

$

$

Not available

14

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

15

Toro 3290-221

WASHER-SPRING

$4.49

$

In Stock, Qty 6

0

16

Toro 93-2364

BOLT-SHOULDER

$3.49

$

Usually ships in 3-6 days

0
