22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 250000401 - 250999999) (2005) HYDRAULIC PUMP AND FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

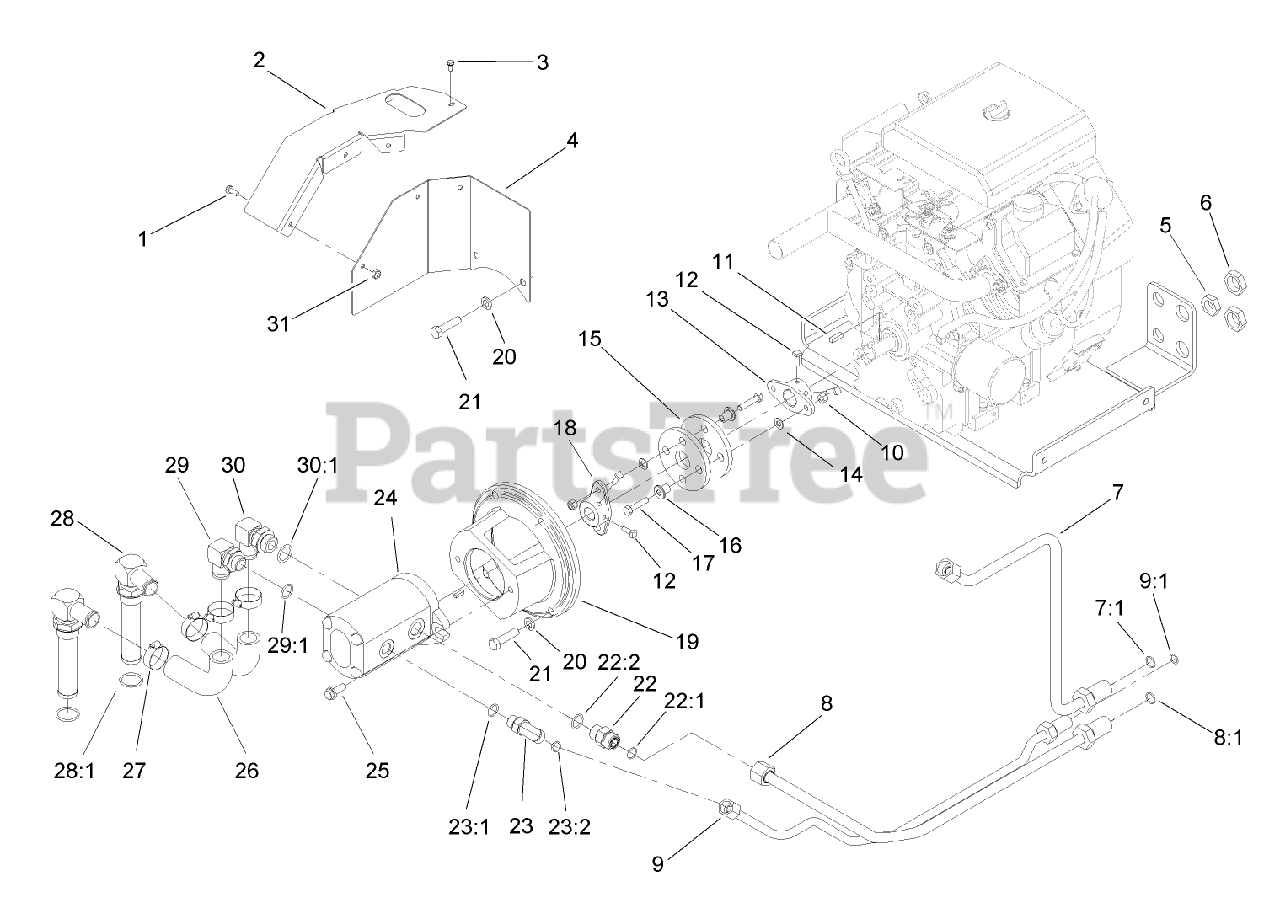

HYDRAULIC PUMP AND FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

2

Toro 104-9960

SHIELD-HEAT

$94.99

$

Usually ships in 3-6 days

0

3

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 106-9361

SHIELD-HEAT

$53.99

$

Usually ships in 3-6 days

0

5

Toro 340-127

NUT-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

6

Toro 340-74

NUT-LOCK, BULKHEAD

$5.49

$

Usually ships in 3-6 days

0

7

Toro 106-9333

HYD TUBE ASM

$239.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

8

Toro 98-2783

HYD TUBE ASM

$170.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

9

Toro 106-9393

HYD TUBE ASM

$186.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 8

0

12

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

0

13

Toro 27-1960

HUB-ENGINE
(Superseded to 110-5236)

$37.99

$

In Stock, only 1 left!

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

16

Toro 71-4411

SPACER

$2.99

$

In Stock, Qty 7

0

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 49-9600

HUB-PUMP
(Superseded to 110-9695)

$66.99

$

In Stock, only 3 left!

0

19

Toro 98-2751-03

MOUNT-PUMP

$251.99

$

Usually ships in 3-6 days

0

20

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

22

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

22:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

22:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

23

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

23:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

23:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

24

Toro 106-7650

HYD PUMP ASM

$2166.99

$

Usually ships in 3-6 days

0

25

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

26

Toro 105-0201

HOSE-SUCTION, FORMED

$205.99

$

Usually ships in 3-6 days

0

27

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 4 left!

0

28

Toro 105-0204

STRAINER FITTING ASM

$546.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

29

Toro 61-2710

STEM-HOSE, 90 DEG

$105.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-117

O-RING

$8.99

$

Usually ships in 3-6 days

0

30

Toro 100-4202

FITTING-HYD, 90 DEG

$116.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

31

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0
