22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 240000001 - 240000300) (2004) TRACK AND TRACTION ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

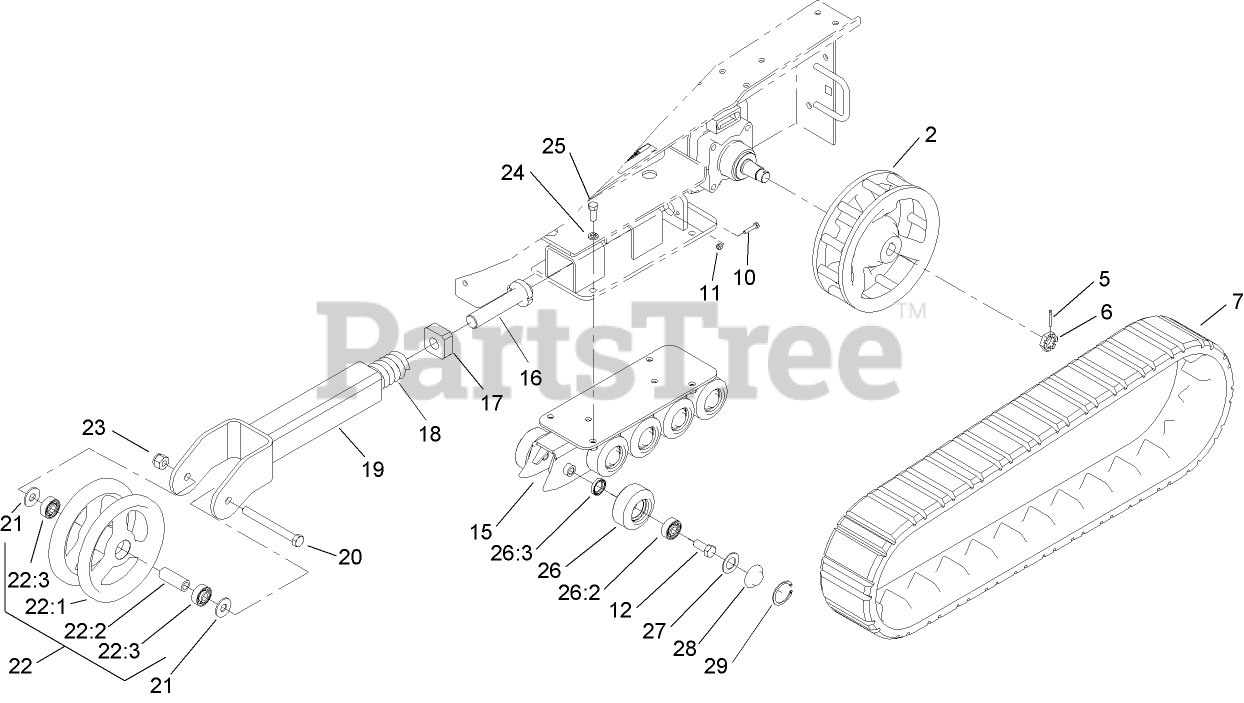

TRACK AND TRACTION ASSEMBLY Parts Diagram

  • Title
2

Toro 104-6121-03

WHEEL-DRIVE, TX 420
(Superseded to 133-9417-03)

$700.99

$

In Stock, only 1 left!

0

5

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

6

$16.99

$

In Stock, only 2 left!

0

7

Toro 98-9800

TRACK
(Superseded to 136-5847)

$1088.99

$

In Stock, only 1 left!

0

10

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 105-5803-03

TRACK GUIDE ASM

$

$

Not available

16

Toro 98-9846

BOLT-TENSIONER

$442.99

$

Usually ships in 3-6 days

0

17

Toro 95-3626

BLOCK-TENSIONER

$284.99

$

Usually ships in 3-6 days

0

18

Toro 95-3624

SPRING-COMPRESSION

$186.99

$

In Stock, only 1 left!

0

19

Toro 98-9801-03

TENSIONER ARM ASM
(Superseded to 108-5630)

$692.99

$

Usually ships in 3-6 days

0

20

Toro 327-17

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

21

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Toro 104-5745

TENSIONER WHEEL ASM

$727.99

$

Usually ships in 3-6 days

0

22:1

Toro 104-5747-03

WHEEL-TENSIONER

$619.99

$

Usually ships in 3-6 days

0

22:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$17.99

$

In Stock, only 2 left!

0

22:3

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, Qty 15

0

23

Toro 3296-24

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

24

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

25

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

26

Toro 106-7621

Road Wheel ASM
(Superseded to 138-0782)

$95.99

$

In Stock, only 1 left!

0

26:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, Qty 15

0

26:3

Toro 253-118

SEAL-OIL

$19.99

$

In Stock, Qty 20+

0

27

Toro 106-7585

Gasket-Bogie

$2.49

$

In Stock, Qty 20+

0

28

Toro 106-7557

CAP-WHEEL, BEARING

$5.49

$

In Stock, Qty 8

0

29

Toro 106-7595

RING-SNAP, INTERNAL

$5.49

$

In Stock, only 3 left!

0
