22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000601 - 230999999) (2003) HYDRAULIC PUMP ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

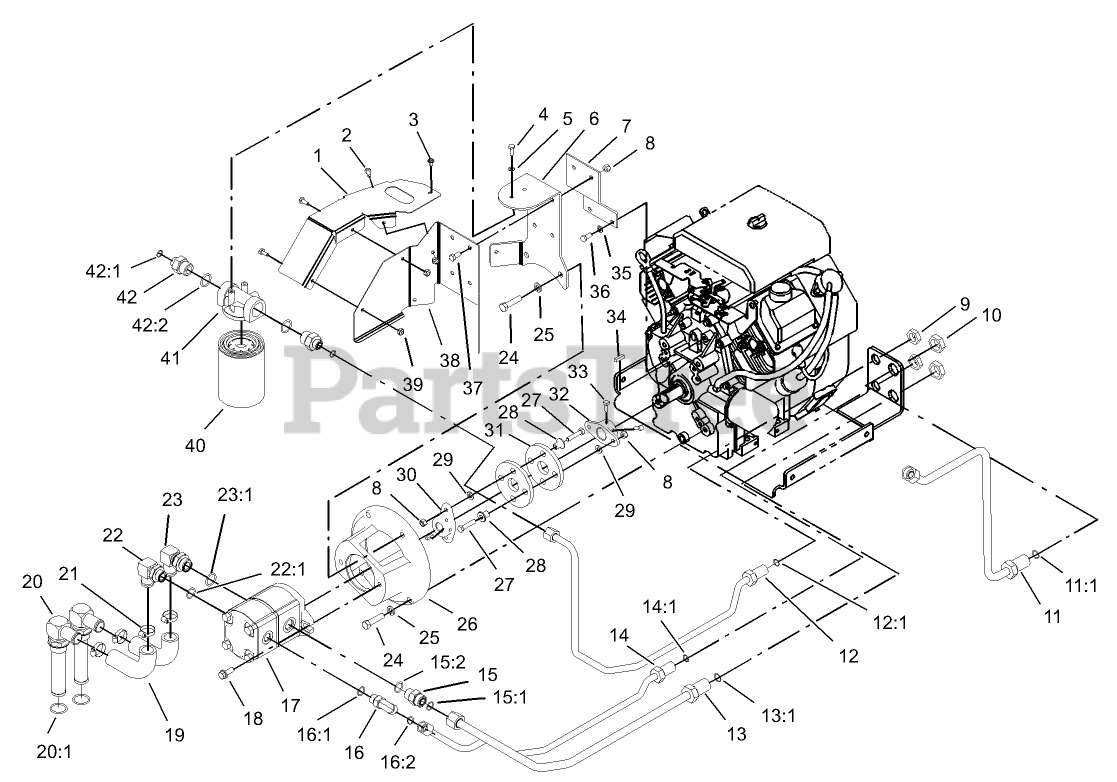

HYDRAULIC PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 104-9960

SHIELD-HEAT

$94.99

$

Usually ships in 3-6 days

0

2

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 99-6172-03

BRACKET-SUPPORT, OIL FILTER

$

$

Not available

7

Toro 99-6171-03

BRACKET-SUPPORT, OIL FILTER

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

10

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

0

11

Toro 104-5705

HYD TUBE ASM

$

$

Not available

11:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

12

Toro 98-2780

HYD TUBE ASM

$

$

Not available

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

13

Toro 98-2783

HYD TUBE ASM

$170.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

14

Toro 98-2781

HYD TUBE ASM

$

$

Not available

14:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

15

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

15:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

15:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

16

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

16:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

16:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

17

Toro 98-2752

PUMP-GEAR, HYD

$

$

Not available

18

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

19

Toro 105-0201

HOSE-SUCTION, FORMED

$205.99

$

Usually ships in 3-6 days

0

20

Toro 105-0204

STRAINER FITTING ASM

$546.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

21

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

22

Toro 61-2710

STEM-HOSE, 90 DEG

$105.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-117

O-RING

$8.99

$

Usually ships in 3-6 days

0

23

Toro 100-4202

FITTING-HYD, 90 DEG

$116.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

24

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

25

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 98-2751

Mount-Pump
(Superseded to 98-2751-03)

$251.99

$

Usually ships in 3-6 days

0

27

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 71-4411

SPACER

$2.99

$

In Stock, only 3 left!

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 49-9600

HUB-PUMP
(Superseded to 110-9695)

$66.99

$

In Stock, only 3 left!

0

31

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

32

Toro 27-1960

HUB-ENGINE
(Superseded to 110-5236)

$37.99

$

In Stock, only 2 left!

0

33

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

0

34

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

35

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

37

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 100-6114

SHIELD-HEAT, FILTER

$

$

Not available

39

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

40

Toro 86-3010

FILTER-OIL

$23.99

$

In Stock, Qty 11

0

41

Toro 92-5821

HEAD-FILTER

$199.99

$

Usually ships in 3-6 days

0

42

Toro 100-4240

FITTING-STR

$22.99

$

Usually ships in 3-6 days

0

42:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

42:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0
